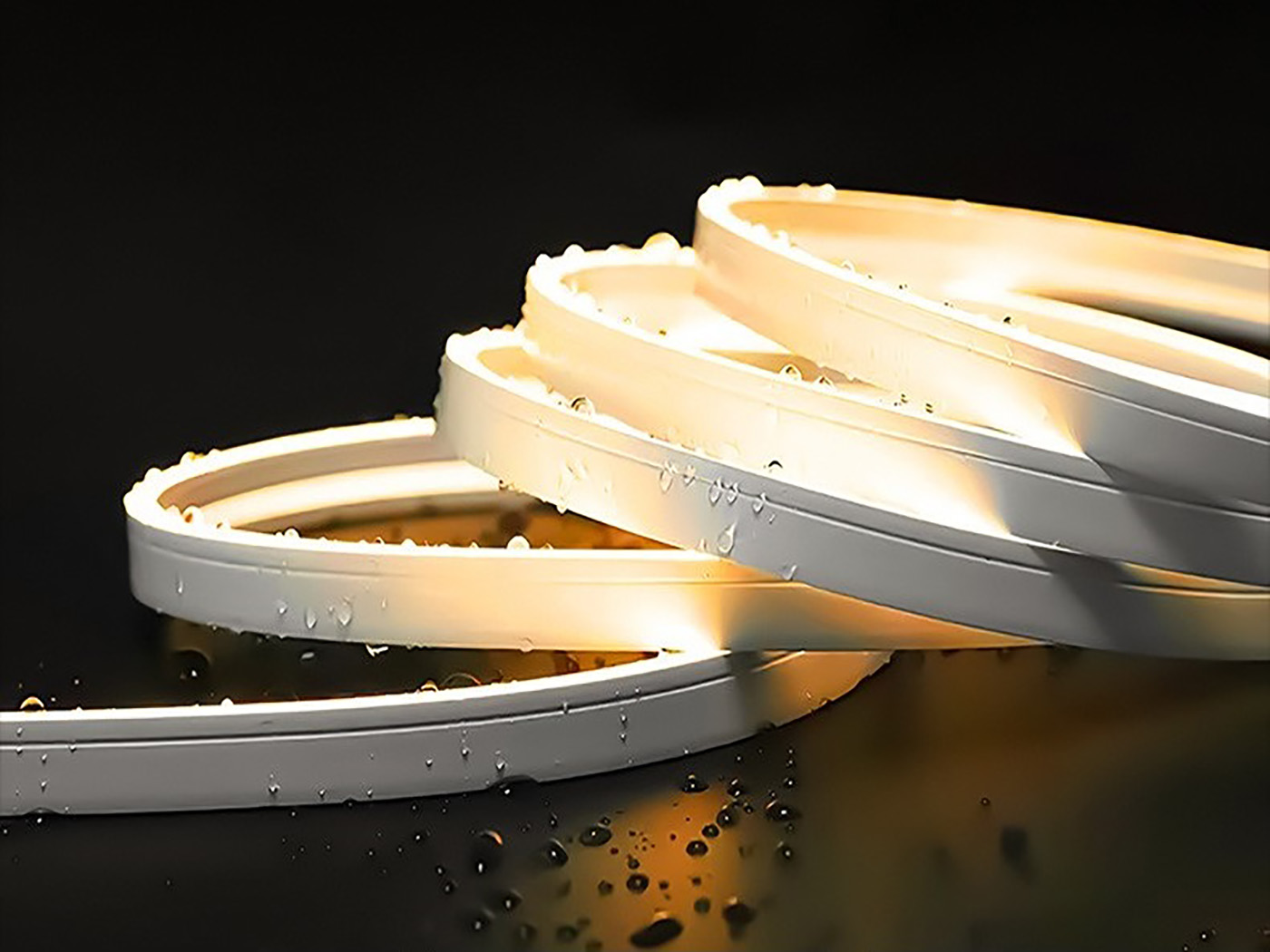

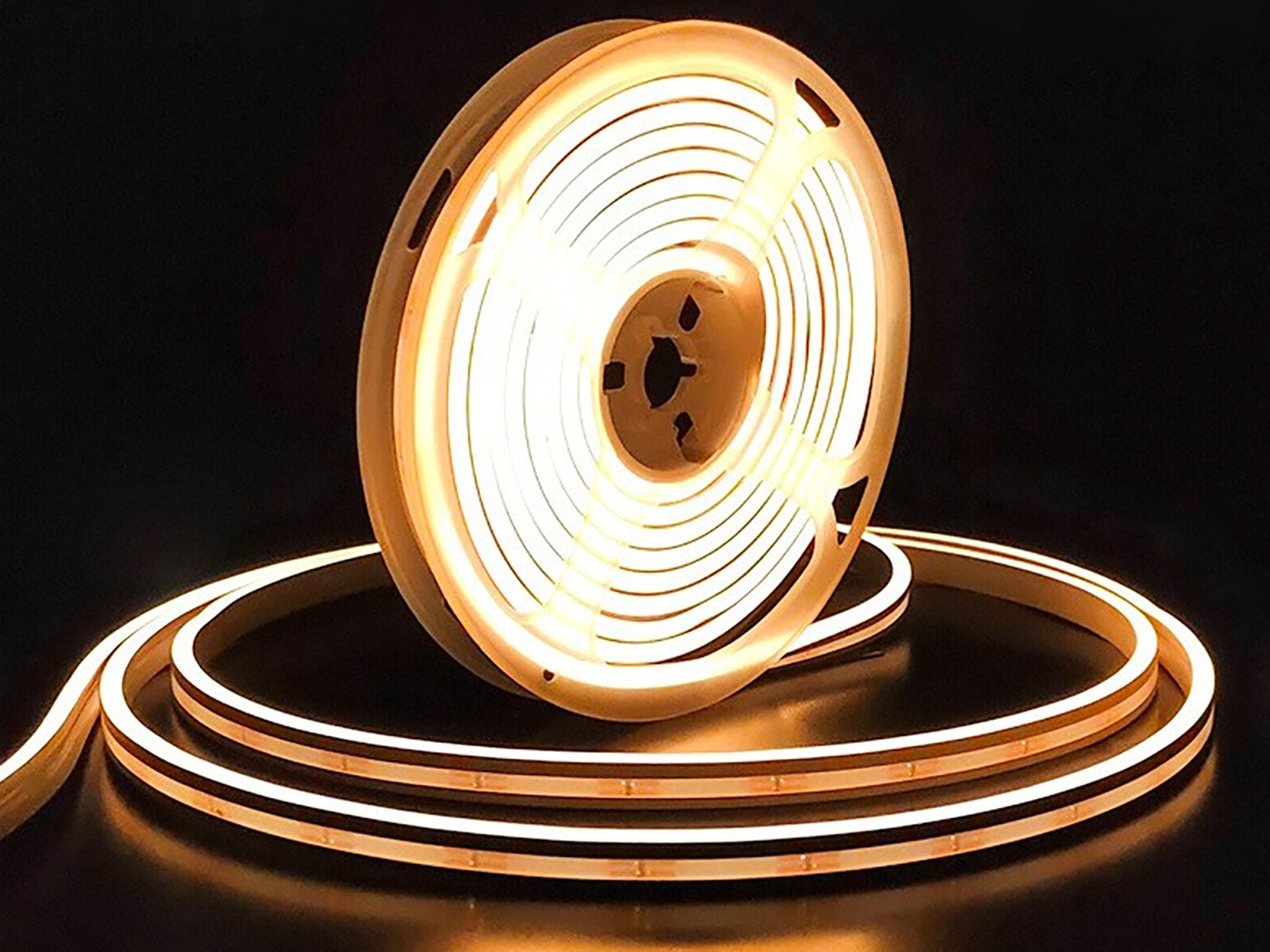

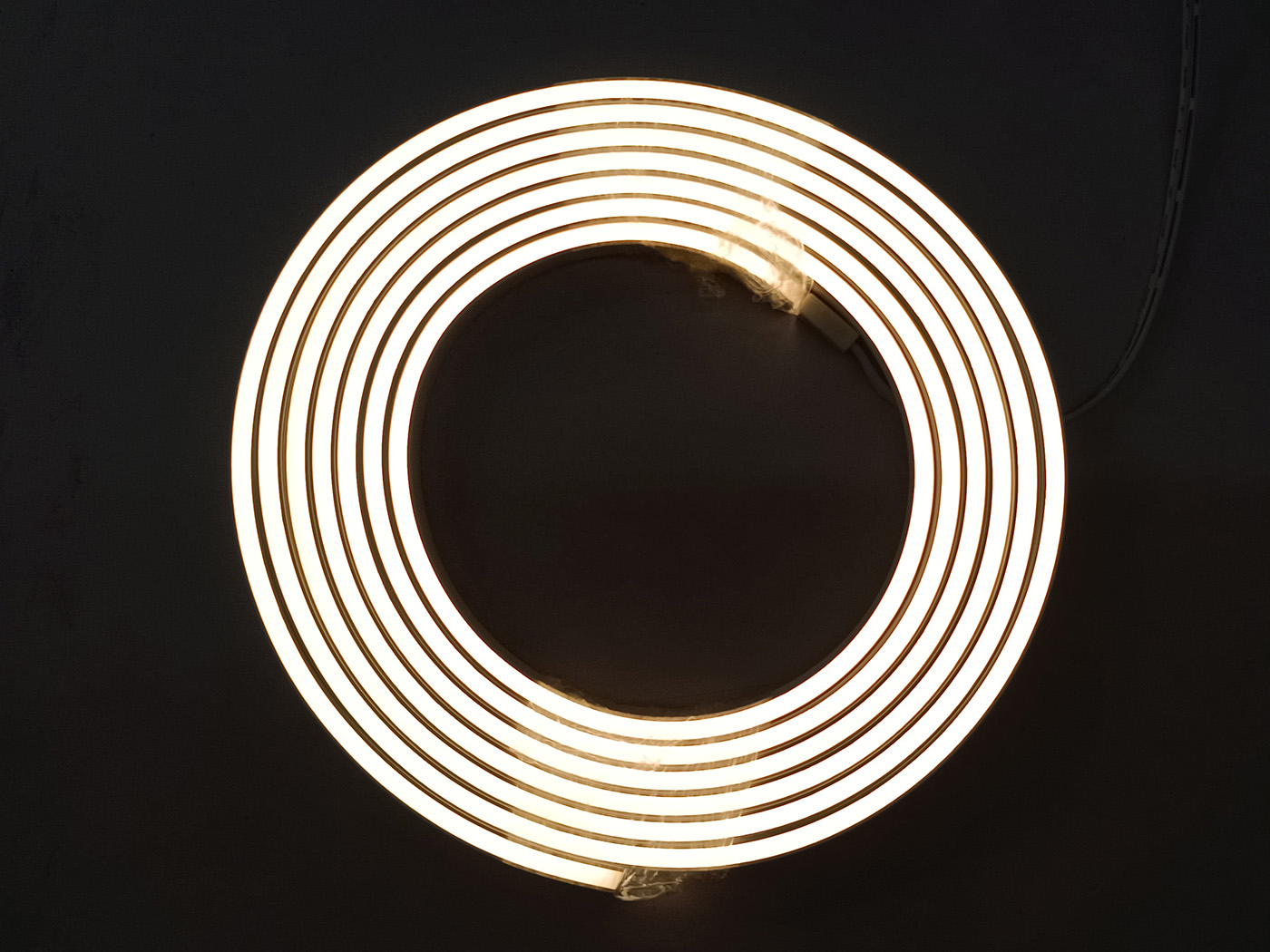

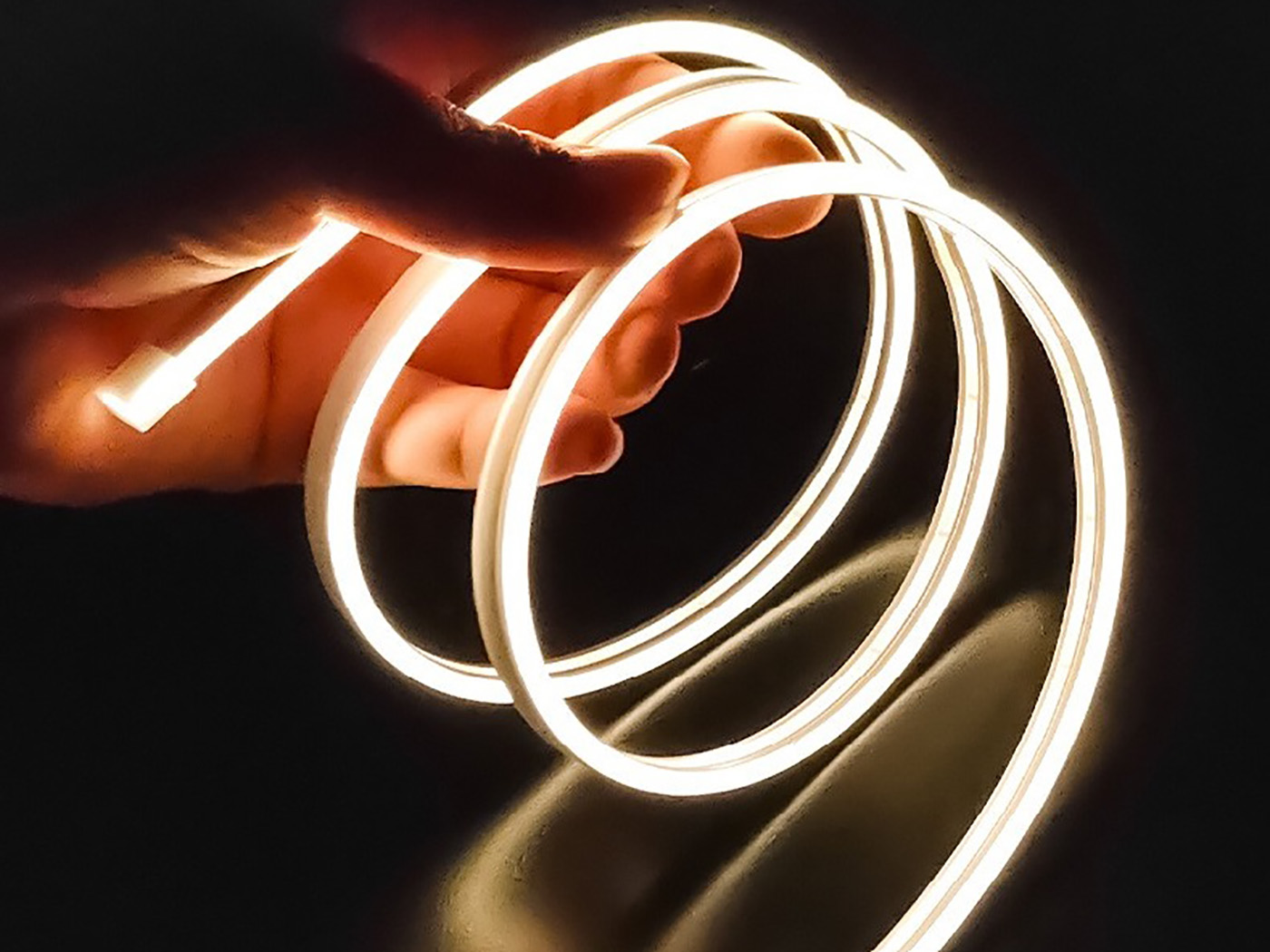

0408 Ultra Thin Silicone Extruded LED Neon Strip Light


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FW-0408｜Size: 4mm × 8mm｜Side Emitting｜Ultra-Slim

Product Features

Ultra-slim 4×8mm profile, side emitting design
Full extrusion flexible silicone, anti-yellowing and durable
Uniform light output, no light spots, no glare
IP65 waterproof, dustproof and bendable
3oz FPC, low voltage drop, stable brightness
LM80 high-brightness LED chip
Suitable for narrow slots, concealed lighting, furniture lighting

Model:
FW-S-0408

Ultra Thin Silicone Extruded LED Neon Strip 4×8mm IP67 Waterproof Mini Neon Flex Ultra Thin IP67 Silicone LED Neon Light Flexible Silicone Extruded Neon Strip Mini Ultra Thin Neon Strip for Narrow Spaces IP67 Outdoor Silicone Neon Rope Light Extruded Silicone LED Neon Strip Thin Silicone Neon Strip IP67 for Cabinet High Brightness Waterproof Neon LED Strip

Product Description

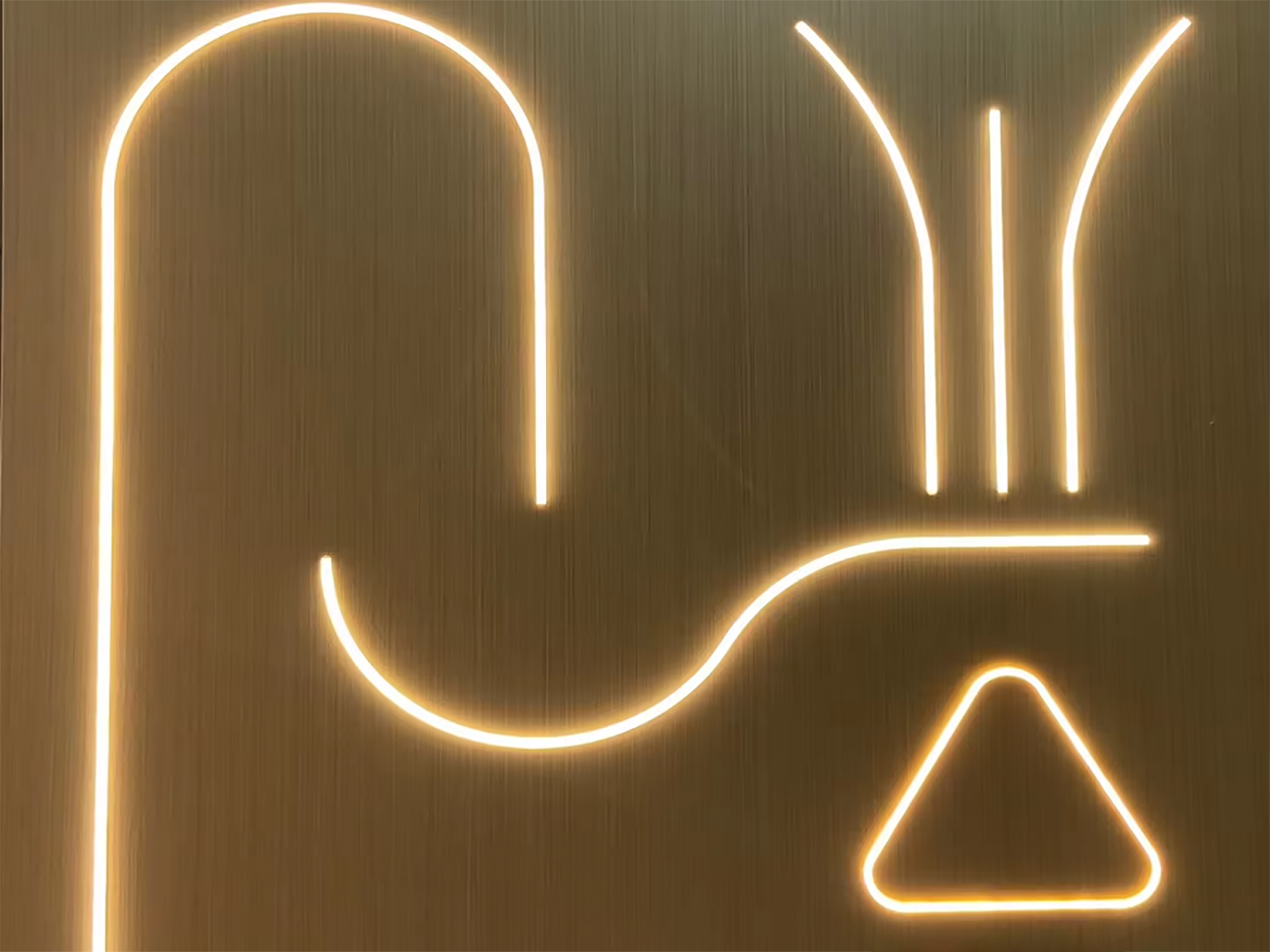

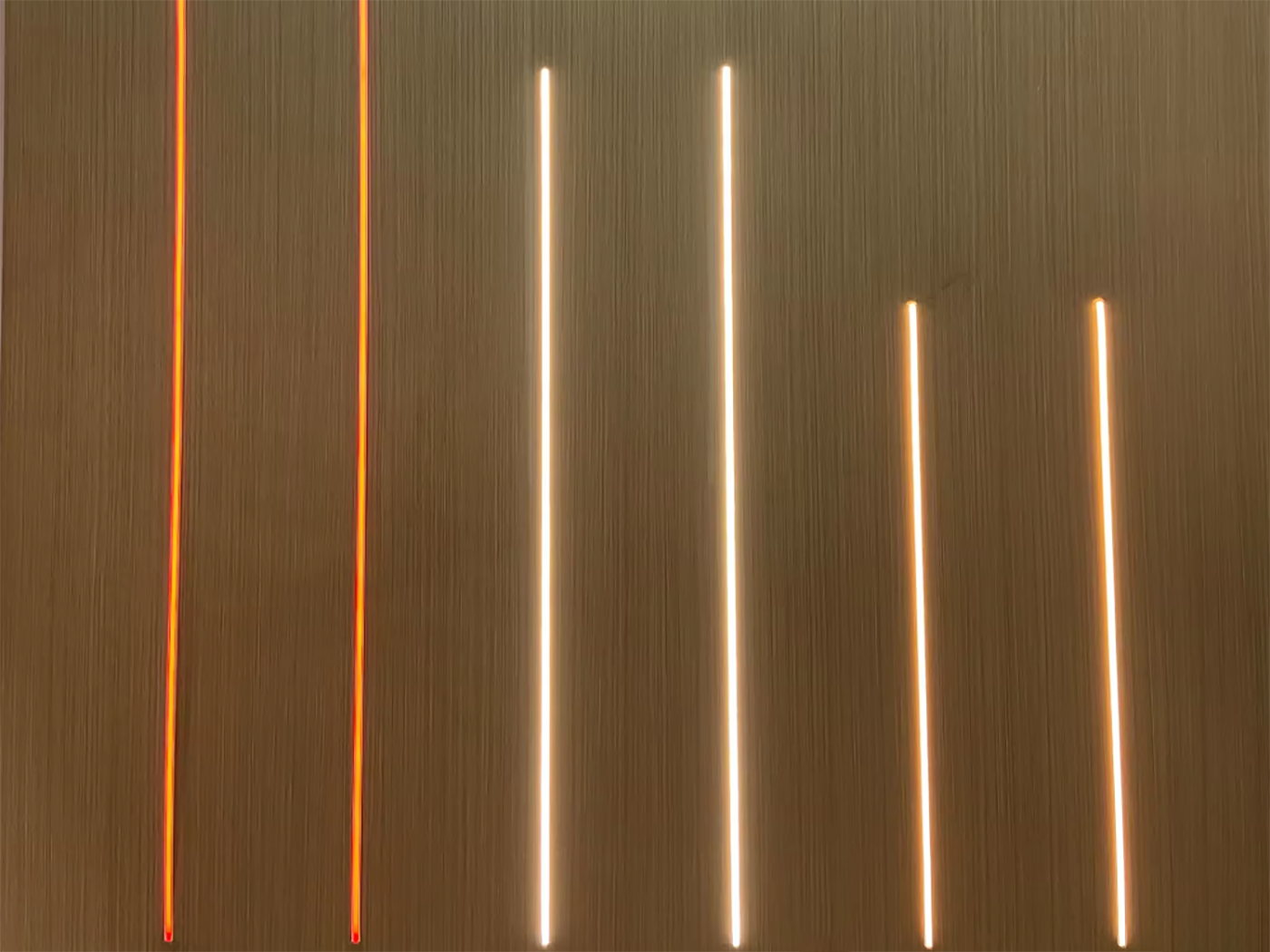

Typical Applications

nder cabinet lighting
Wardrobe & cupboard lighting
Narrow slot & hidden linear lighting
Wall & ceiling outline lighting
Furniture & display lighting

Core Specifications

Item	Specification
Model Number	FW-S-0408
Product Size	4mm (W) × 8mm (H)
Emitting Type	Side Emitting
LED Type	SMD 2835
LEDs per Meter	168 LEDs/m
Input Voltage	DC 24V
Power Consumption	6.5W/m
Beam Angle	120°
Waterproof Grade	IP65
Minimum Bending Radius	≥ 30mm
Cutting Unit	Free cut
Color Temperature	2700K / 3000K / 4000K / 6000K
CRI	Ra ≥ 80 (Ra ≥ 90 optional)
Working Temperature	-20℃ ~ +45℃
Silicone Material	Full extrusion anti-yellowing silicone
Installation	3M tape / slim aluminum profile / Clip
Standard Length	5m/roll
Lifespan	50,000 hours
Warranty	3 years

Bending Direction

Side bend (vertical to the light-emitting surface)D ≥ 30mm

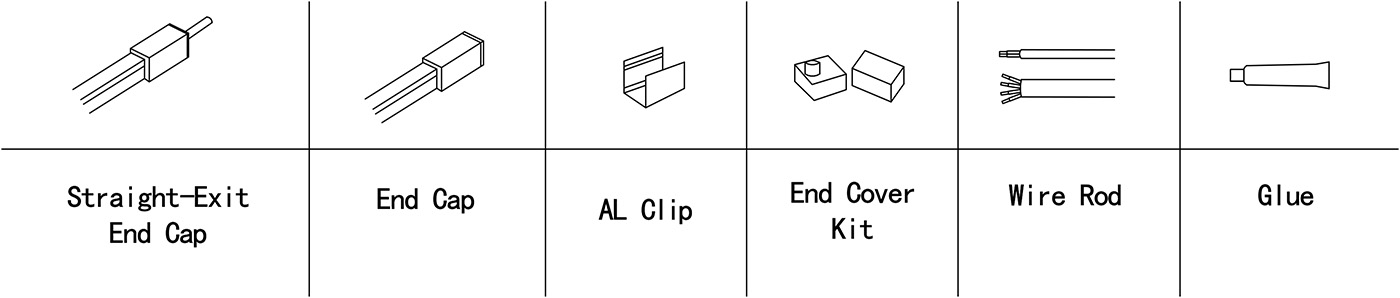

Optional Accessories

Side end cap
Mounting clip
Slim aluminum channel
DC 24V LED driver

Detail

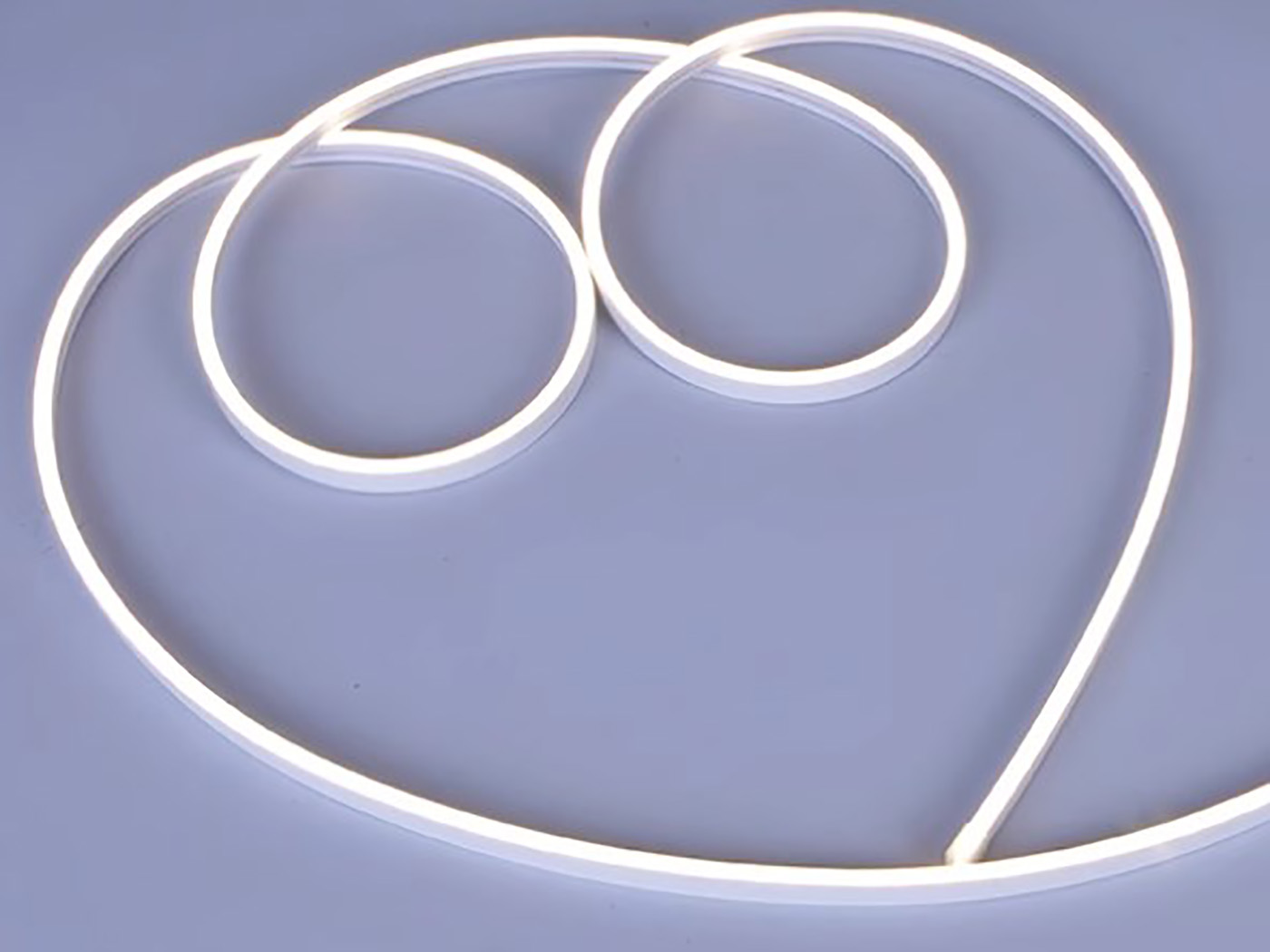

Ultra Thin Silicone Extruded LED Neon Strip (2)

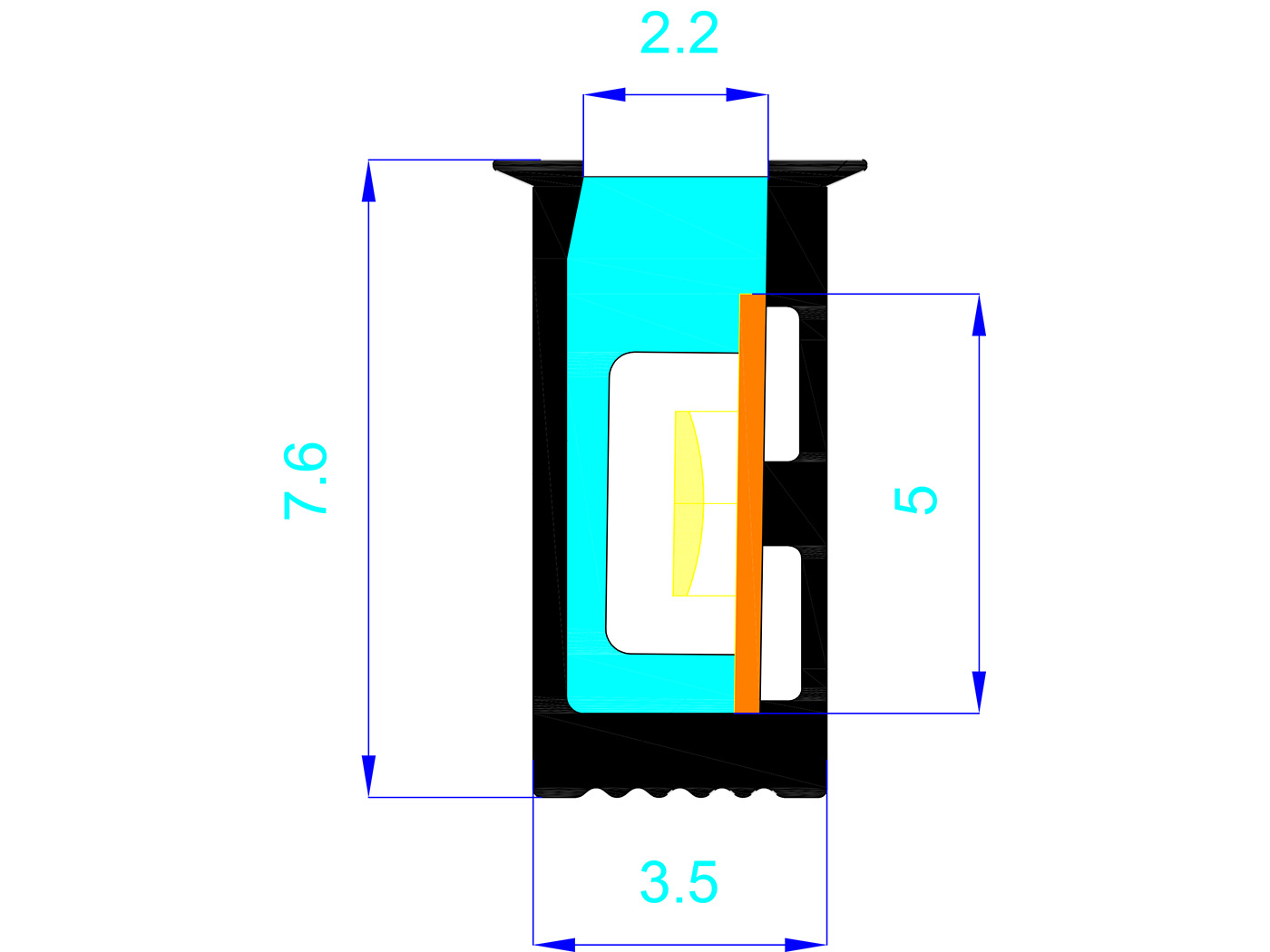

Ultra Thin Silicone Extruded LED Neon Strip (6)

Material

Ultra Thin Silicone Extruded LED Neon Strip (12)

Certificate

Ultra Thin Silicone Extruded LED Neon Strip (13)
