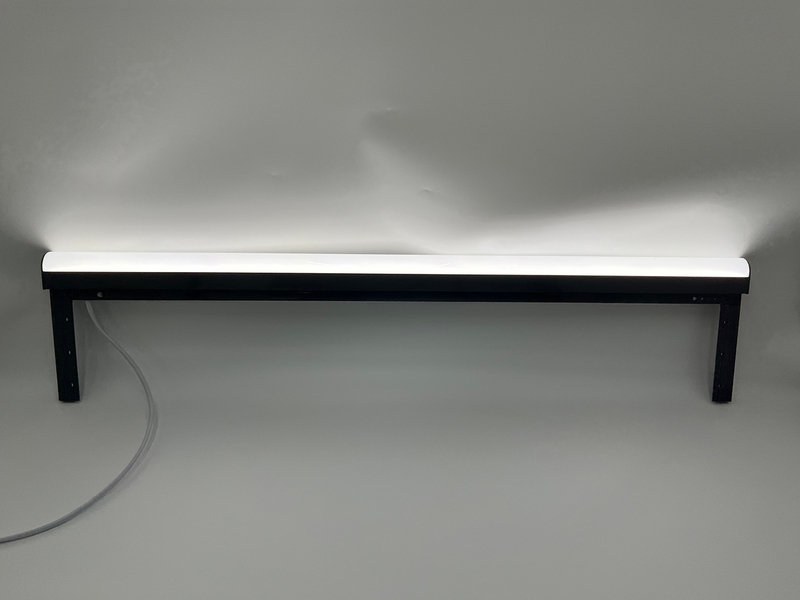

Built-in 10GHz high-sensitivity radar sensor to accurately detect human body movement within the sensing area.Adopts flame-retardant PC shell material, equipped with high-brightness, low power consumption and low light decay LED light source.The light is soft and uniform, featuring long service life, energy saving, high efficiency and environmental protection.
Wall-mounted installation, suitable for close mounting on the outer top or inner space of bathroom cabinet.
This product is specially designed and dedicated for internal lighting of bathroom cabinets only:
Internal induction lighting for household bathroom cabinet
Mirror cabinet, wash basin cabinet and bathroom vanity cabinet inner auxiliary lighting
Embedded installation for integrated overall bathroom cabinet
Built-in matching lighting for engineering apartments, hotel bathroom cabinets
Custom home bathroom cabinet inner shelf & top intelligent induction lighting
Sealed design, compact structure, easy installation.Product length can be cut and matched according to bathroom cabinet size, cutting interval 50mm.

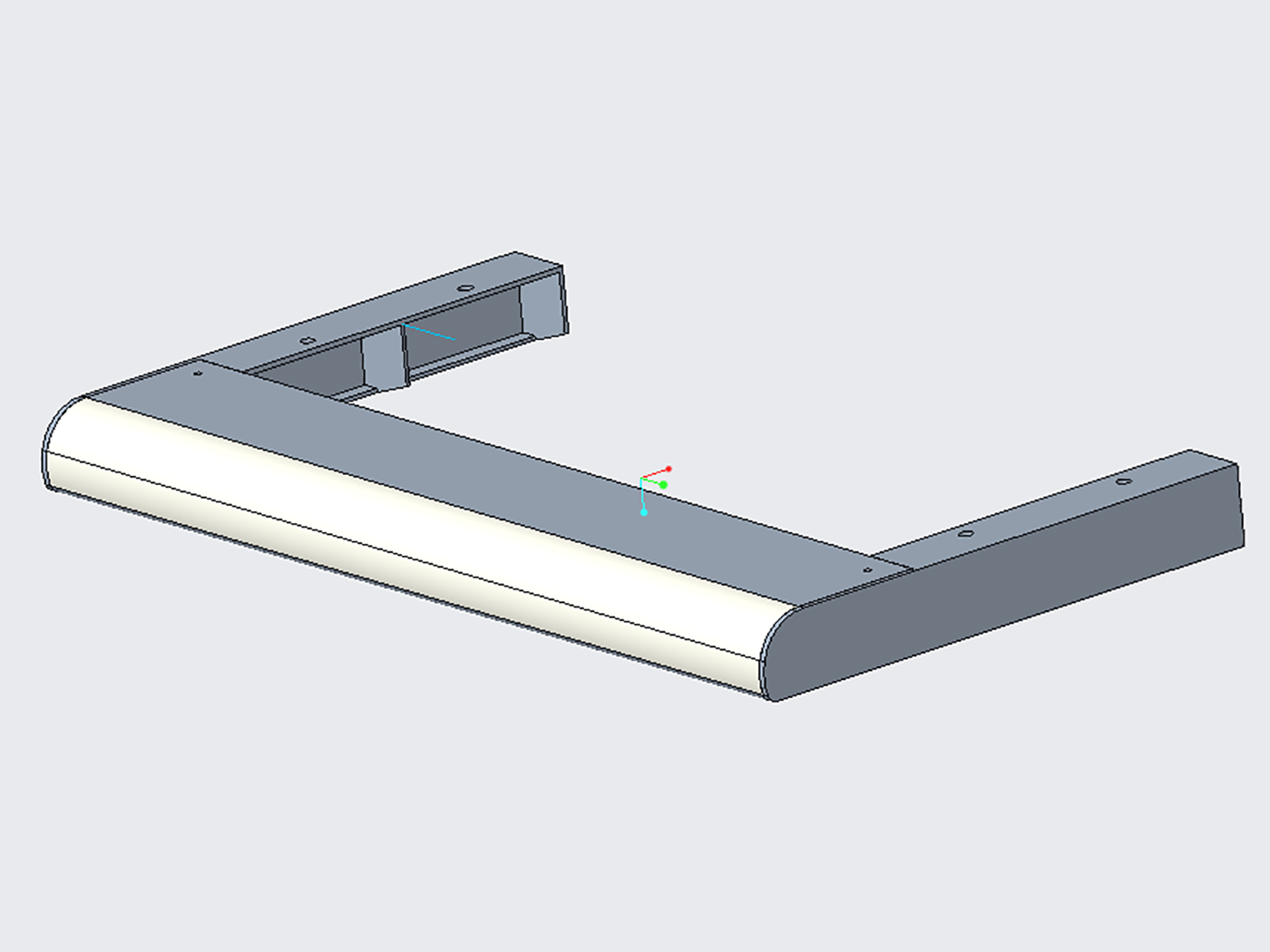

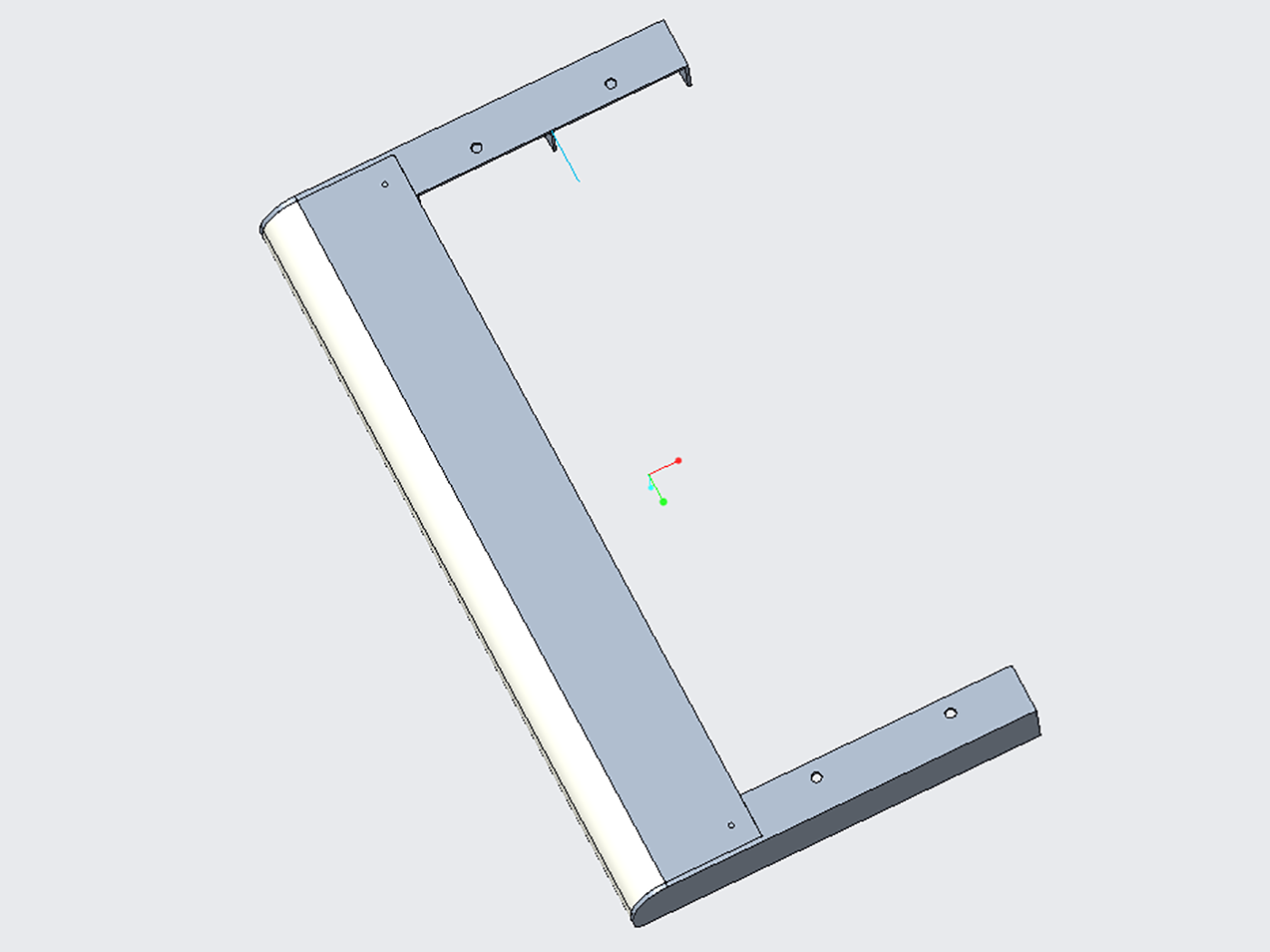

Product Model | Length (L) | Width (W) | Height (H) | Mounting Hole Spacing |
GZ-523823-01X-1200A | 500–1200mm (50mm cutting interval) | 162.80 | 23.00 | Refer to dimension drawing |
No. | Parameter Item | Technical Data |
1 | Rated Input Voltage | AC 220V |
2 | Rated Working Frequency | 50Hz |
3 | Maximum Power | 9.5W (144×0.2W LED module) |
4 | Maximum Input Current | 0.07A |
5 | Power Factor | 0.65 |
6 | Induction Distance | 2–3m |
7 | Delay Time | 60s (adjustable, auto-off delay after people leave) |
8 | Color Temperature | 3000K / 4000K / 5000K / 6000K (optional) |
9 | Max Luminous Flux | 1000LM |
10 | Shell Material | Flame-retardant PC |
11 | Power Cord Length | 1150±50mm |
12 | Protection Level | IP44 |
13 | Single LED Parameter | DC3.0V–DC3.4V, 0.2W |
14 | Design Service Life | 30000 hours |
After the lamp is powered on for the first time, the built-in radar induction module performs self-inspection for about 15 seconds, then enters standby state.When human movement is sensed, the lamp lights up and keeps on for 60 seconds.If human movement is detected again within 60 seconds, the delay time will be reset and the lamp remains continuously on.The lamp will automatically turn off about 60 seconds after no human movement is detected.
Installation height: 1.5～2mInduction coverage radius: 2.5mDivided into strong induction range and weak induction range.
Do not install in areas with continuously moving non-human objects such as pets, swinging curtains and plants facing air outlets.
Avoid large-area strong reflection planes facing the lamp, which may cause radar signal interference.
The lamp shall be installed firmly; keep away from vibration sources such as air conditioners and fans to prevent false induction triggering.
Product Model | Carton Dimension (mm) | Quantity Per Carton |
GZ-523823-01X-1200A | 1300×300×385 | 20 sets |
Brown Wire (L): Live WireBlue Wire (N): Neutral Wire
Note: The product shall be kept powered on all the time, not controlled by ordinary wall switch.
GB 7000.201-2008GB 7000.1-2015GB/T 17743-2021GB 17625.1-2022GB 19510.1-2009GB 24819-2009
Packaging: 20 sets per carton, attached with product nameplate and installation manual.
Transportation: Keep dry, moisture-proof, dust-proof and mildew-proof; avoid rain soaking, direct sunlight and mechanical damage.
Storage:Storage temperature: -20℃ ~ +40℃Relative humidity: ≤80%Store in dry warehouse without acidic, alkaline or corrosive gas.
