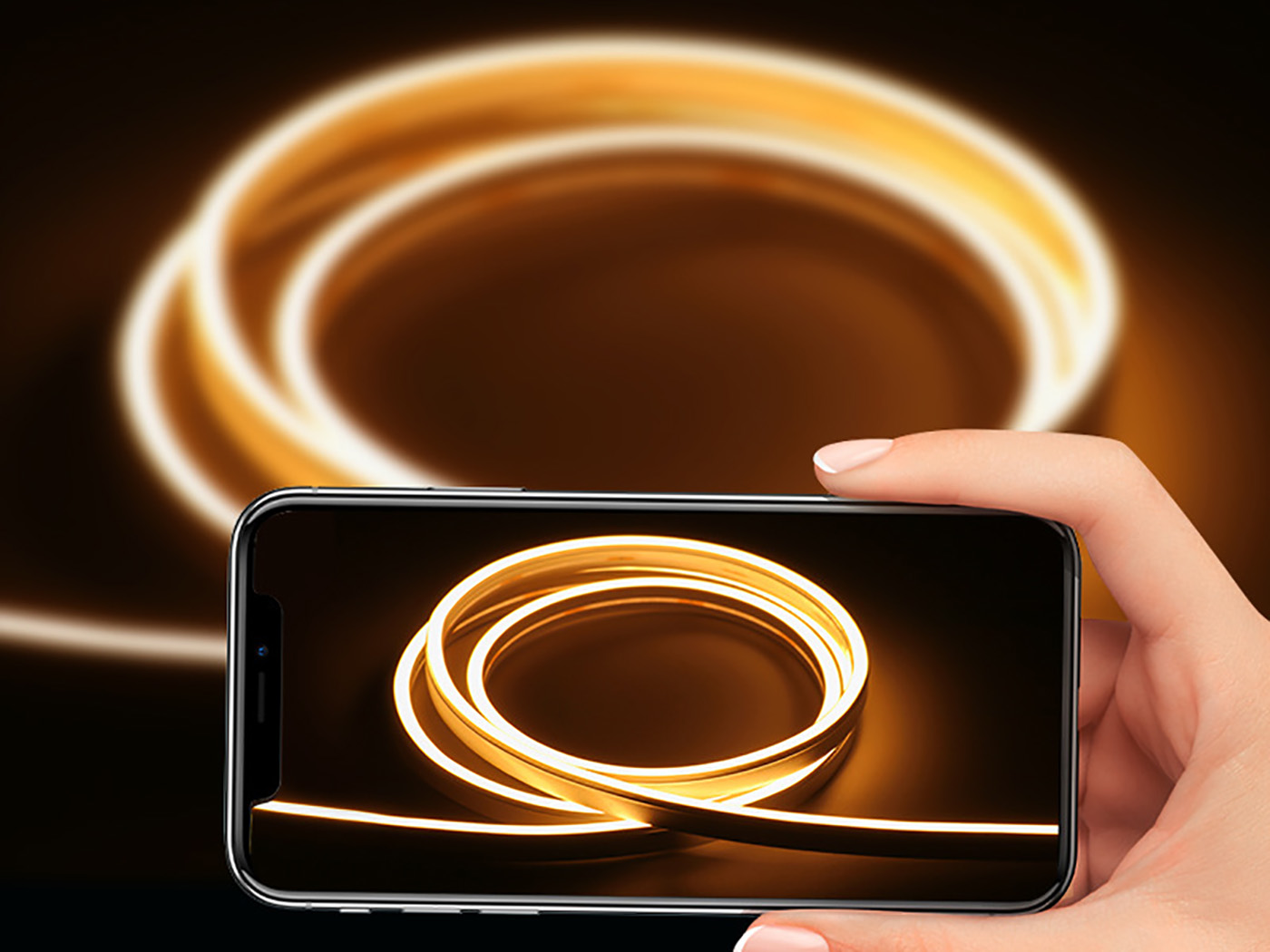

0306 Ultra Narrow Side Emitting LED Strip for Cabinet


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Ultra-slim 3×6mm profile, perfect for invisible installation in tiny gaps
Top emitting, full extrusion silicone, dot-free uniform light
IP20 waterproof, flexible, anti-yellowing, long lifespan
Ideal for cabinet, furniture, slot, mirror, shoe cabinet, narrow space lighting

Model:
FW-S-0306

Ultra Narrow Side Emitting LED Strip 3×6mm Co-extruded Silicone Neon Strip Ultra Narrow Silicone LED Strip for Cabinet Side Emitting Flexible Cabinet LED Light Co-extruded Silicone LED Strip Thin Side Glow Neon Strip for Furniture Mini Cabinet Silicone LED Strip Flexible Ultra Narrow LED Strip for Cabinets Co-extruded Silicone Side Emitting Neon Flex

Product Description

Core Specifications

Item	Specification
Product Model	FW-S-0306
Product Size	3mm (W) × 6mm (H)
Emitting Type	Top Emitting
Silicone Material	Full extrusion flexible silicone, anti-yellowing
LED Type	SMD1616 / SMD2216 (high density)
LED Quantity	240 LEDs/m
Input Voltage	DC 12V / DC 24V
Power Consumption	12V: 5W/m; 24V: 6W/m
Beam Angle	120°
Waterproof Grade	IP20
Min. Bending Radius	≥ 20mm
Cutting Unit	3 LEDs / 15mm
Color Temp	2700K / 3000K / 4000K / 6000K
CRI	Ra ≥ 90
Luminous Efficacy	≥ 25~35 lm/W
Working Temp	-20℃ ~ +50℃
Drive Mode	Constant Voltage DC Driver
Installation	3M tape / slim aluminum profile
Standard Length	5m / roll
Lifespan	≥ 50,000 Hours
Warranty	3 Years

Product Features

Ultra-narrow 3×6mm size fits almost any tiny slot

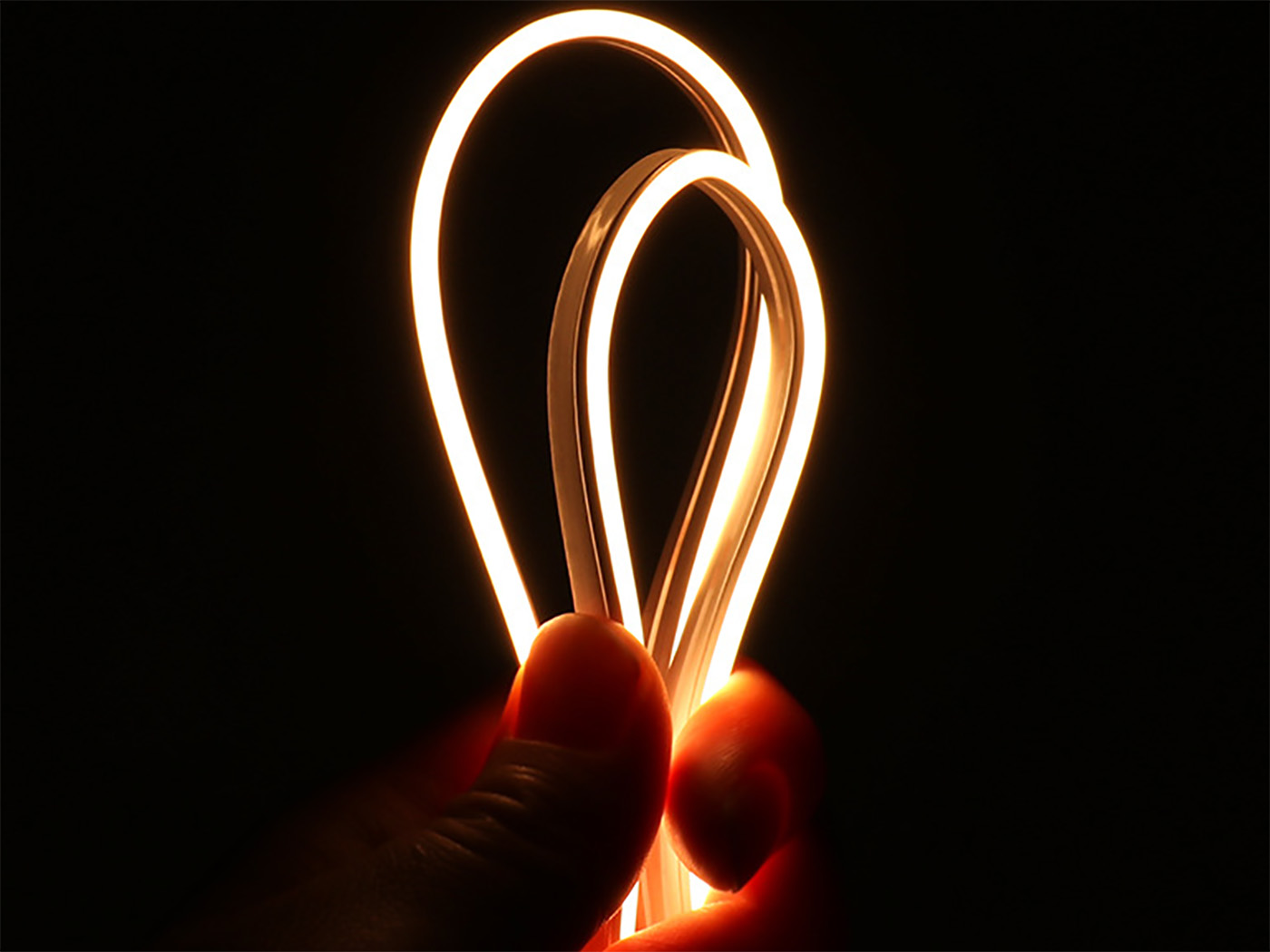

Super flexible, easy to bend into curves & corners
Full silicone extrusion, IP20 waterproof & dustproof
High-density LEDs, uniform glow, no dark spots
Low power, safe 12V/24V, for indoor & covered outdoor use
Anti-yellowing, UV-resistant, long-term stable

Typical Applications

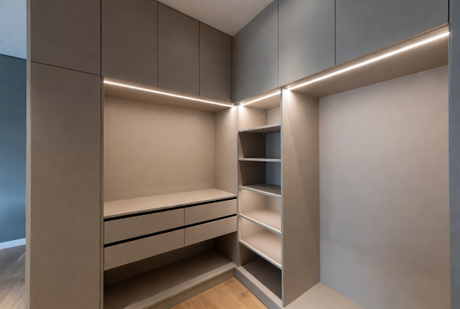

Cabinet / wardrobe / shoe cabinet lighting
Furniture edge & narrow slot lighting
Mirror backlight & TV background lighting
Display shelf & showcase linear lighting
Indoor decorative outline & slot lighting

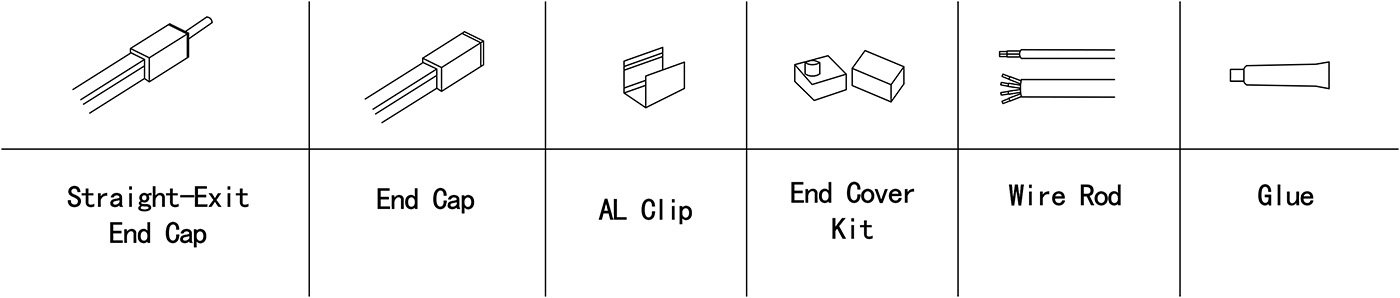

Optional Accessories

End cap
Slim mounting clips
Ultra-slim aluminum profile
DC 12V/24V power supply

Detail

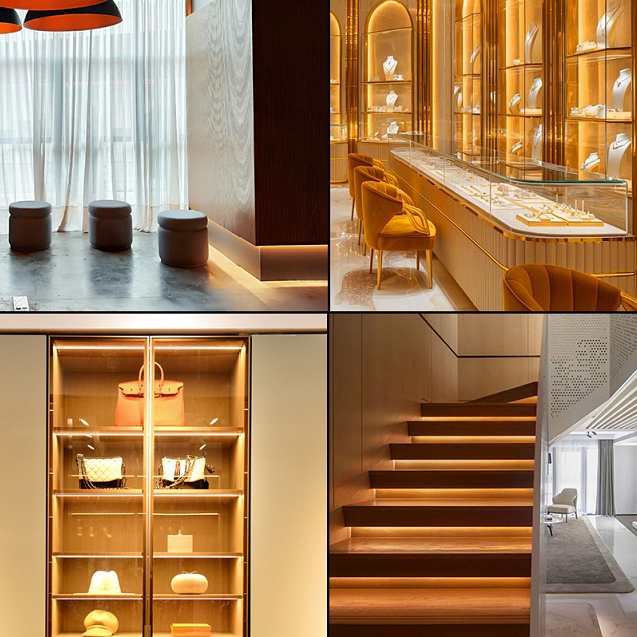

Ultra Narrow Side Emitting LED Strip (1)

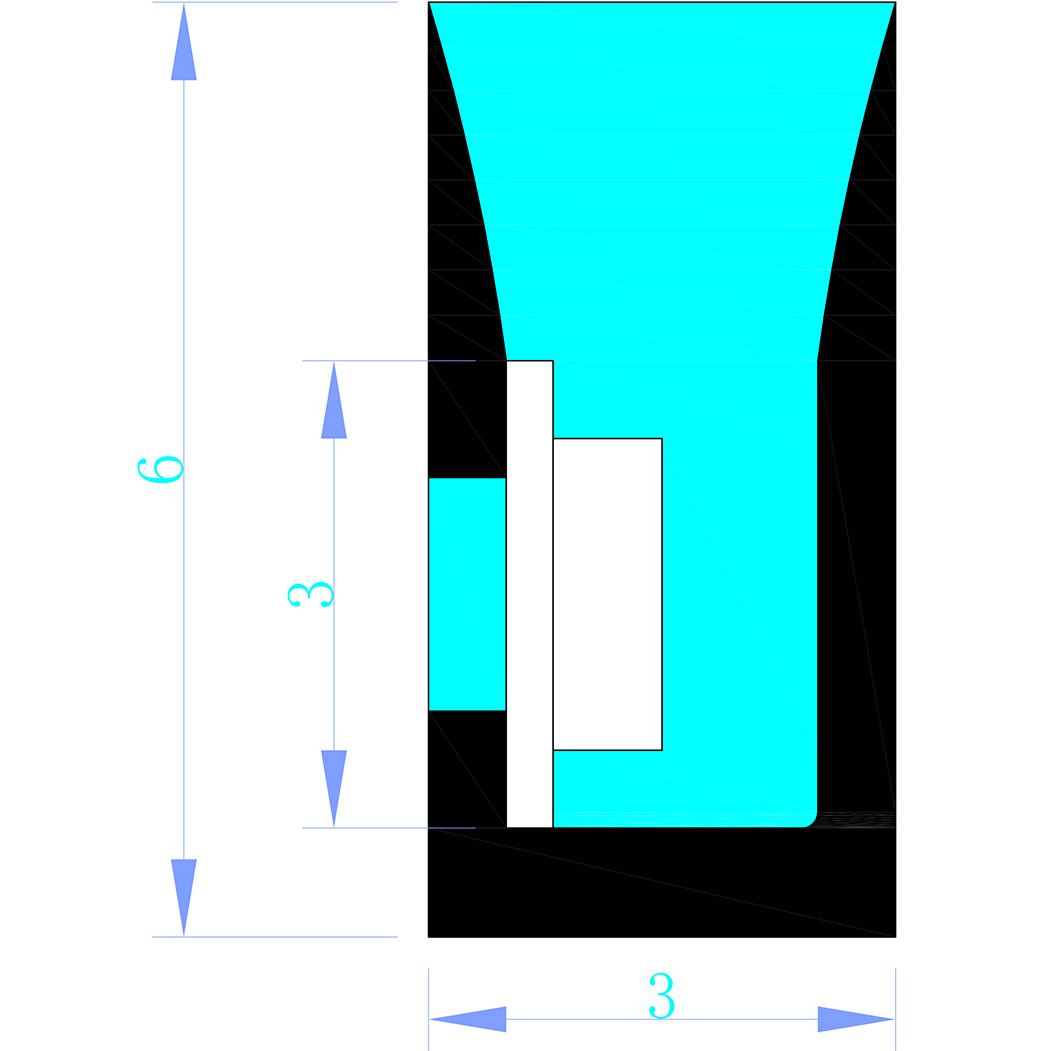

Ultra Narrow Side Emitting LED Strip (4)

Material

Ultra Narrow Side Emitting LED Strip (6)

Certificate

Ultra Narrow Side Emitting LED Strip (7)
