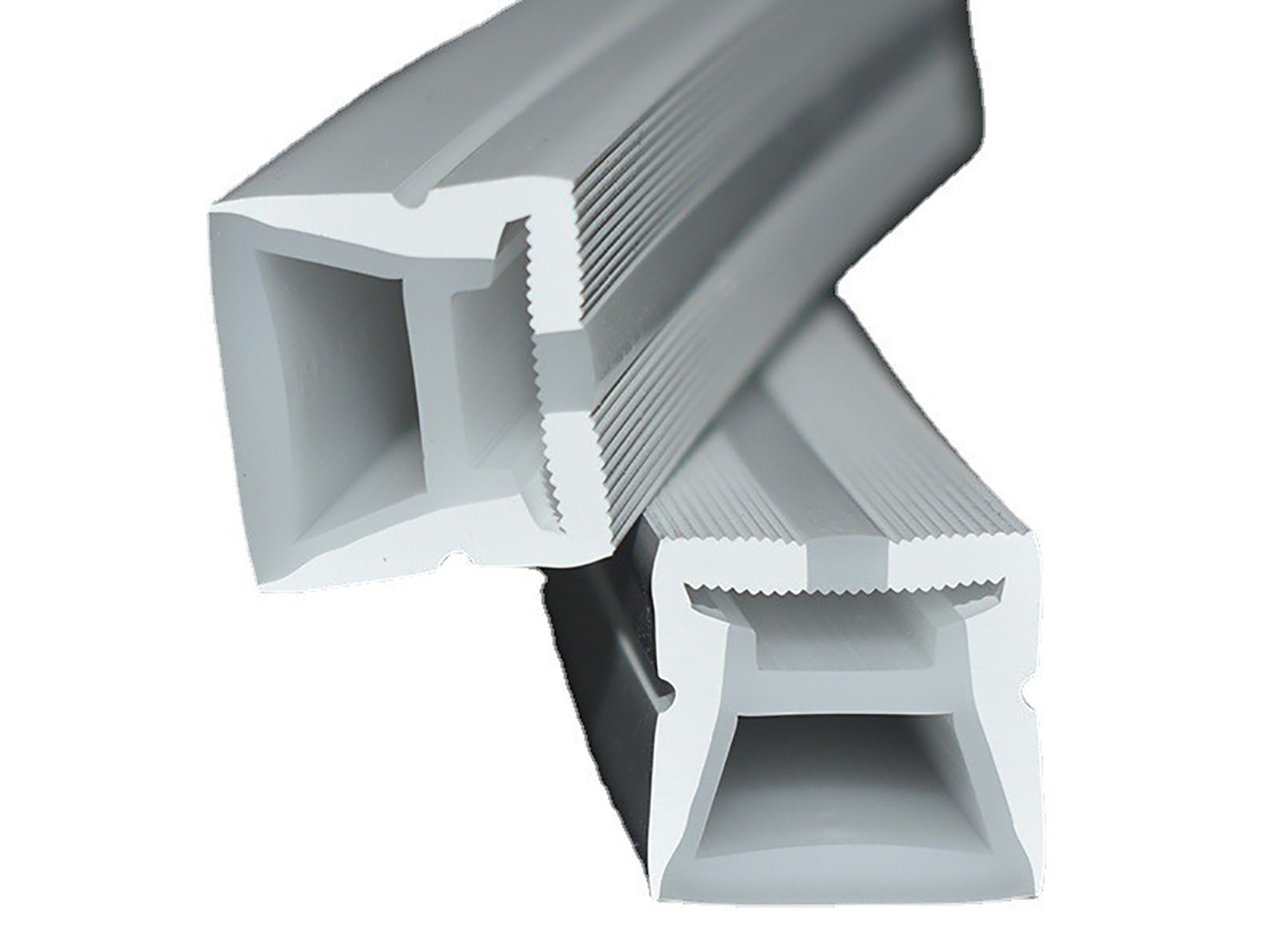

Customization Soft Bending Silicone Tube 16x16mm Waterproof Led Silicone Tube

Customization Soft Bending Silicone Tube 16x16mm Waterproof Led Silicone Tube


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FC1616 | Outer Size: 16mm(W)×16mm(H) | Large Square Engineering-Grade Silicone Tube

Model:
FW-T-1616

Soft Bending Silicone Tube 16X16Mm Silicone Light Tube Waterproof Led Silicone Tube Custom Silicone Light Tube 16*16Mm Led Tube Sleeve Flexible Bendable Neon Tube Custom Led Silicone Tubing Waterproof Light Tube Cover Bendable Led Silicone Channel

Product Description

Core Specifications

Item	Standard Specification
Model Number	FC1616
Outer Dimension	16mm × 16mm (Square Profile)
Inner Dimension	14mm × 14mm (fits 12mm wide bare high-power LED strips)
Uniform Wall Thickness	1mm
Silicone Material	Engineering-grade fumed silica, anti-yellowing anti-UV formula
Hardness	35±5 Shore A
Waterproof Grade	IP67 (after sealed with matching end caps & silicone glue)
Working Temperature Range	-40℃ ~ +120℃
UV Resistance	Grade 5, long-term outdoor anti-aging
Light Transmittance	≥90% (high transparent version)
Standard Roll Length	50m/roll, 100m/roll (custom length available)

Key Features

Thick-wall structure, anti-scratch, anti-UV, suitable for harsh outdoor environment use
Large square engineering-grade profile, specially designed for 12mm wide high-power LED strips, provides full IP67 waterproof, impact-resistant and anti-aging protection
Moderate hardness, excellent shaping performance, no deformation after long-term outdoor use, supports long-distance engineering installation
Fully compatible with 16×16mm neon strip mounting clips, aluminum channels and engineering installation accessories

Optional Types

Type	Core Feature	Application Scenario
High Transparent Version	≥90% light transmittance, minimal brightness loss	Outdoor building contour, landscape engineering lighting
Milky White Diffusion Version	Uniform soft glow, no visible LED dots, anti-glare	Large commercial space, hotel interior lighting
Black Light-Blocking Version	Side & back light blocking, only front emitting	Large-scale concealed linear engineering projects

Typical Applications

Large-scale stage, event venue high-power lighting strip protection
Outdoor building facade, bridge contour lighting strip protection
Municipal engineering, park landscape lighting strip waterproof upgrade
Large hotel, commercial complex interior decorative lighting strip protection

Matching Accessories

FC1616 dedicated waterproof end caps
Food-grade silicone sealant
16mm heavy-duty mounting clips
16×16mm aluminum mounting channels
IP67 engineering-grade waterproof connectors
