FW-S-2010
Item | Specification |

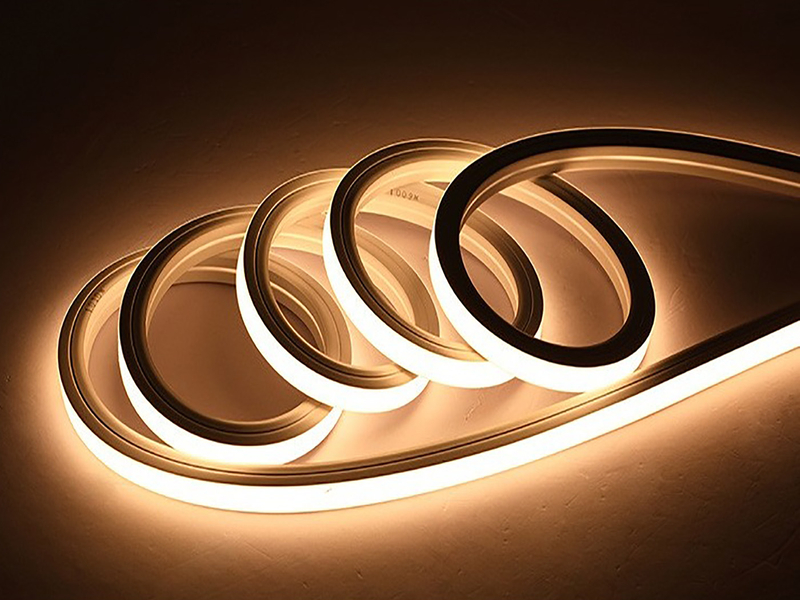

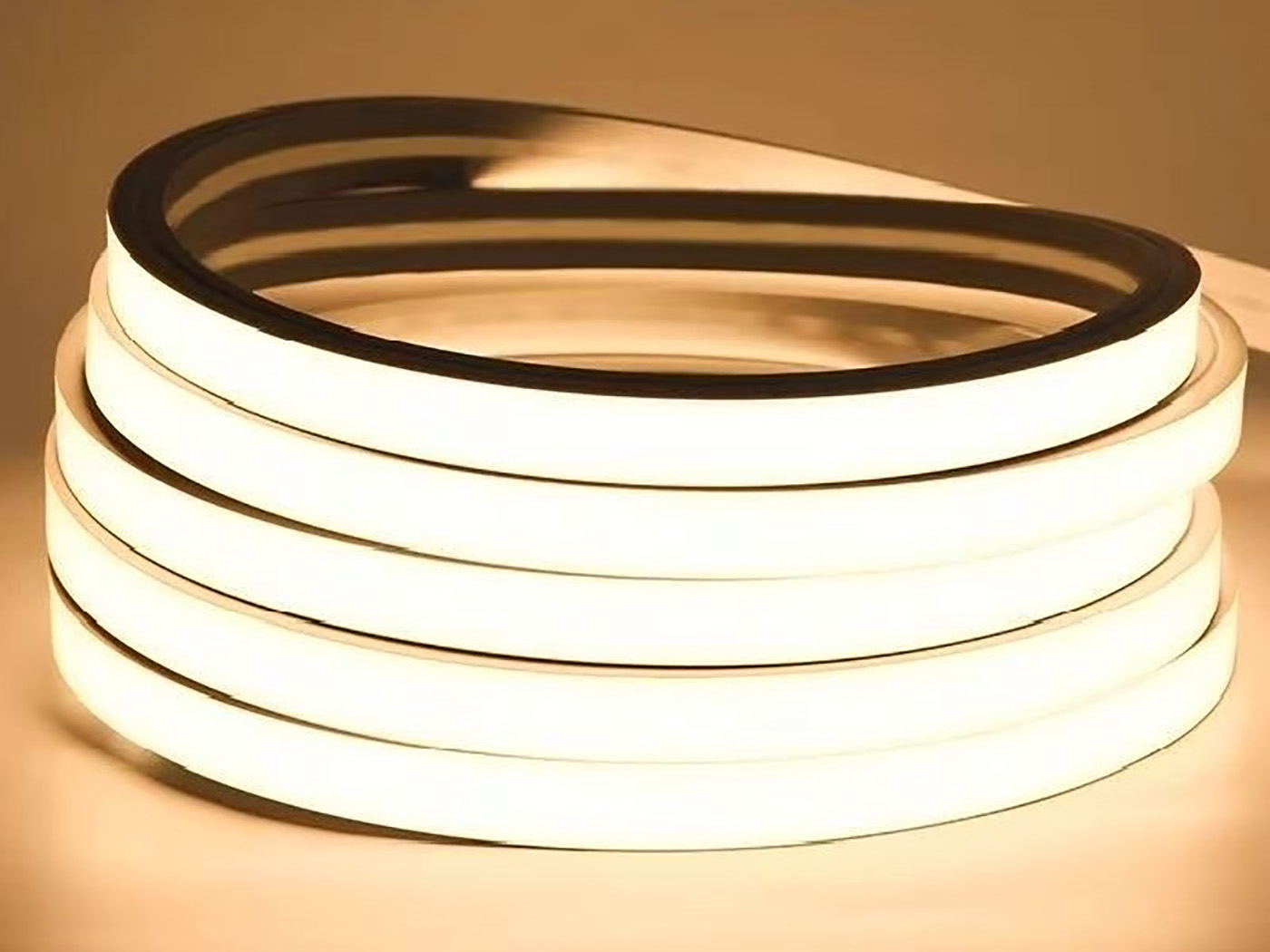

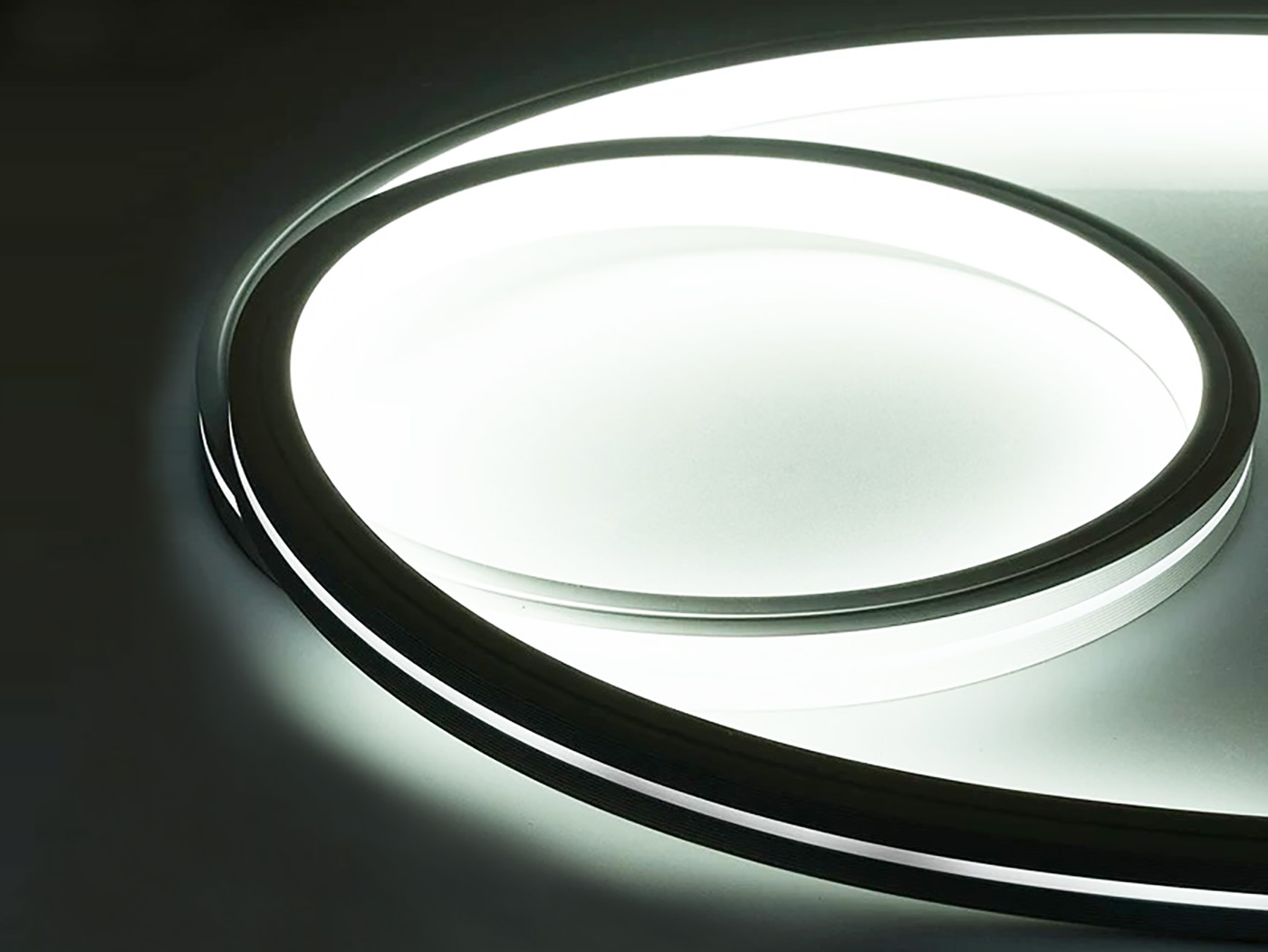

Product Name | 2010 Top Emitting Silicone Neon Strip (Flat Type) |
Model No. | FW-S-2010 |

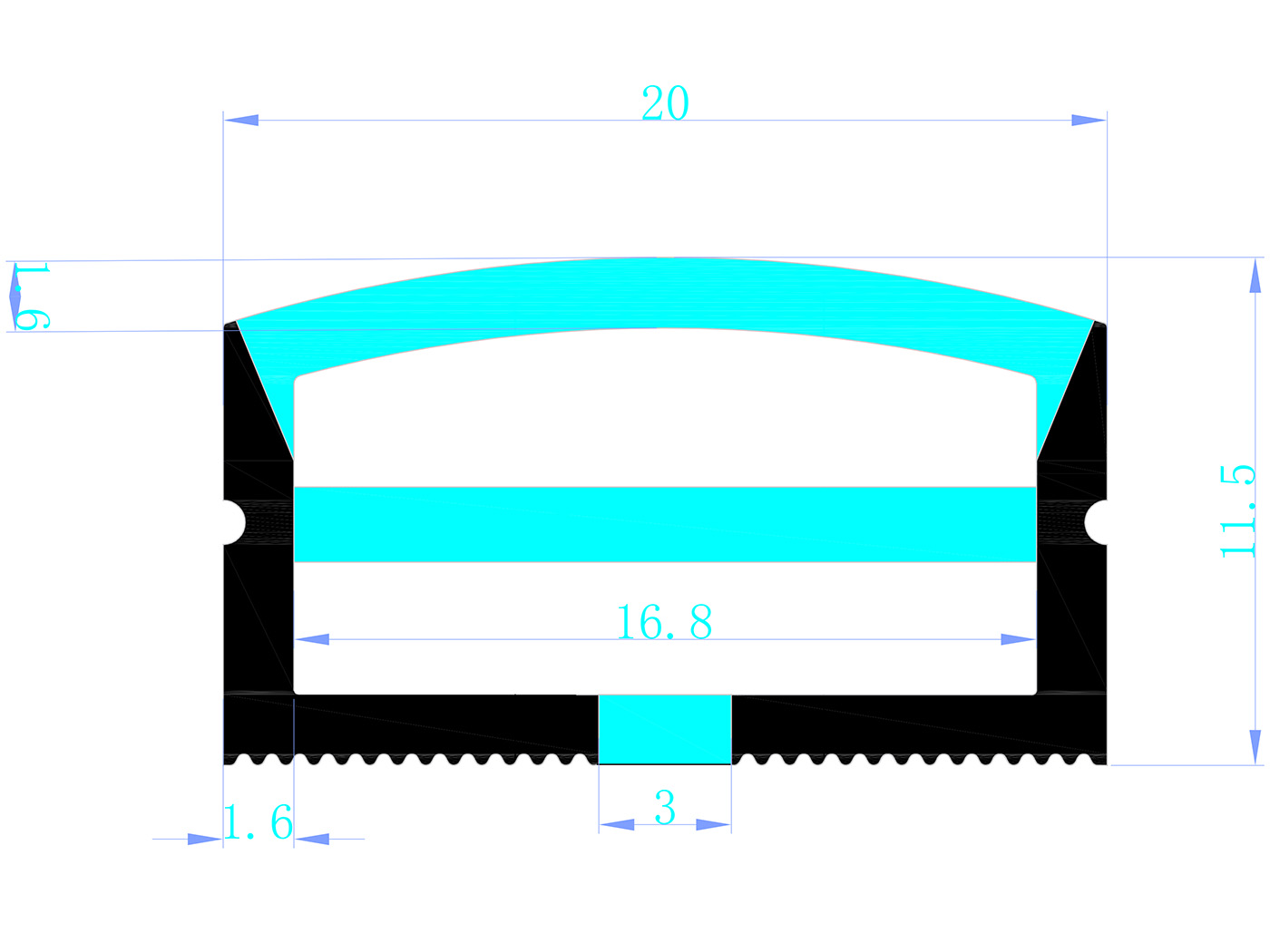

Overall Dimension | 20mm (Width) × 10mm (Height) - Flat Type (Differentiated from Square Models) |
Emitting Mode | Top Emitting (Front Emitting), 180° Wide Beam Angle, No Side Light Leakage |
Silicone Process | Standard: Integrated Extruded Silicone; Optional: Three-Color Co-extruded Silicone (Anti-yellowing, UV-Resistant, Tear-Resistant) |
LED Chip | SMD 2835 (High Brightness Version), Optional SMD 5050 for Higher Lumen |
LED Density | 120 LEDs/m (Standard); 240 LEDs/m (High Density Optional) - No Light Spots |
Input Voltage | DC 12V / DC 24V (Optional), Constant Voltage Drive (Must Match Special Constant Voltage LED Driver) |
Power Consumption | 12V: 9.6W/m (120 LEDs/m); 19.2W/m (240 LEDs/m) 24V: 9.6W/m (120 LEDs/m); 19.2W/m (240 LEDs/m) |
Optical Parameters | CRI: ≥80 (Ra≥90 Optional); Luminous Efficacy: ≥88lm/W; No Flicker, Uniform Light Emission |

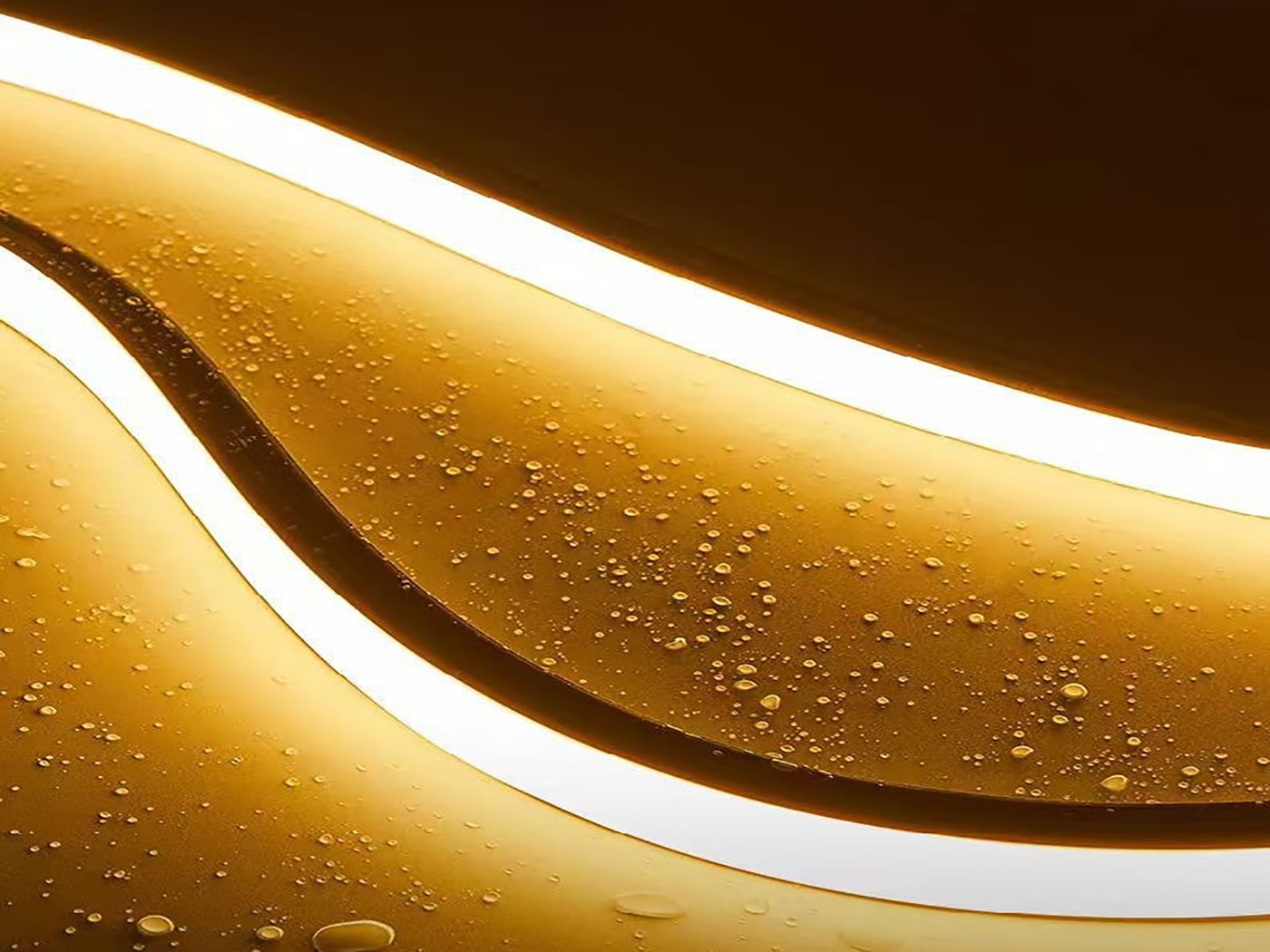

Waterproof Grade | IP67 (Standard, Fully Sealed); IP68 (Optional, for Outdoor Harsh Environments) |

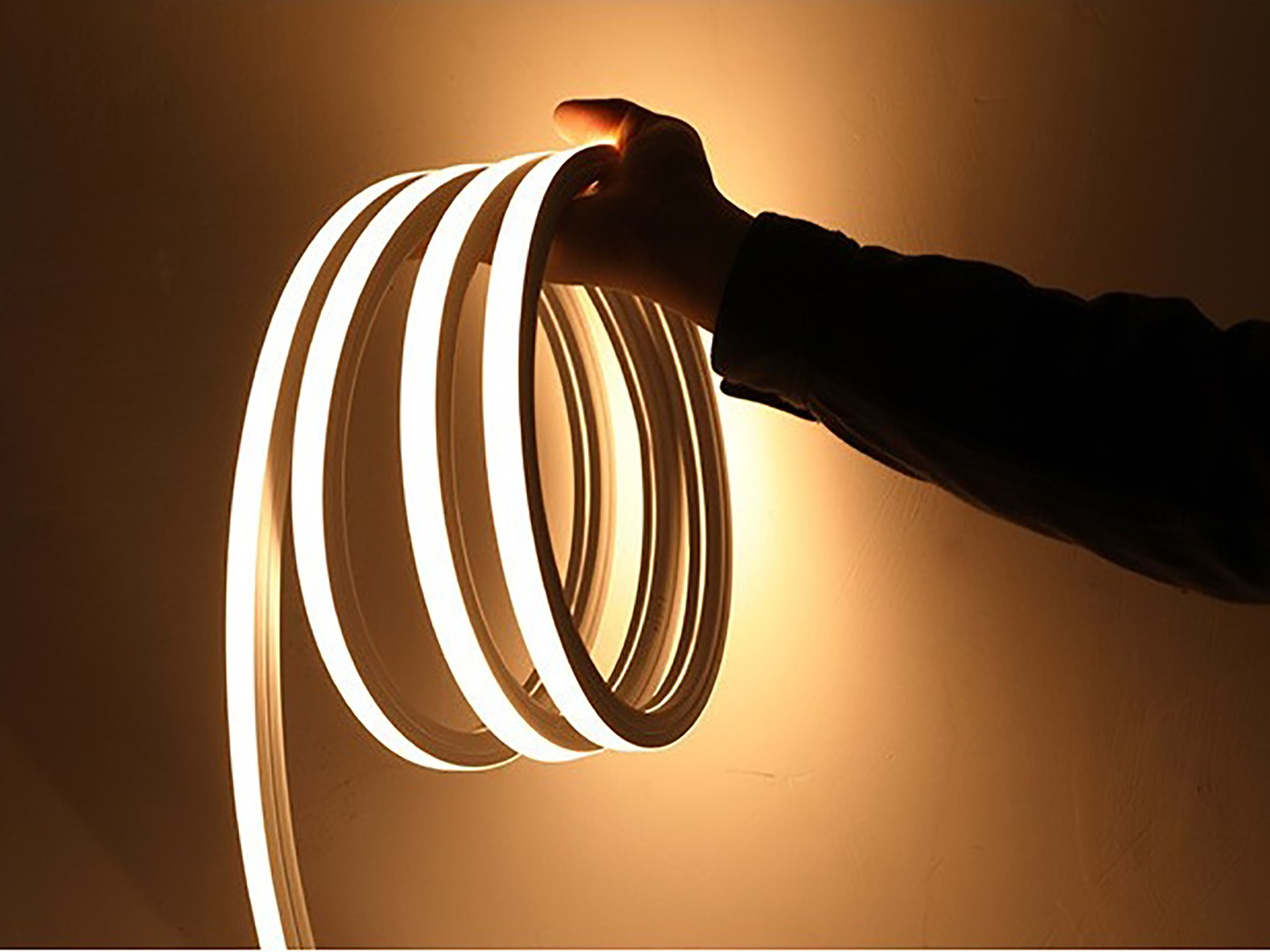

Mechanical Performance | Min Bending Radius: ≥60mm (Flexible, Suitable for Arc & Corner Installation); Cutting Unit: 25mm per Cut (Customizable) |
Color Temperature | 2700K (Warm White) ~ 6500K (Cool White), RGB/RGBW (Optional), Color Consistency: ΔE < 3 |
Working Environment | Working Temperature: -25℃ ~ +65℃; Humidity: 0% ~ 95% (No Condensation) |
Installation Method | 3M High-Temperature Resistant Self-Adhesive Tape; Optional Heavy-Duty Aluminum Profile (for Engineering Fixation) |
Application Scenarios | Outdoor Building Outline, Hotel Facade Lighting, Shopping Mall Ceiling Linear Lighting, Airport Terminal Decoration, High-End Residential Decoration, Commercial Showcase Lighting (Differentiated from Small-Size Models for Home Use) |

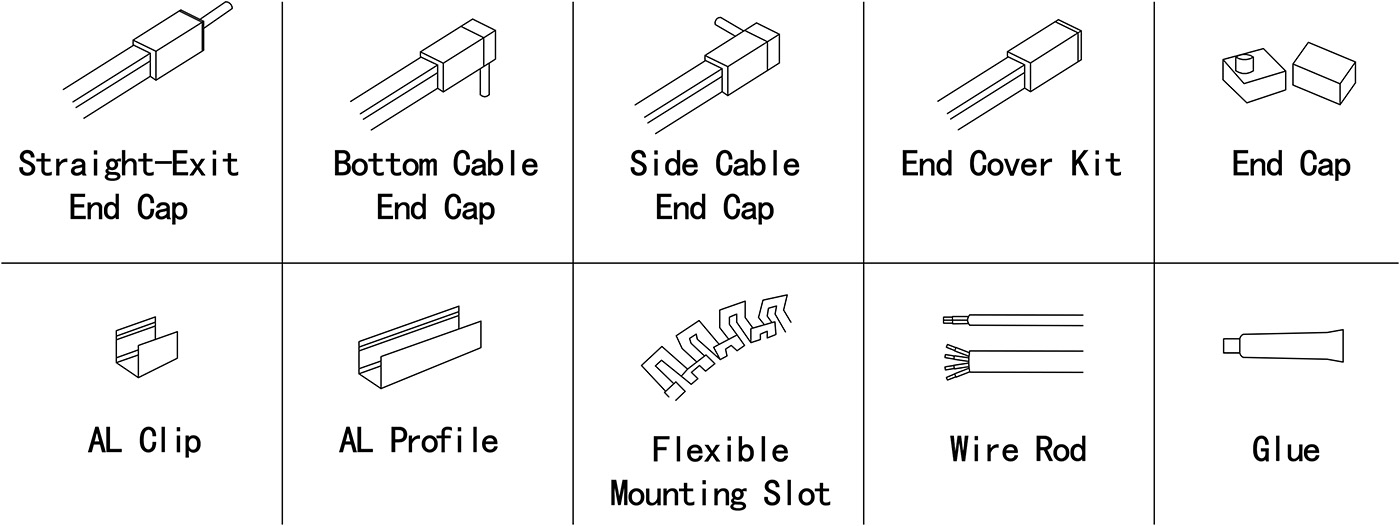

Packaging & Accessories | Standard Packaging: 5m/Roll, 10m/Roll (Custom Length for Engineering); Accessories: Anti-Rust End Caps, High-Conductivity Terminal Blocks, Fixing Buckles |
Quality & Warranty | Service Life: 50,000 Hours; Warranty Period: 2 Years (3 Years for Engineering Bulk Orders); 100% QC Before Shipment |
Flat Structure Differentiation: 20×10mm flat design, thinner than square models (such as 1616), more suitable for narrow and long installation slots, no space occupation, and wider light coverage.
Engineer-Grade Durability: Optional three-color co-extruded silicone, which is 30% more anti-yellowing and tear-resistant than ordinary silicone, suitable for long-term outdoor use and large-scale engineering projects.
High Compatibility: Supports high-density LED chips (240 LEDs/m) and wide color temperature range (2700K~6500K), meeting both commercial brightness needs and home decoration ambiance needs.
Strong Load-Bearing Capacity: Thickened FPC circuit board and high-conductivity copper, low voltage drop, suitable for long-distance installation (24V maximum 15m), reducing engineering wiring costs.
![]()
![]()
