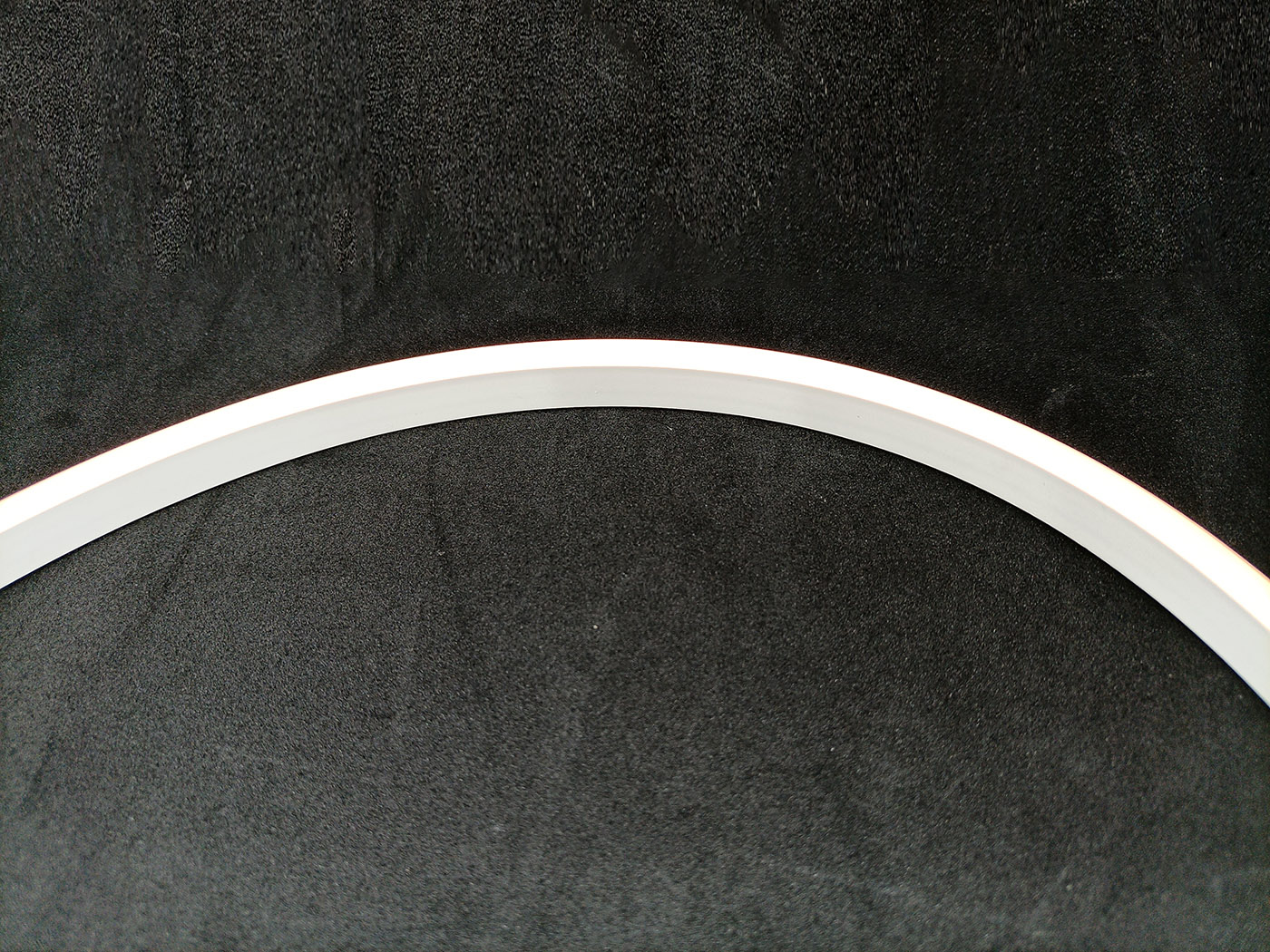

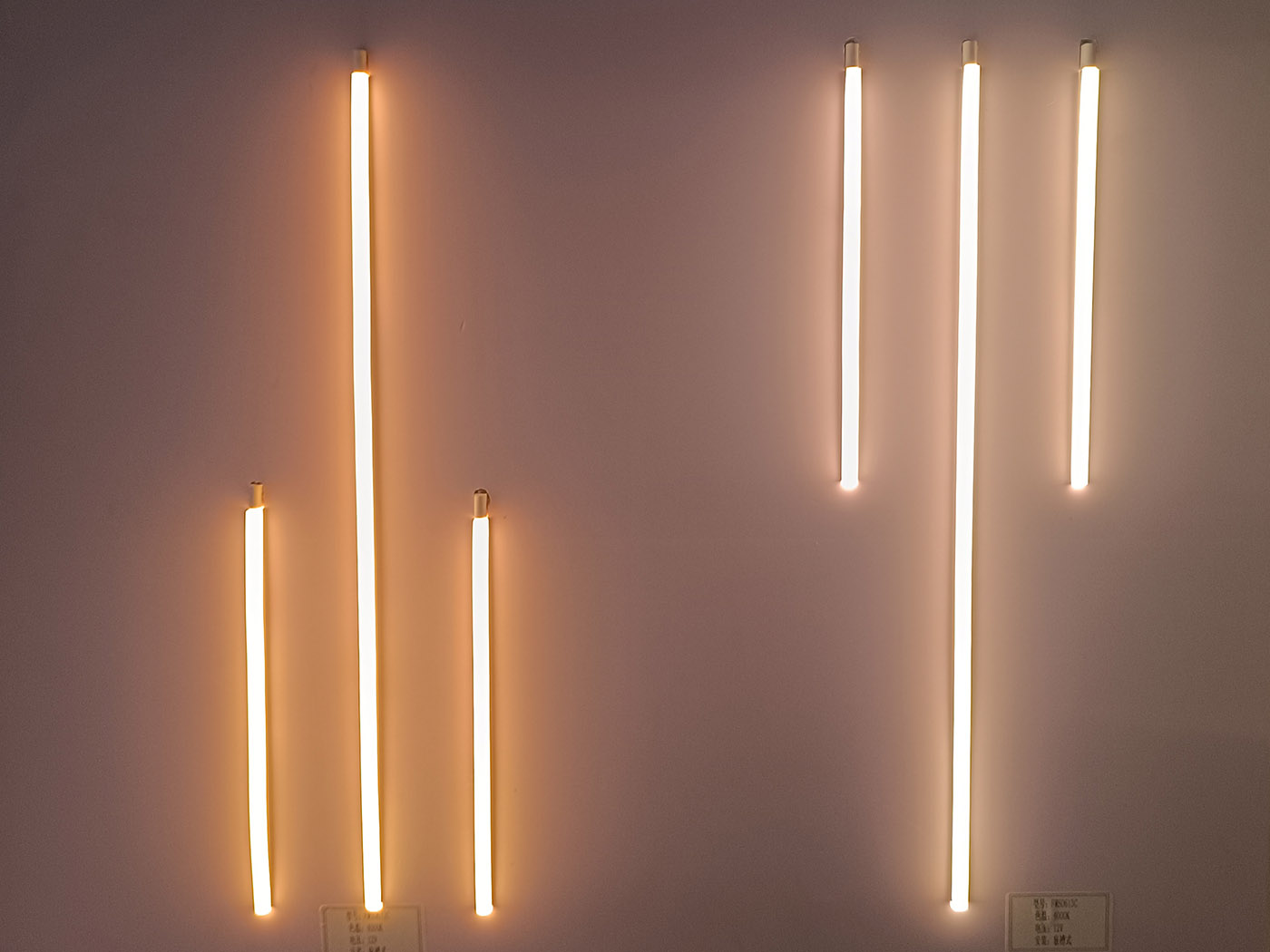

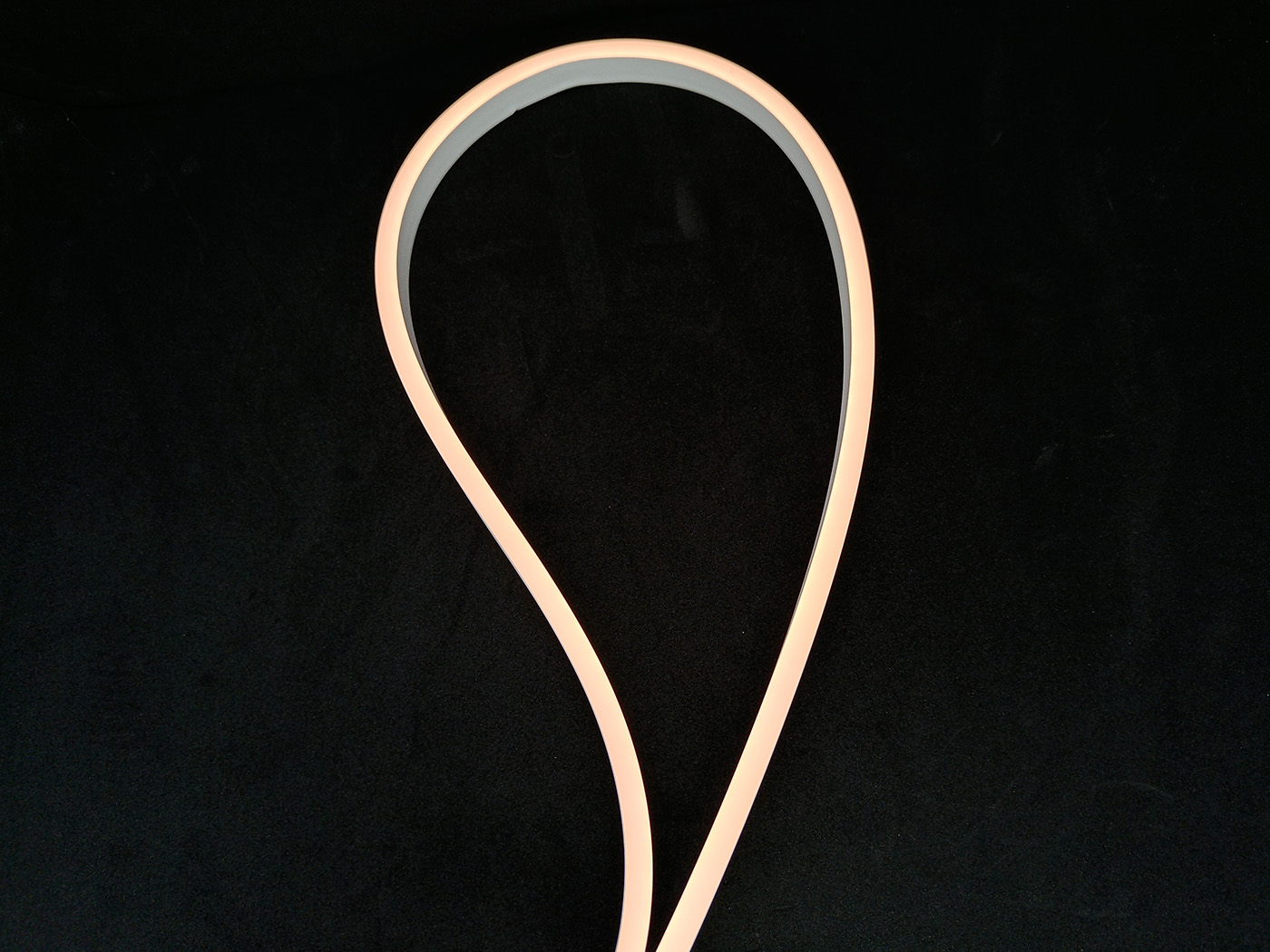

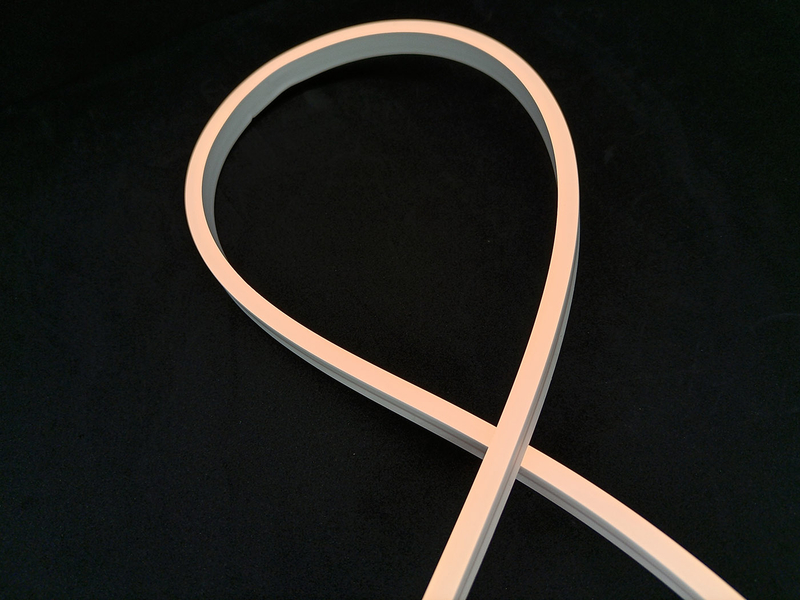

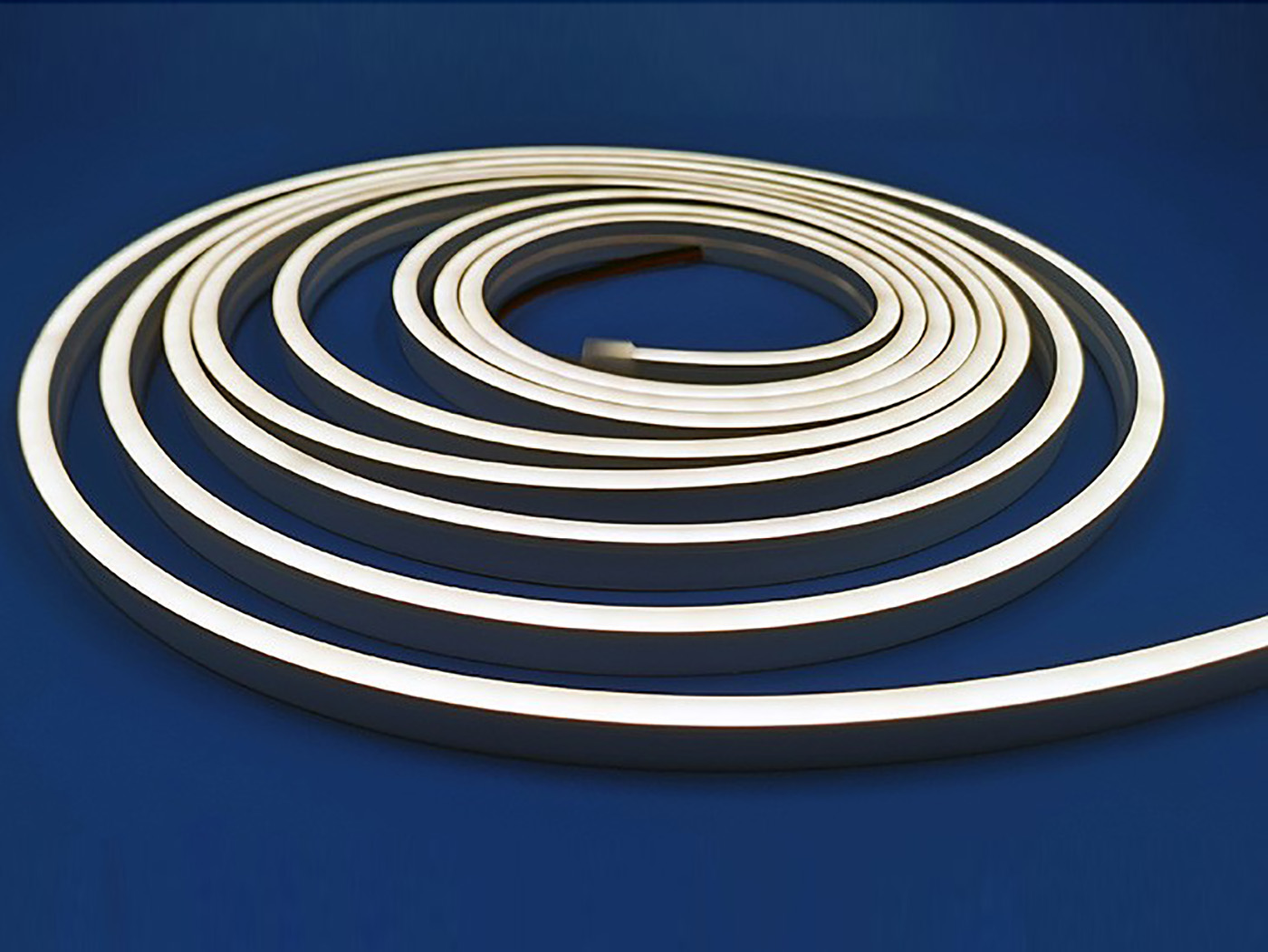

0613 Mushroom Head Neon Strip


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FW-S-0613｜Size: 6mm × 13mm｜Mushroom Head Profile｜Side

Product Features

Unique mushroom head profile for better light gathering & softer illumination
Side emitting design with optimized optical structure
Highquality antiyellowing integrated extrusion silicone
IP67 waterproof, dustproof and flexible for curved installation
3oz thick FPC, low voltage drop, stable brightness for long runs
LM80 certified LED for long lifespan & high reliability
Suitable for narrow slots, cabinet, wardrobe, ceiling cove lighting

Model:
FW-S-0613

Mushroom Head Neon Strip Side Emitting LED Neon Strip IP67 Silicone Neon Light Mushroom Head Side Emitting Neon Strip IP67 Waterproof Neon Strip Decorative Side Emitting Neon Light Side Glow Mushroom Head LED Strip

Product Description

Typical Applications

Hotel & commercial interior decoration
Cabinet & wardrobe lighting
Narrow slot & concealed linear lighting
Ceiling cove & wall outline lighting
Furniture & display showcase lighting

Core Specifications

Item	Specification
Model Number	FW-S-0613
Product Size	6mm (Width) × 13mm (Height)
Profile Style	Mushroom Head
Emitting Type	Side Emitting
LED Type	SMD 2835 High Brightness
LEDs per Meter	120 LEDs/m
Input Voltage	DC 24V
Power Consumption	10W/m
Beam Angle	180°
Waterproof Grade	IP67
Minimum Bending Radius	≥ 35mm
Cutting Unit	6 LEDs / 50mm
Color Temperature	2700K / 3000K / 3500K / 4000K / 6000K
CRI	Ra ≥ 80 (Ra ≥ 90 optional)
Silicone Material	Anti yellowing integrated extrusion silicone
Working Temperature	-20℃ ~ +45℃
Installation	3M tape / slim aluminum channel / clip mounting
Standard Length	5m/roll
Lifetime	50,000 hours
Warranty	3 Years

Bending Direction

Side bend (vertical to the light-emitting surface)Min. bending diameter: D ≥ 35mm

Optional Accessories

Connection wire
Side end cap
Special mounting clip for mushroom-head profile
Slim aluminum channel
DC 24V constant voltage LED driver
