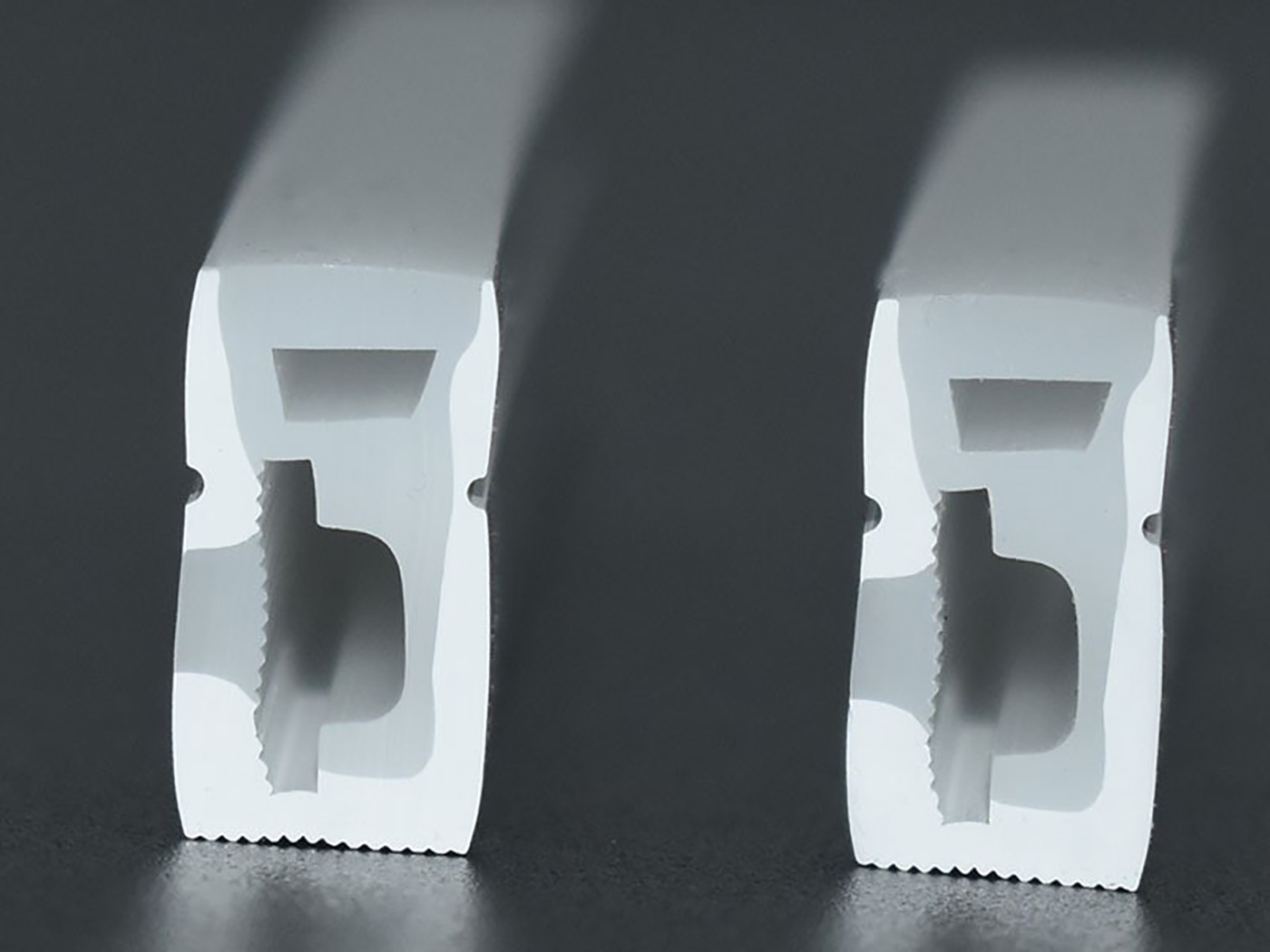

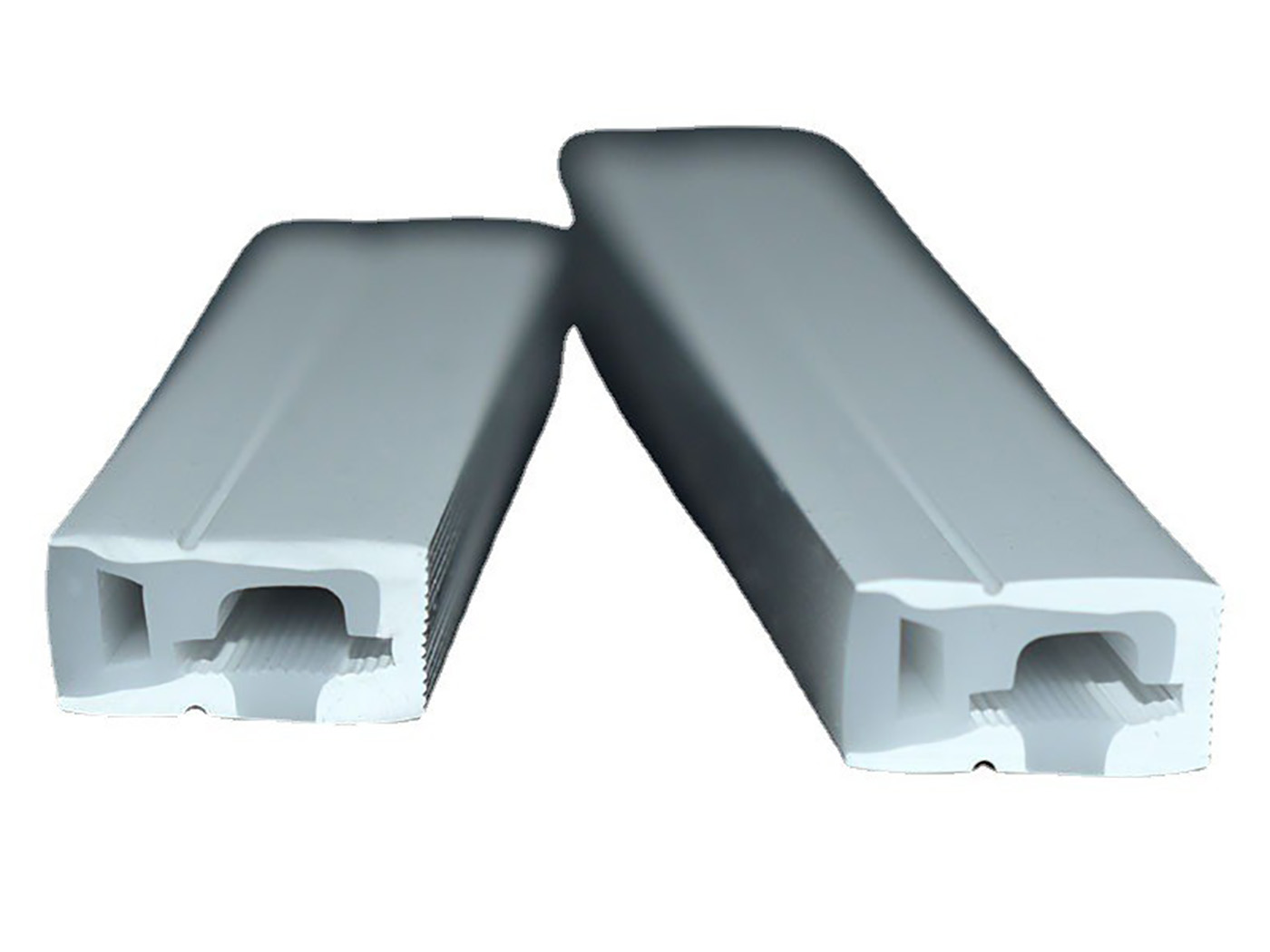

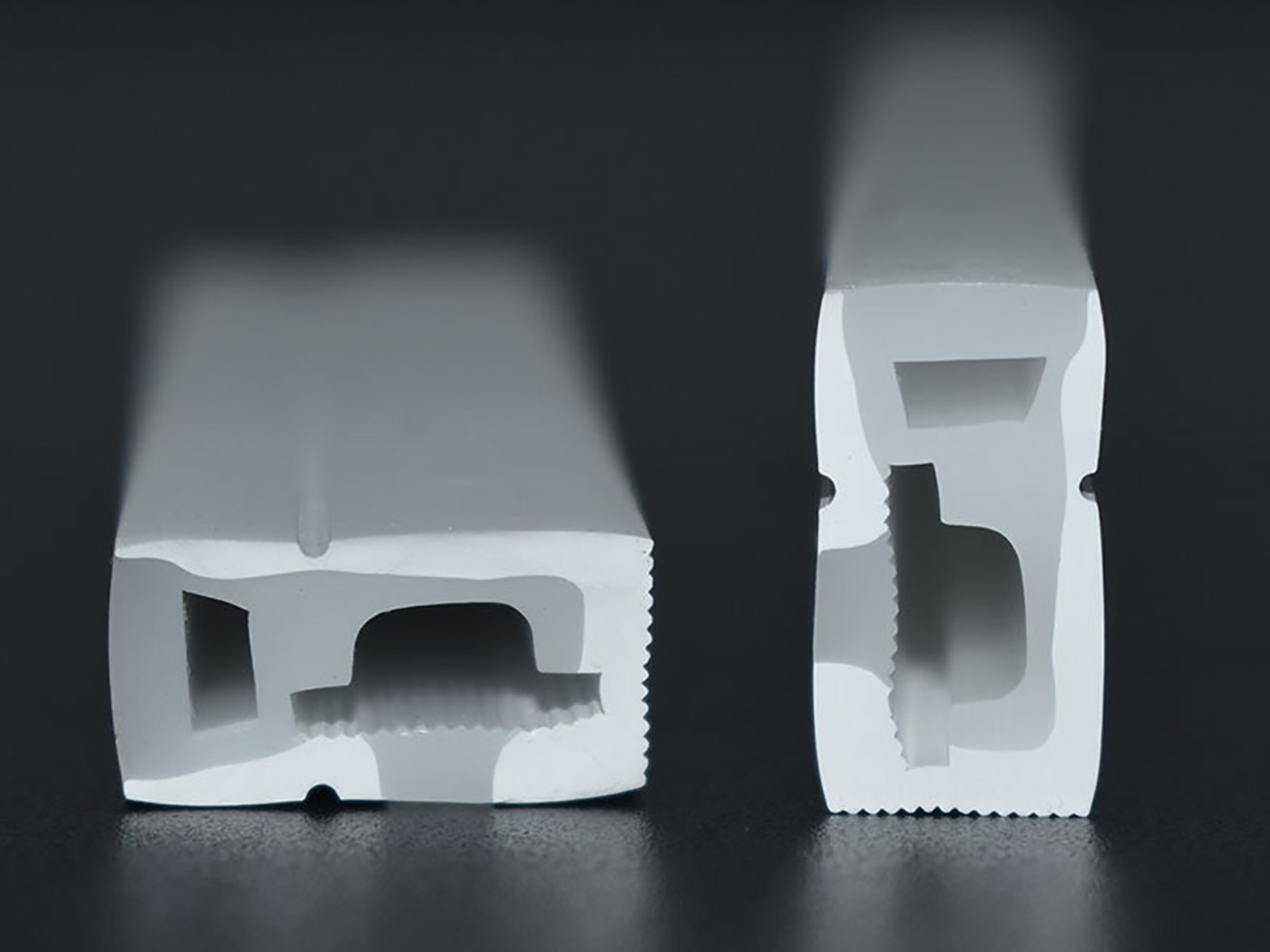

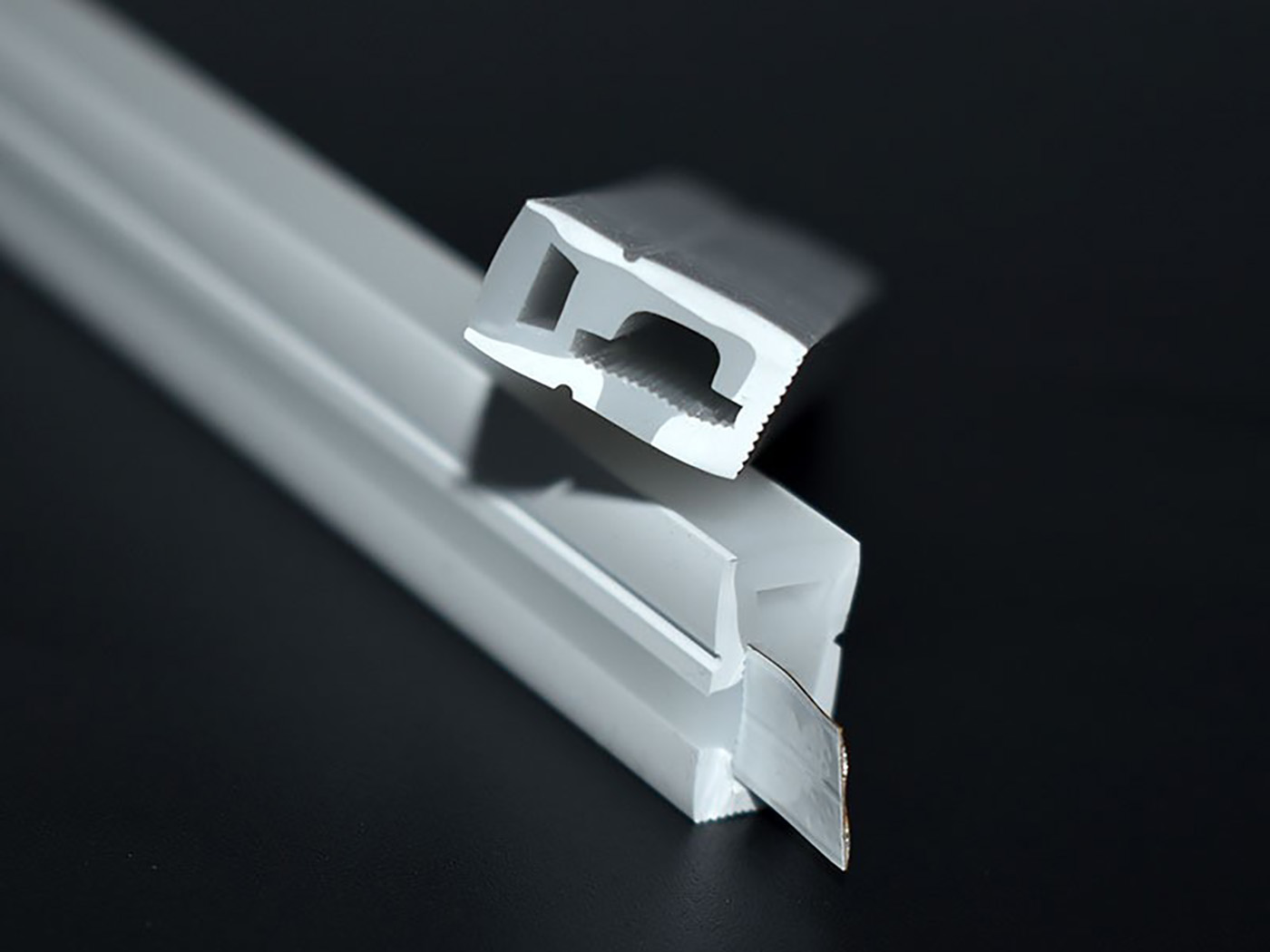

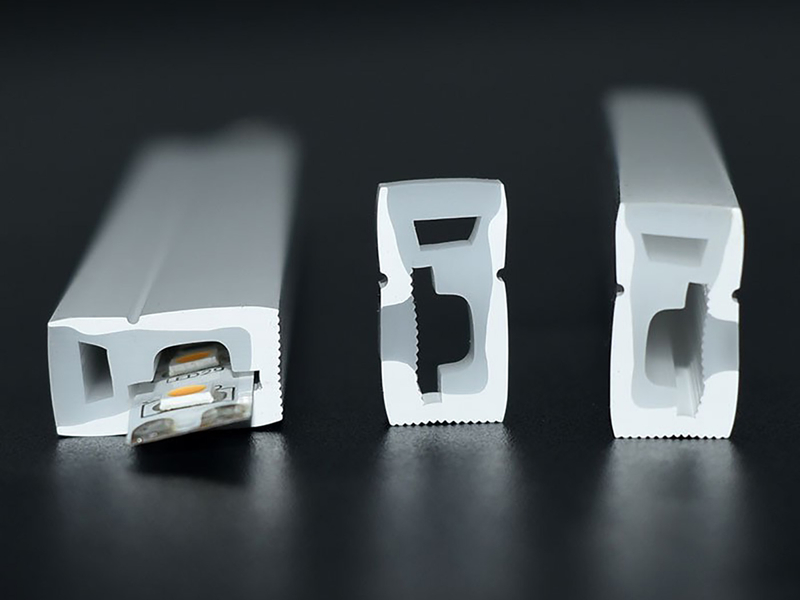

Soft Easy Bendable 8x16mm Insert Type Flat LED Strip Silicone Profile Led Strip for Linear Light


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FC0816 | Outer Size: 8mm(W)×16mm(H) | Engineering-Grade Side-Emitting Silicone Tube

Model:
FW-T-0816

Flat Led Strip Silicone Profile 8X16Mm Silicone Neon Tube Cover Insert Type Recessed Neon Diffuser Bendable Linear Light Cover Recessed Neon Tube Sleeve 8*16Mm Led Strip Diffuser Flexible Silicone Neon Profile Easy Bend Neon Tube Cover

Product Description

Core Specifications

Item	Standard Specification
Model Number	FC0816
Outer Dimension	8mm × 16mm (Rectangular Profile)
Inner Dimension	6mm × 14mm (fits 8mm wide bare side-emitting LED strips)
Uniform Wall Thickness	1mm
Silicone Material	Engineering-grade fumed silica, anti-yellowing anti-UV formula
Hardness	35±5 Shore A
Waterproof Grade	IP67 (after sealed with matching end caps & silicone glue)
Working Temperature Range	-40℃ ~ +120℃
UV Resistance	Grade 5, long-term outdoor anti-aging
Light Transmittance	≥90% (high transparent version)
Standard Roll Length	50m/roll, 100m/roll (custom length available)

Key Features

Thick-wall structure, impact-resistant, anti-scratch, suitable for harsh environment use
Engineering-grade large side-emitting profile, specially designed for 8mm wide high-power side-emitting LED strips, provides full IP67 waterproof and anti-aging protection
Moderate hardness, good shaping performance, no deformation after long-term outdoor use, supports long-distance installation
Fully compatible with 8×16mm neon strip mounting clips, aluminum channels and engineering installation accessories

Optional Types

Type	Core Feature	Application Scenario
High Transparent Version	≥90% light transmittance, minimal brightness loss	Outdoor engineering, building facade side-emitting lighting
Milky White Diffusion Version	Uniform soft glow, no visible LED dots, anti-glare	Large commercial space, hotel interior lighting
Black Light-Blocking Version	Non-emitting surface light blocking, no stray light	Large-scale concealed linear lighting projects

Typical Applications

Outdoor building facade, bridge contour side-emitting lighting strip protection
Municipal engineering, park landscape side-emitting strip waterproof upgrade
Large hotel, commercial complex interior side-emitting lighting strip protection
Large-scale stage, event venue decorative lighting strip protection

Matching Accessories

IP67 engineering-grade waterproof connectors
FC0816 dedicated waterproof end caps
Food-grade silicone sealant
8mm heavy-duty mounting clips
8×16mm aluminum mounting channels

Detail
