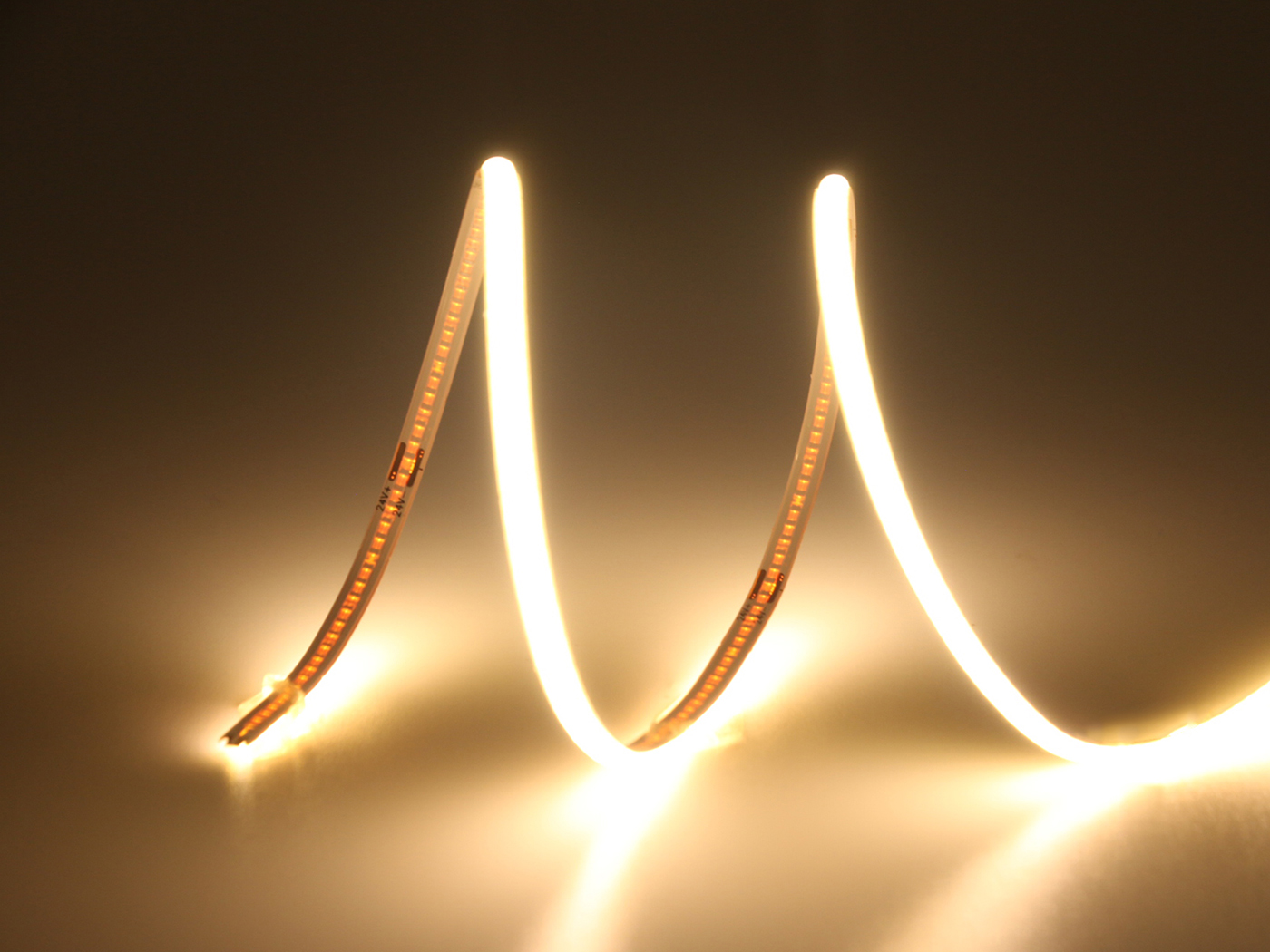

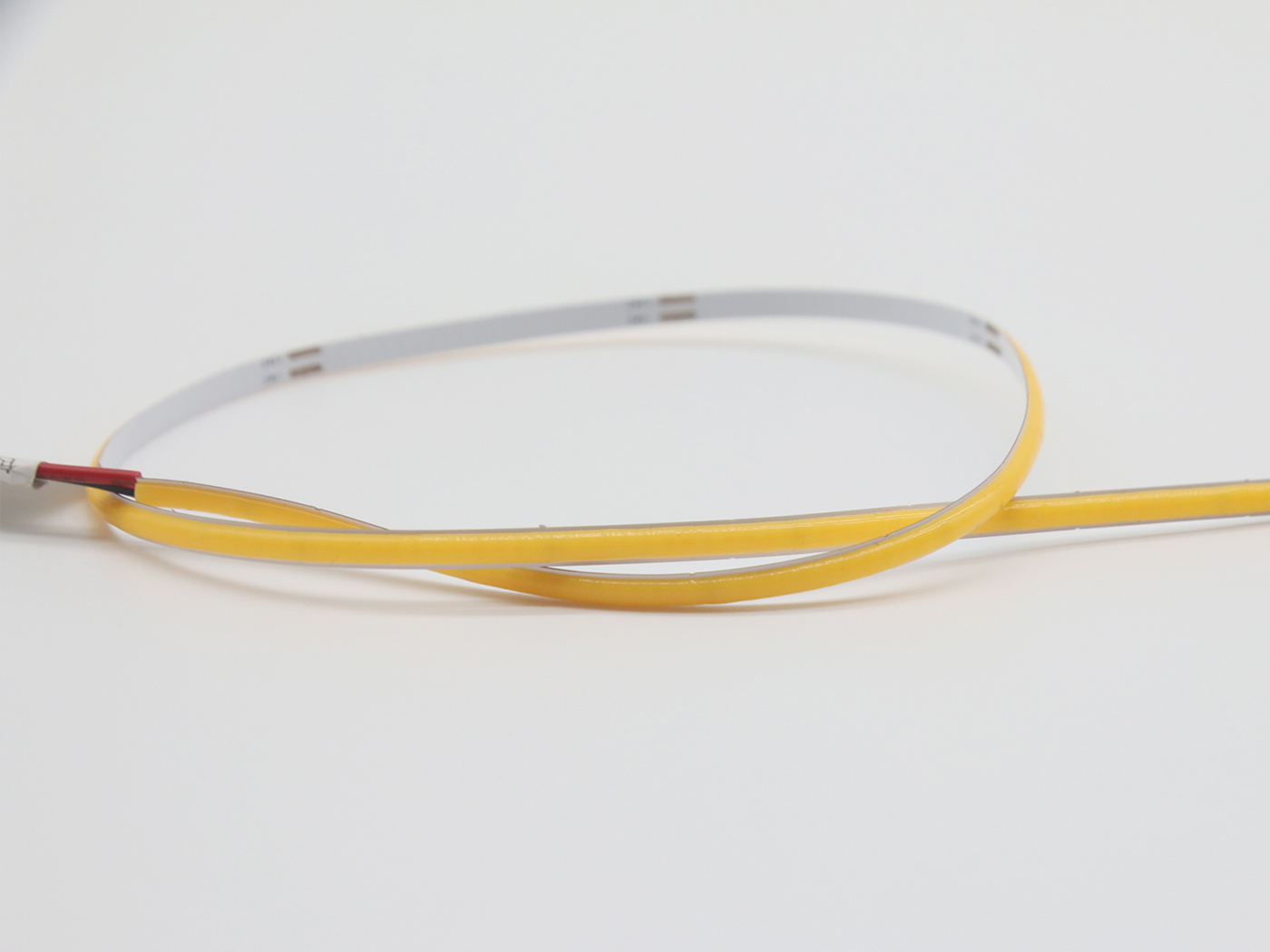

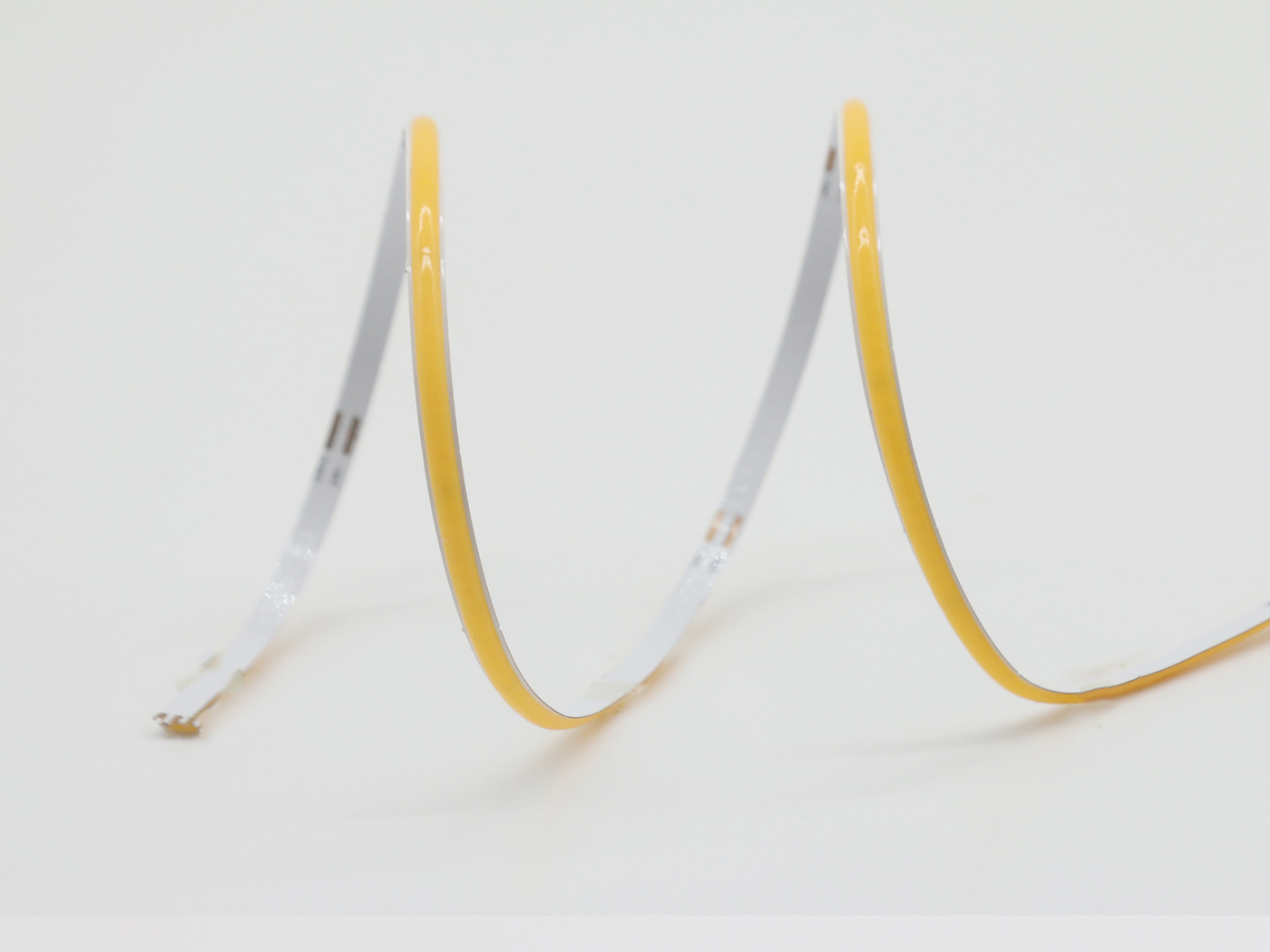

5mm Ultra Narrow PCB — fits slim channels, tight gaps, cabinet & profile lighting

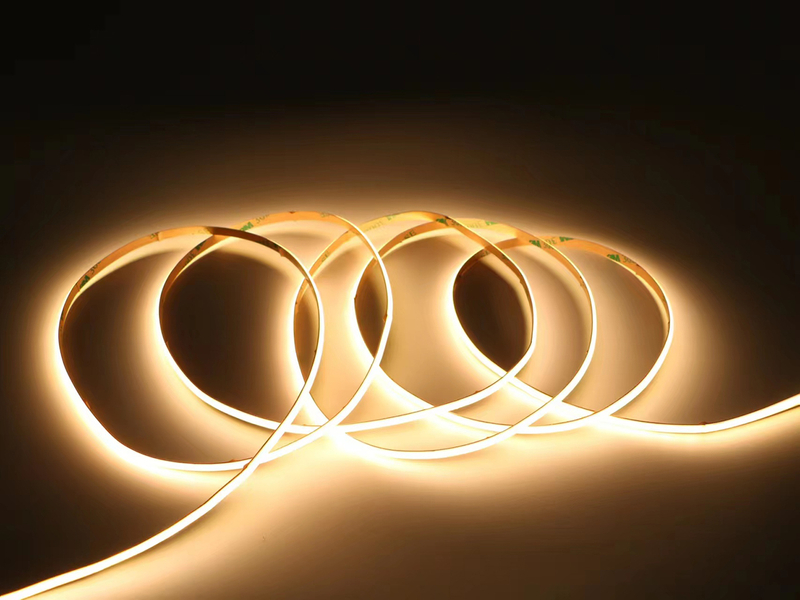

Dot Free COB Technology — seamless continuous light, no LED dots
High Density 480 LEDs/m — super smooth & bright illumination
High CRI Ra>90 — true color rendering, premium indoor lighting
Dual Voltage: DC12V / DC24V — safe low voltage, easy installation
3M Adhesive Backing — peel & stick, no extra tools
Long Lifespan 50,000hrs — L70, reliable for commercial projects
3 Years Warranty — quality guaranteed
Input Voltage: DC 12V / 24V (±10%)
Power Consumption: 7W/m (12V) / 8W/m (24V)
Current: 0.58A/m (12V) / 0.33A/m (24V)
LED Type: COB (Chip on Board), Flip Chip
LED Density: 480 LEDs/m
Color Temperature (CCT): 2700K / 3000K / 4000K / 5000K / 6000K
CRI: Ra > 90 (Ra>94 optional)
Luminous Flux: 500–550 lm/m
Efficacy: ≈75–80 lm/W
Beam Angle: 180°
SDCM: 3 step MacAdam ellipse
PCB Width: 5mm (Ultra Narrow)
PCB Thickness: 1.2mm
Protection Rating: IP20 (Indoor) / IP65 optional
Operating Temp: −20°C ~ +60°C
Storage Temp: −30°C ~ +70°C
Cutting Unit: 12V = 10mm; 24V = 20mm
Max Run Length: 5m (12V) / 10m (24V)
Back Adhesive: 3M Tape
Cabinet lighting, wardrobe, shelf, kitchen
Cove lighting, ceiling, wall, stair lighting
Hotel, office, mall, retail display
Slim aluminum profile, narrow channel projects
DIY home decoration & accent lighting

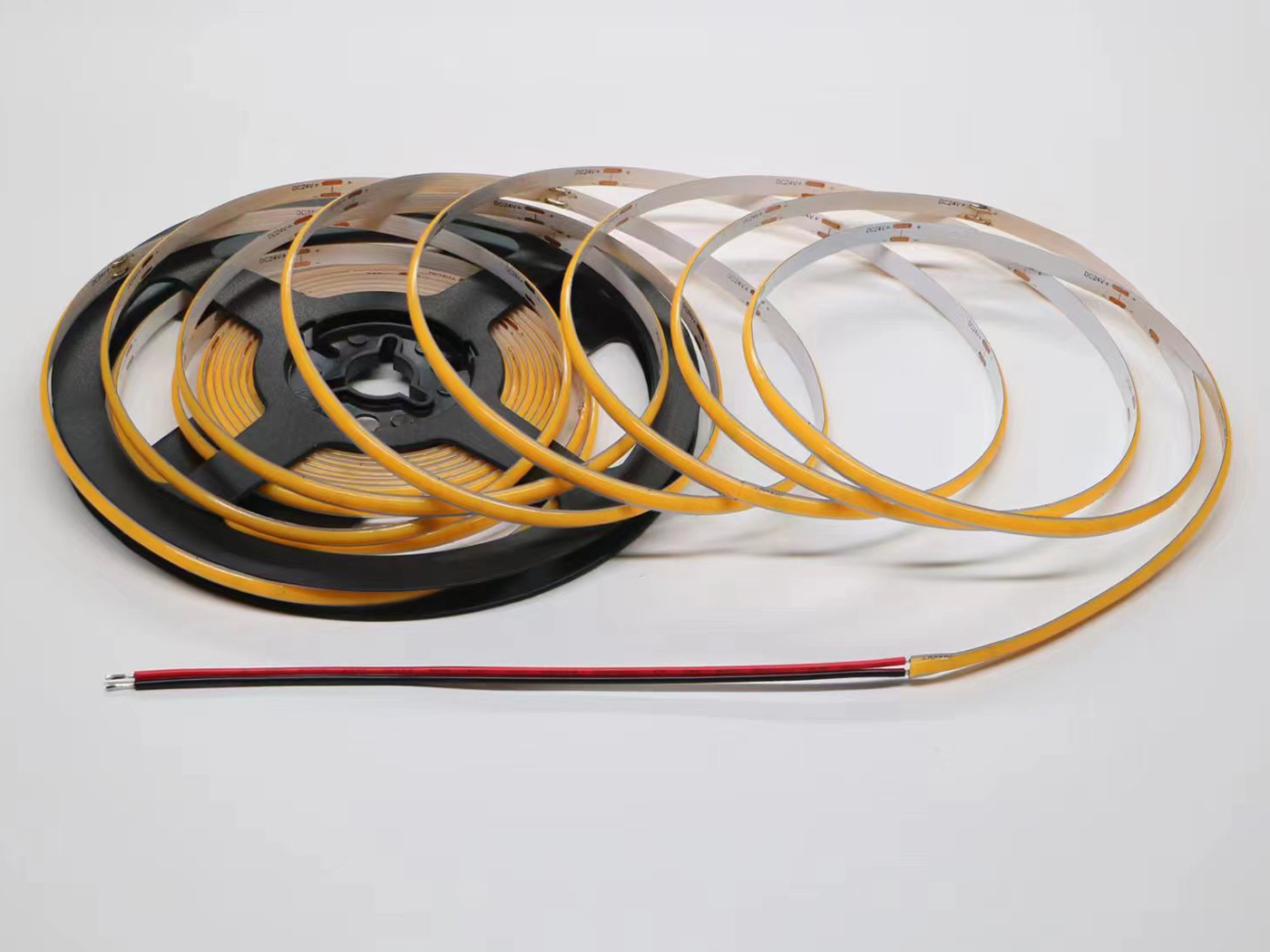

Standard Length: 5m / reel
Package: Anti static bag + white box
Certifications: CE, RoHS, EMC (UL/FCC optional)
Warranty: 3 Years
Use constant voltage driver only.
12V: max 5m per power feed to avoid voltage drop.
IP20 for indoor dry use; IP65 for damp locations.
