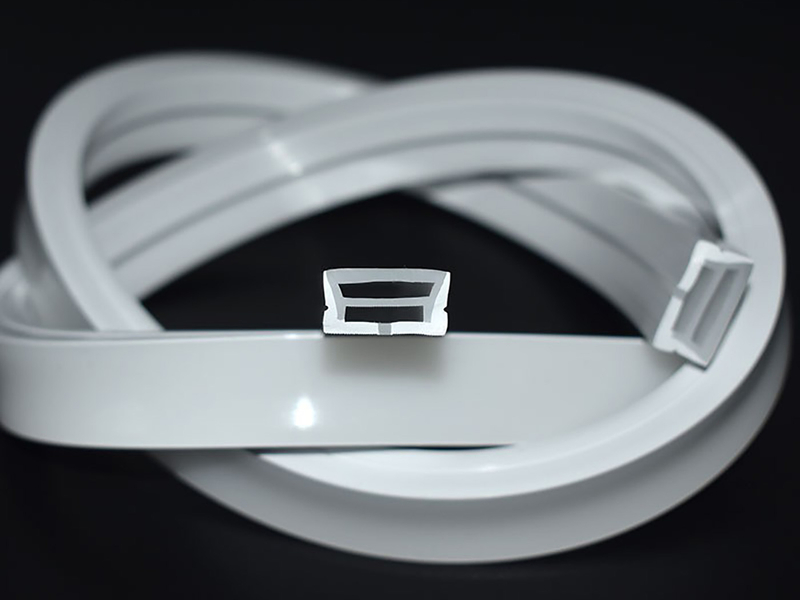

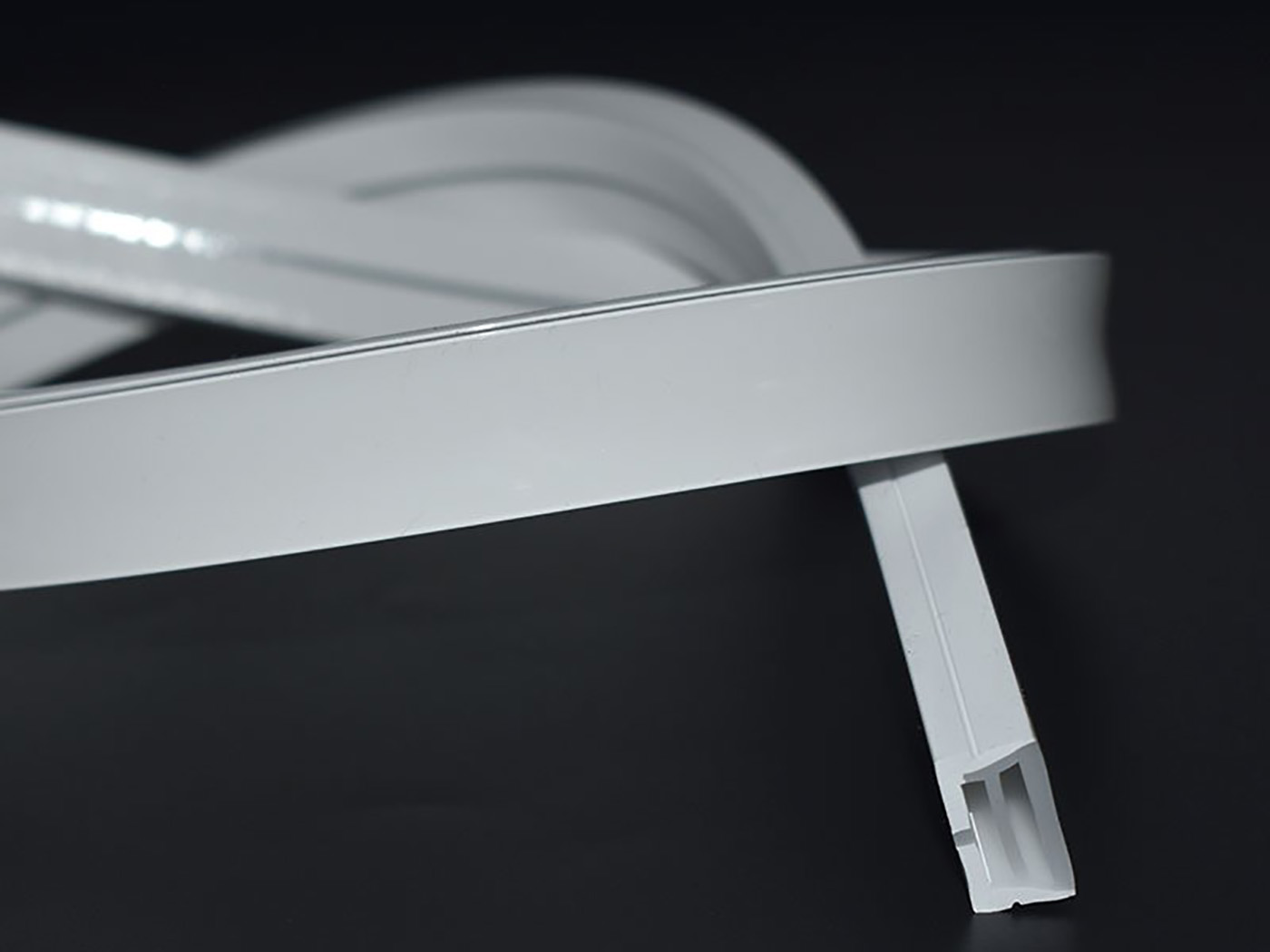

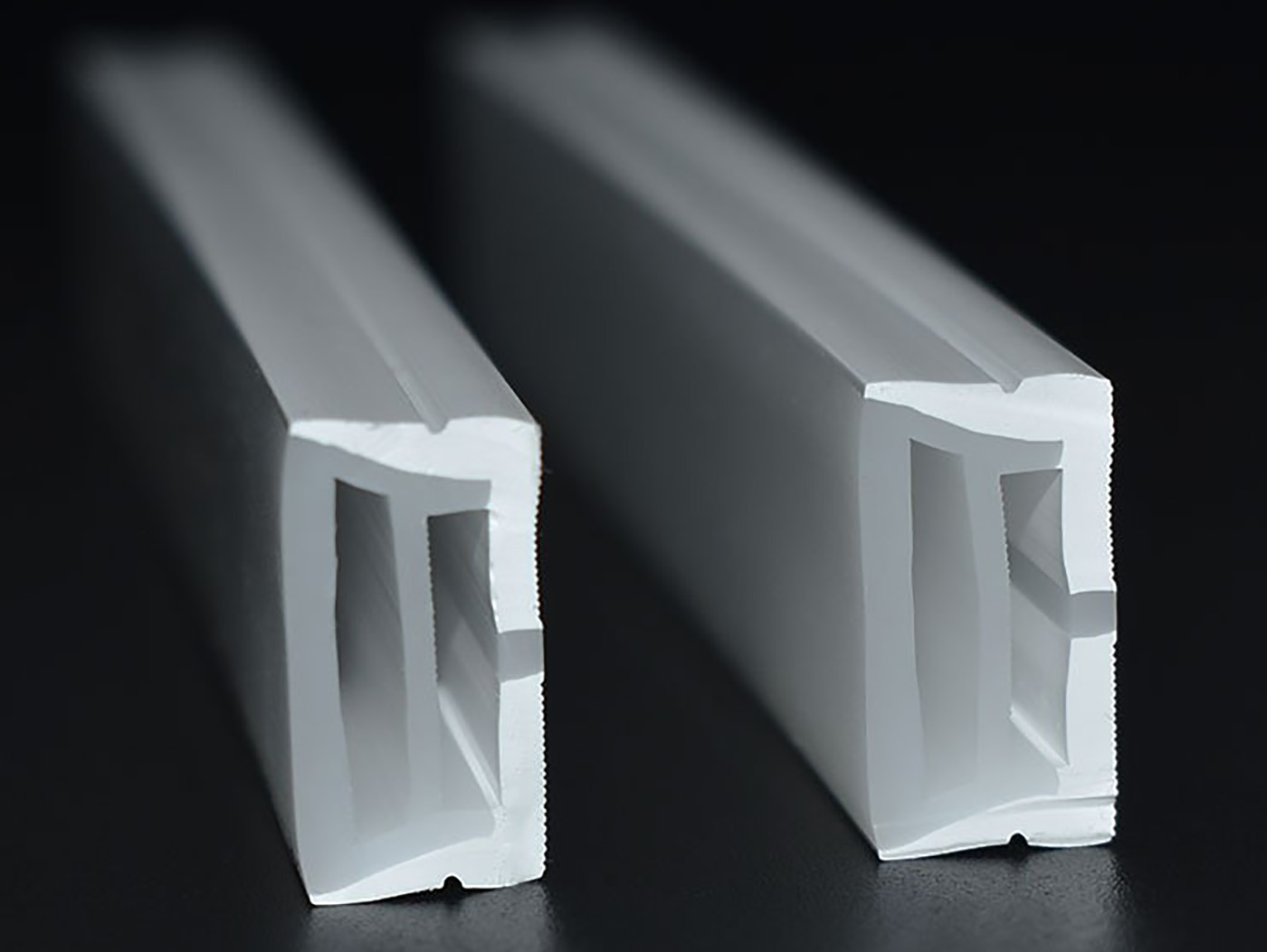

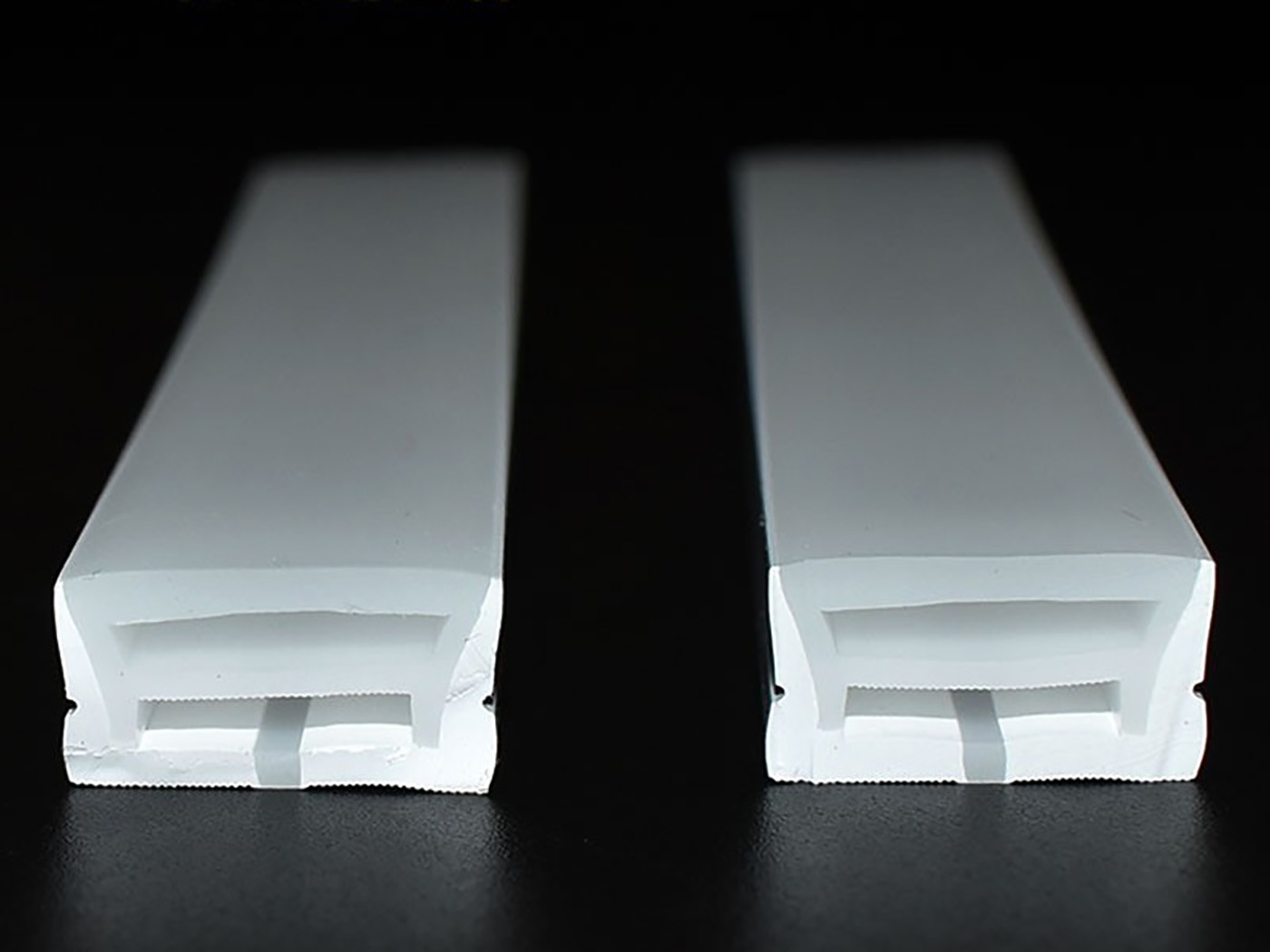

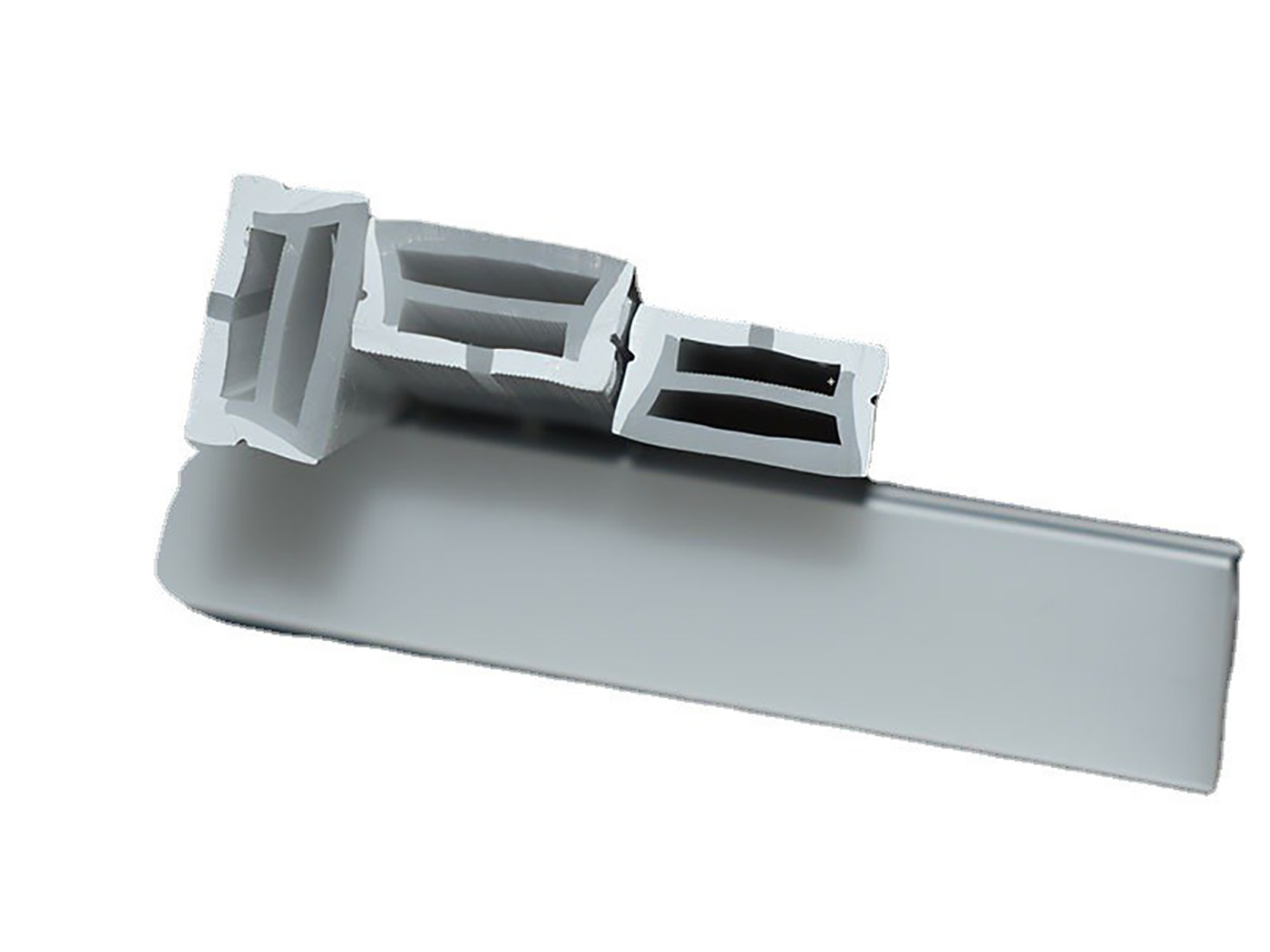

20x10mm Square Top View Neon Sleeve


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FC2010 | Outer Size: 20mm(W)×10mm(H) | Wide Flat Top-Emitting Silicone Tube

Model:
FW-T-2010

Square Top View Neon Sleeve 20X10Mm Silicone Neon Tube 8Mm 10Mm Pcb Silicone Cover Flexible Linear Light Channel Rope Type Silicone Neon Tube 20*10Mm Led Strip Sleeve Linear Light Silicone Cover PCB Led Strip Protector Square Silicone Light Channel

Product Description

Core Specifications

Item	Standard Specification
Model Number	FC2010
Outer Dimension	20mm × 10mm (Flat Rectangular Profile)
Inner Dimension	18mm × 8mm (fits 15mm wide bare double-row LED strips)
Uniform Wall Thickness	1mm
Silicone Material	Food-grade fumed silica, anti-yellowing formula
Hardness	30±5 Shore A
Waterproof Grade	IP67 (after sealed with matching end caps & silicone glue)
Working Temperature Range	-40℃ ~ +120℃
UV Resistance	Grade 4-5, long-term anti-aging
Light Transmittance	≥90% (high transparent version)
Standard Roll Length	50m/roll, 100m/roll (custom length available)

Key Features

Wide flat profile, specially designed for 15mm wide double-row high-power LED strips, provides full IP67 waterproof, dustproof and scratch-resistant protection
Ultra-wide light-emitting surface, uniform large-area glow, no visible LED dots
Soft and flexible, easy to bend, no cracking or deformation after long-term use
Fully compatible with 20×10mm mounting clips, aluminum channels and installation accessories

Optional Types

Type	Core Feature	Application Scenario
High Transparent Version	≥90% light transmittance, minimal brightness loss	High brightness wide-area lighting, outdoor contour lighting
Milky White Diffusion Version	Uniform soft glow, no visible LED dots, anti-glare	Indoor commercial display, cabinet wide lighting
Black Light-Blocking Version	Side & back light blocking, only front emitting	Concealed wide linear lighting, anti-light interference scenes

Typical Applications

Outdoor building wide contour lighting strip waterproof upgrade
Commercial showcase, display cabinet wide-area lighting strip protection
Cabinet, wardrobe, furniture wide linear lighting strip protection
Ceiling cove, wall outline wide decorative lighting strip protection

Matching Accessories

IP67 waterproof connectors
FC2010 dedicated waterproof end caps
Food-grade silicone sealant
20mm wide mounting clips
20×10mm aluminum mounting channels

Detail
