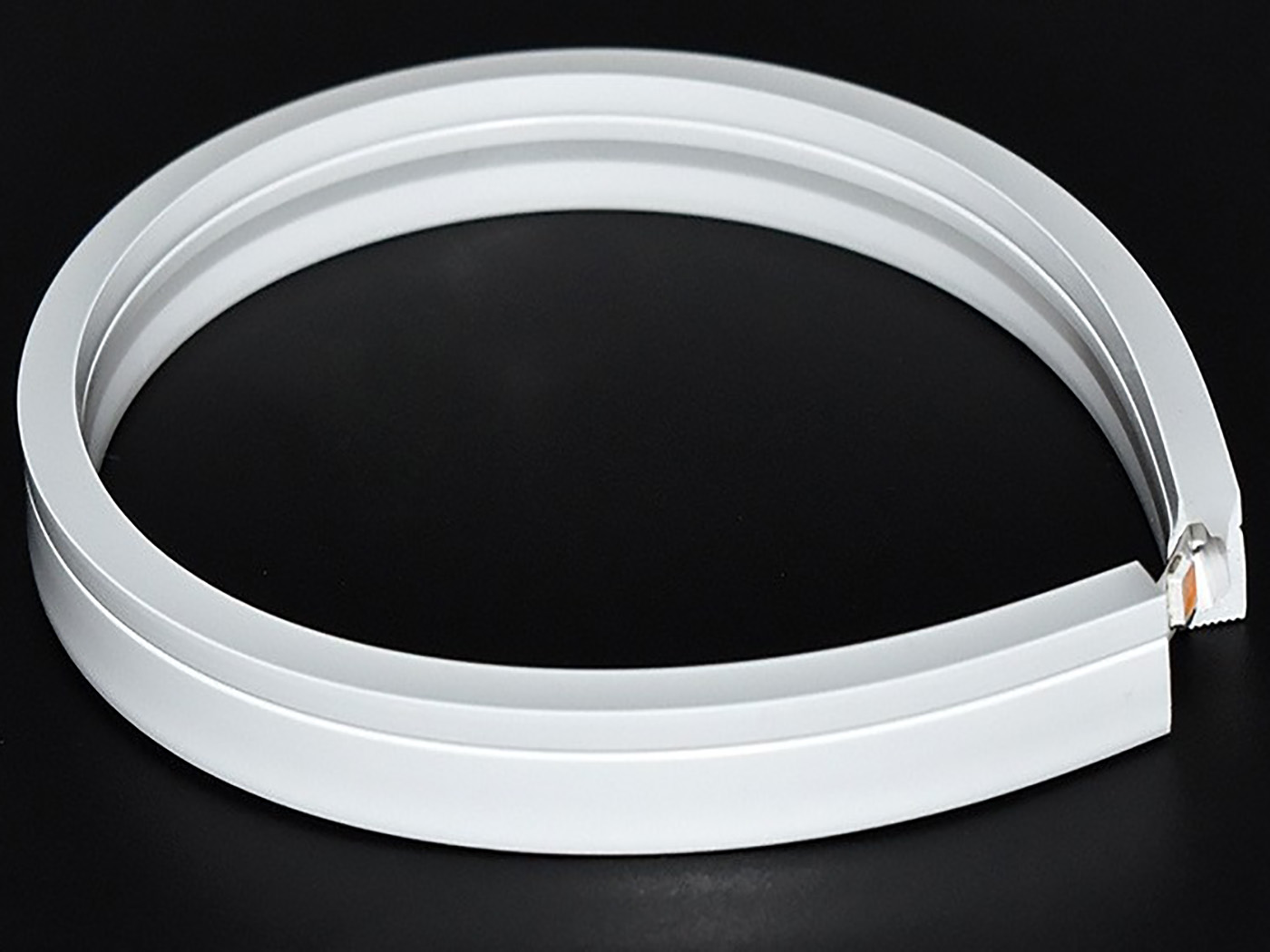

Side-emitting 4x10mm LED Strip Silicone Sleeve


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FW-T-0410 | Outer Size: 4mm(W)×10mm(H) | Slim Side-Emitting Silicone Sleeve

Model:
FW-T-0410

Led Strip Silicone Sleeve 4X10Mm Side-Emitting Neon Sleeve Side Emitting Light Strip Cover Flexible Neon Light Sleeve 4*10Mm Led Strip Tube Neon Sleeve Side Glow Silicone Cover Flexible Light Strip Protector Side-Emitting Led Sleeve

Product Description

Core Specifications

Item	Standard Specification
Model Number	FW-T-0410

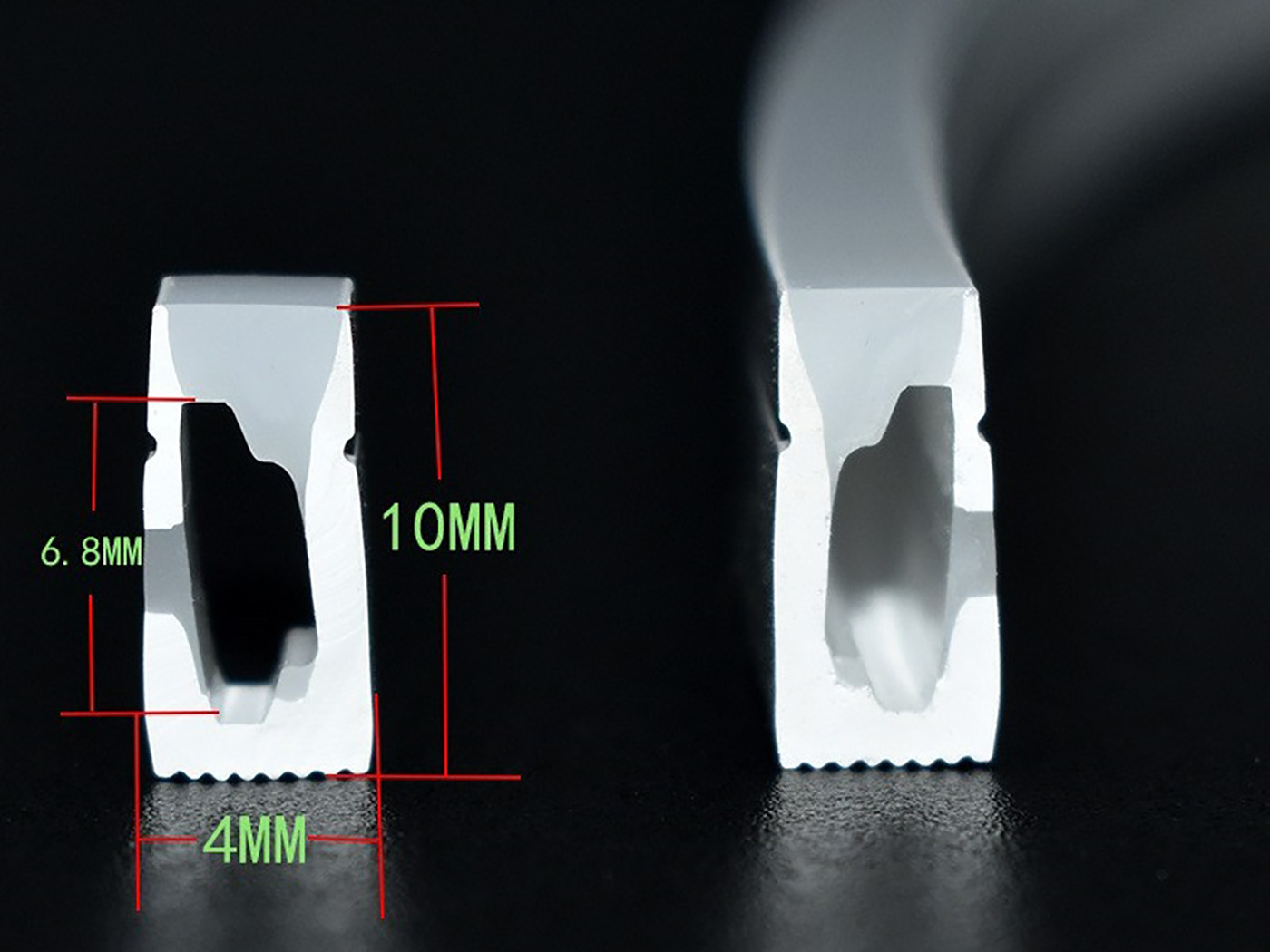

Outer Dimension	4mm × 10mm (Rectangular Profile)
Inner Dimension	2mm × 8mm (fits 3mm wide bare side-emitting LED strips)
Uniform Wall Thickness	1mm
Silicone Material	Food-grade fumed silica, anti-yellowing formula
Hardness	30±5 Shore A
Waterproof Grade	IP67 (after sealed with matching end caps & silicone glue)
Working Temperature Range	-40℃ ~ +120℃
UV Resistance	Grade 4-5, long-term anti-aging
Light Transmittance	≥90% (high transparent version)
Standard Roll Length	50m/roll, 100m/roll (custom length available)

Key Features

Optimized optical structure, uniform side light output, no light leakage
1. Standard slim side-emitting profile, specially designed for 3mm narrow side-emitting LED strips, provides full IP67 waterproof and dustproof protection
2. Ultra-soft and flexible, supports small-radius bending, no cracking or deformation after long-term use

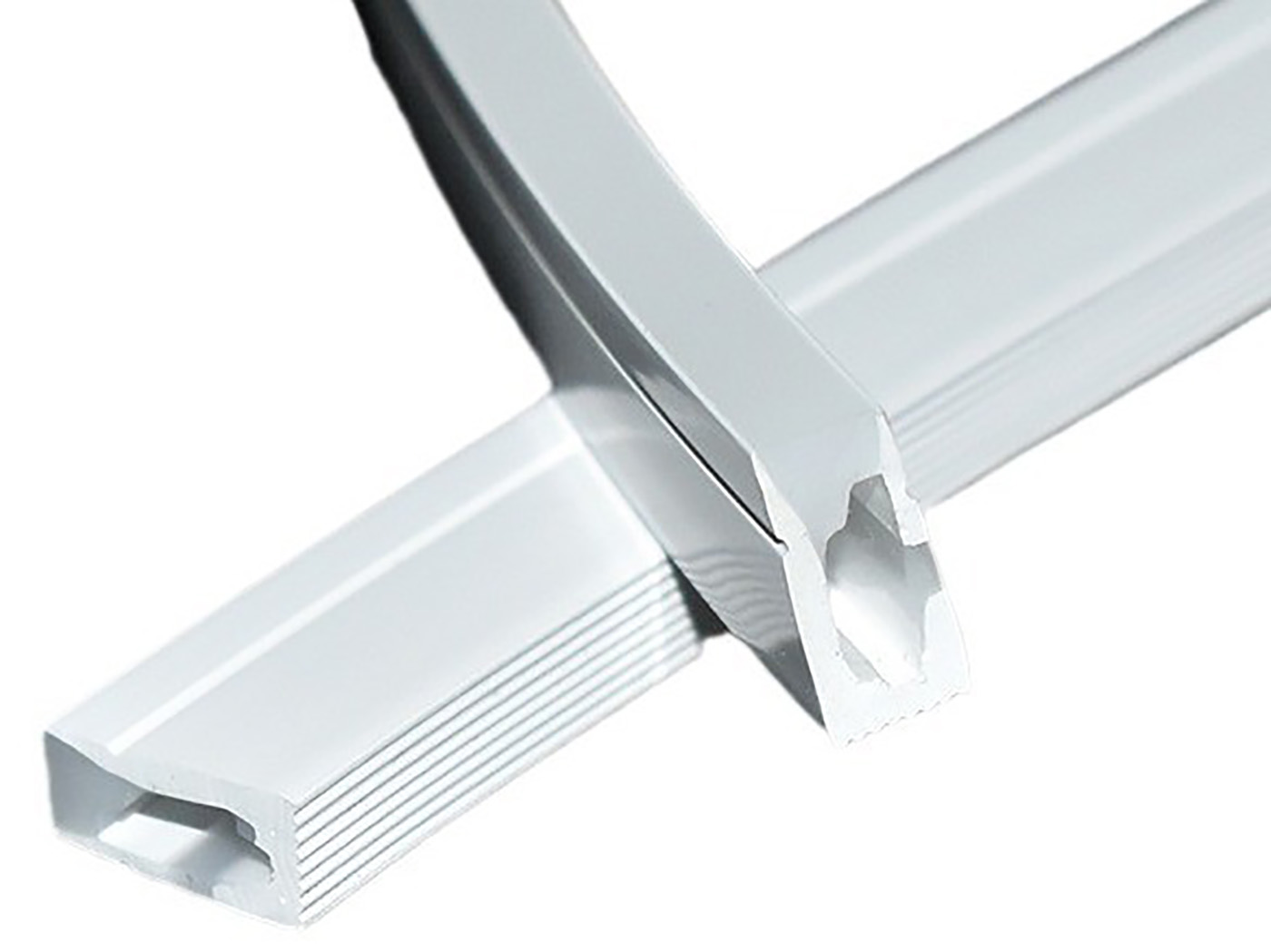

3. Fully compatible with 4×10mm neon strip mounting clips, aluminum channels and installation accessories

Optional Types

Type	Core Feature	Application Scenario
High Transparent Version	≥90% light transmittance, minimal brightness loss	High brightness side-emitting strip, outdoor contour lighting
Milky White Diffusion Version	Uniform soft glow, no visible LED dots, anti-glare	Indoor cabinet, wardrobe side-emitting lighting
Black Light-Blocking Version	Non-emitting surface light blocking, no stray light	Dark slot concealed side-emitting lighting

Typical Applications

Commercial display shelf side-emitting strip waterproof upgrade
Cabinet, wardrobe, furniture side-emitting lighting strip protection
Narrow slot hidden linear side-emitting lighting strip protection
Furniture edge, mirror frame surrounding lighting strip protection

Matching Accessories

IP67 waterproof connectors
FW-T-0410 dedicated waterproof end caps (side wire exit optional)
Food-grade silicone sealant
4mm mounting clips
4×10mm aluminum mounting channels
