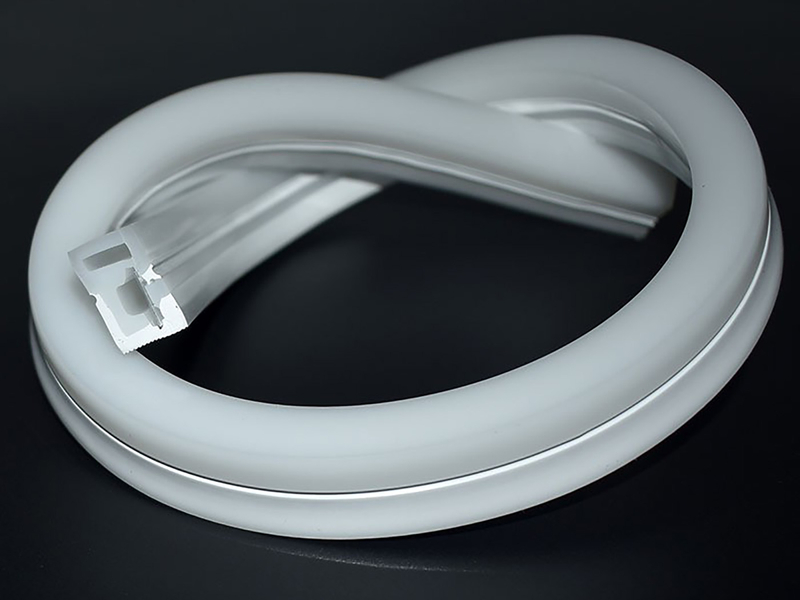

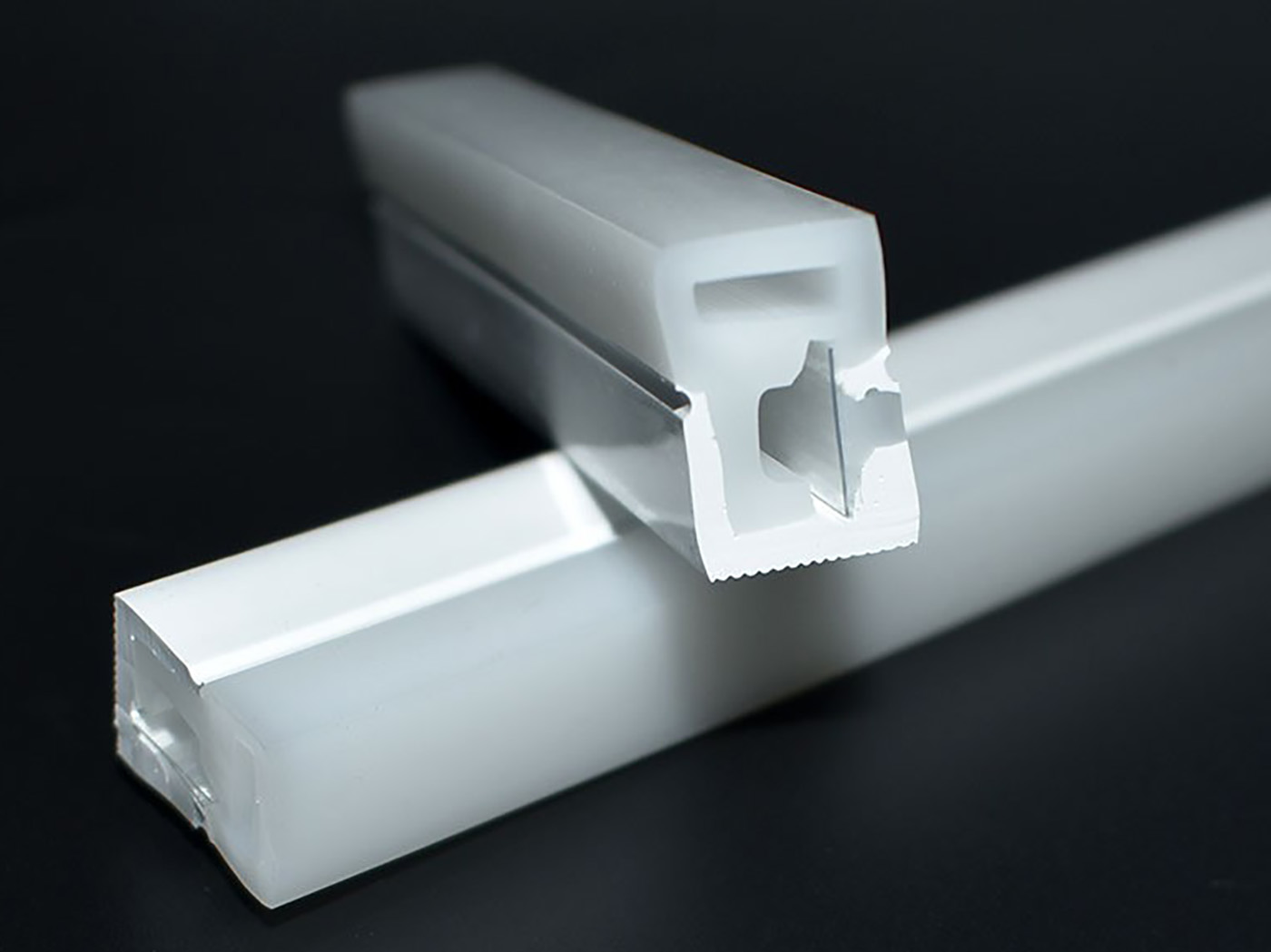

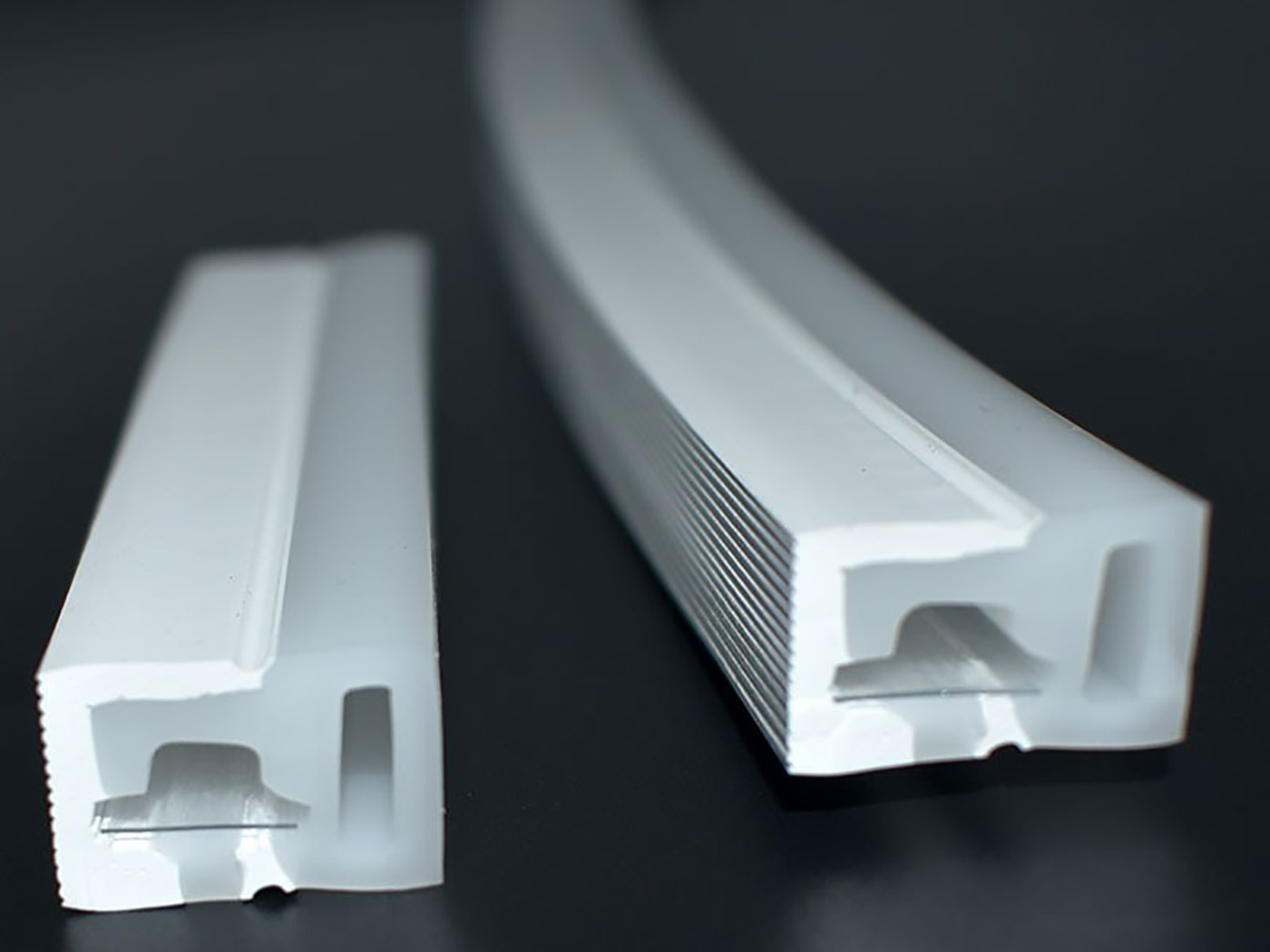

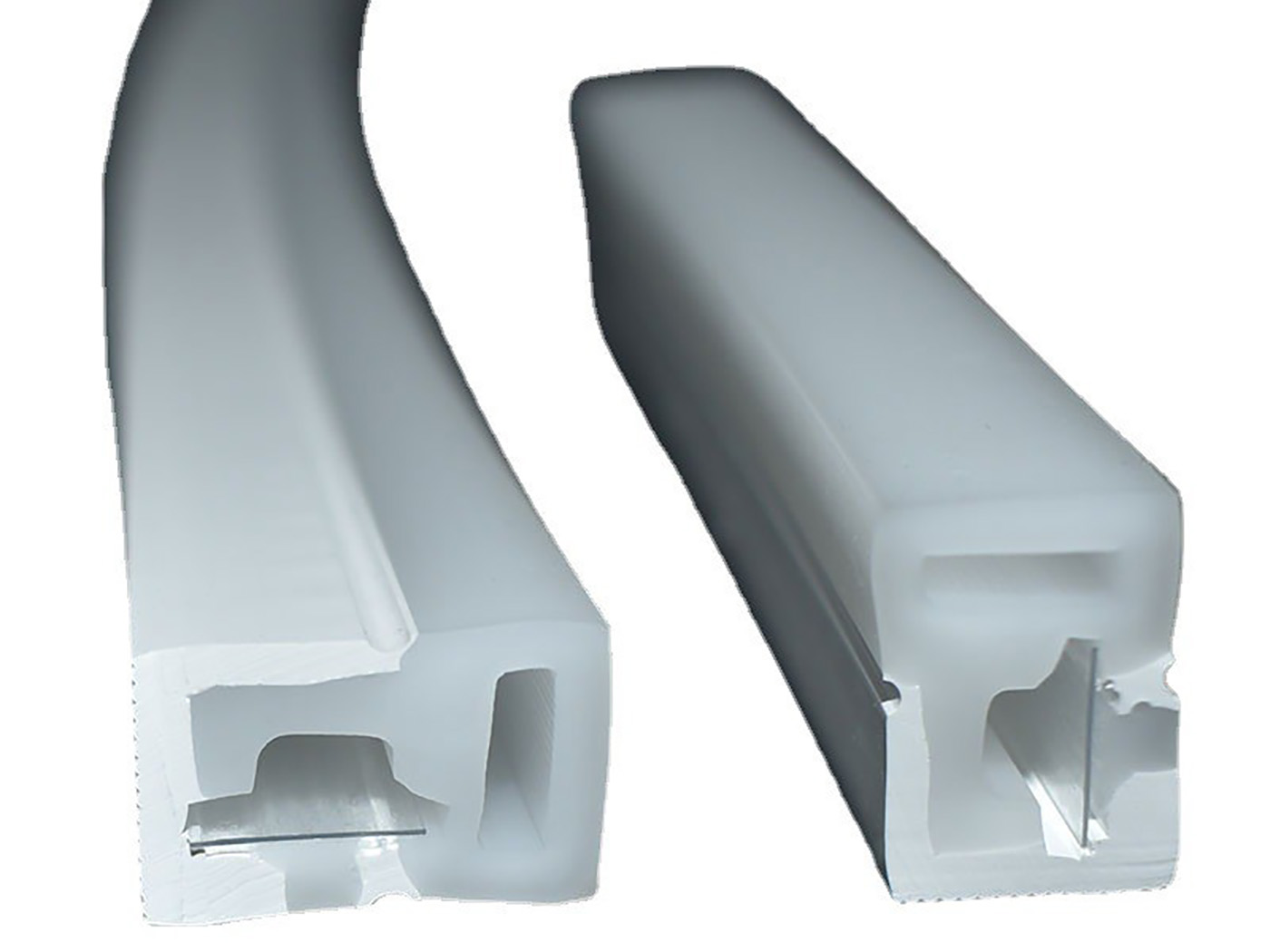

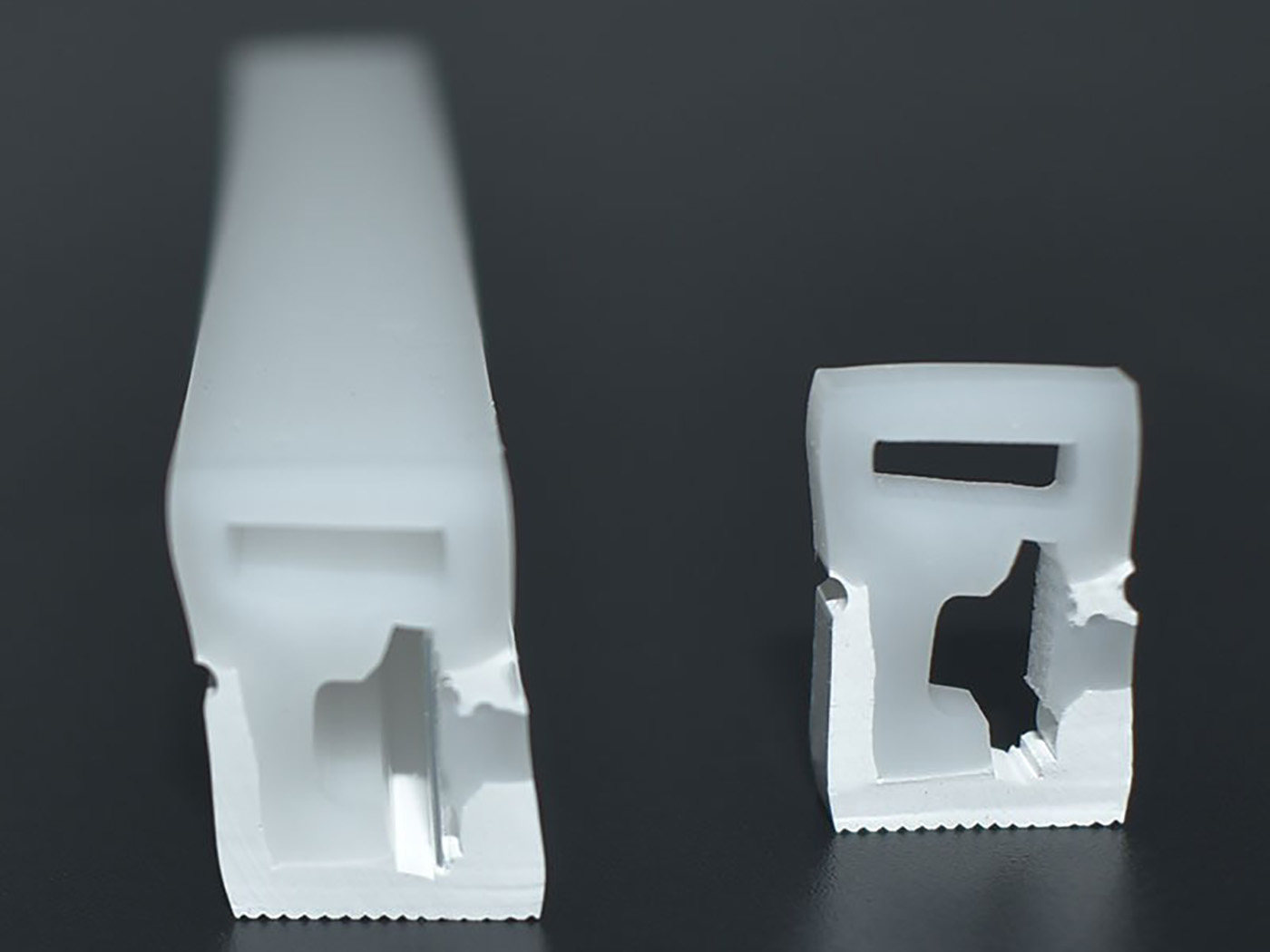

White 1220 Silicone Neon Tube Cover Diffuser Soft Bendable Diffuser for LED Aluminum Profile


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FW-T-1220 | Outer Size: 12mm(W)×20mm(H) | Wide Ultra-Thin Top-Emitting Silicone Tube

Model:
FW-T-1220

1220 Silicone Neon Tube Cover White Led Diffuser Cover Bendable Silicone Diffuser Neon Cover For Aluminum Profile Soft Led Strip Diffuser 1220 Profile Neon Sleeve Flexible Neon Tube Diffuser Aluminum Profile Silicone Cover White Bendable Neon Cover

Product Description

Core Specifications

Item	Standard Specification
Model Number	FW-T-1220
Outer Dimension	12mm × 20mm (Wide Ultra-Thin Flat Profile)
Inner Dimension	10mm × 3mm (fits 10mm wide bare ultra-thin double-row LED strips)
Uniform Wall Thickness	1mm
Silicone Material	Food-grade fumed silica, anti-yellowing formula
Hardness	30±5 Shore A
Waterproof Grade	IP67 (after sealed with matching end caps & silicone glue)
Working Temperature Range	-40℃ ~ +120℃
UV Resistance	Grade 4-5, long-term anti-aging
Light Transmittance	≥90% (high transparent version)
Standard Roll Length	50m/roll, 100m/roll (custom length available)

Key Features

Fully compatible with 12×20mm ultra-thin mounting clips, aluminum channels and installation accessories
Wide ultra-thin flat profile, only 5mm thickness, specially designed for 10mm wide ultra-thin double-row LED strips, perfect for wide ultra-narrow gap hidden installation
Ultra-soft and flexible, supports small-radius bending, no cracking or deformation after long-term use
Wide light-emitting surface, uniform large-area glow, no visible LED dots

Optional Types

Type	Core Feature	Application Scenario
High Transparent Version	≥90% light transmittance, minimal brightness loss	Wide ultra-thin hidden lighting, high brightness demand scenes
Milky White Diffusion Version	Uniform soft glow, no visible LED dots, anti-glare	Indoor cabinet, wardrobe wide ultra-thin lighting
Black Light-Blocking Version	Side & back light blocking, only front emitting	Wide dark slot concealed lighting, anti-light interference scenes

Typical Applications

Home and commercial ultra-thin decorative lighting strip waterproof upgrade
Wide cabinet, wardrobe, furniture layer board lighting strip protection
Ultra-narrow gap wide linear hidden lighting strip protection
Commercial display showcase wide ultra-thin lighting strip protection

Matching Accessories

FW-T-1220 dedicated waterproof end caps
Food-grade silicone sealant
12mm wide ultra-thin mounting clips
12×20mm ultra-thin aluminum mounting channels
IP67 waterproof connectors
