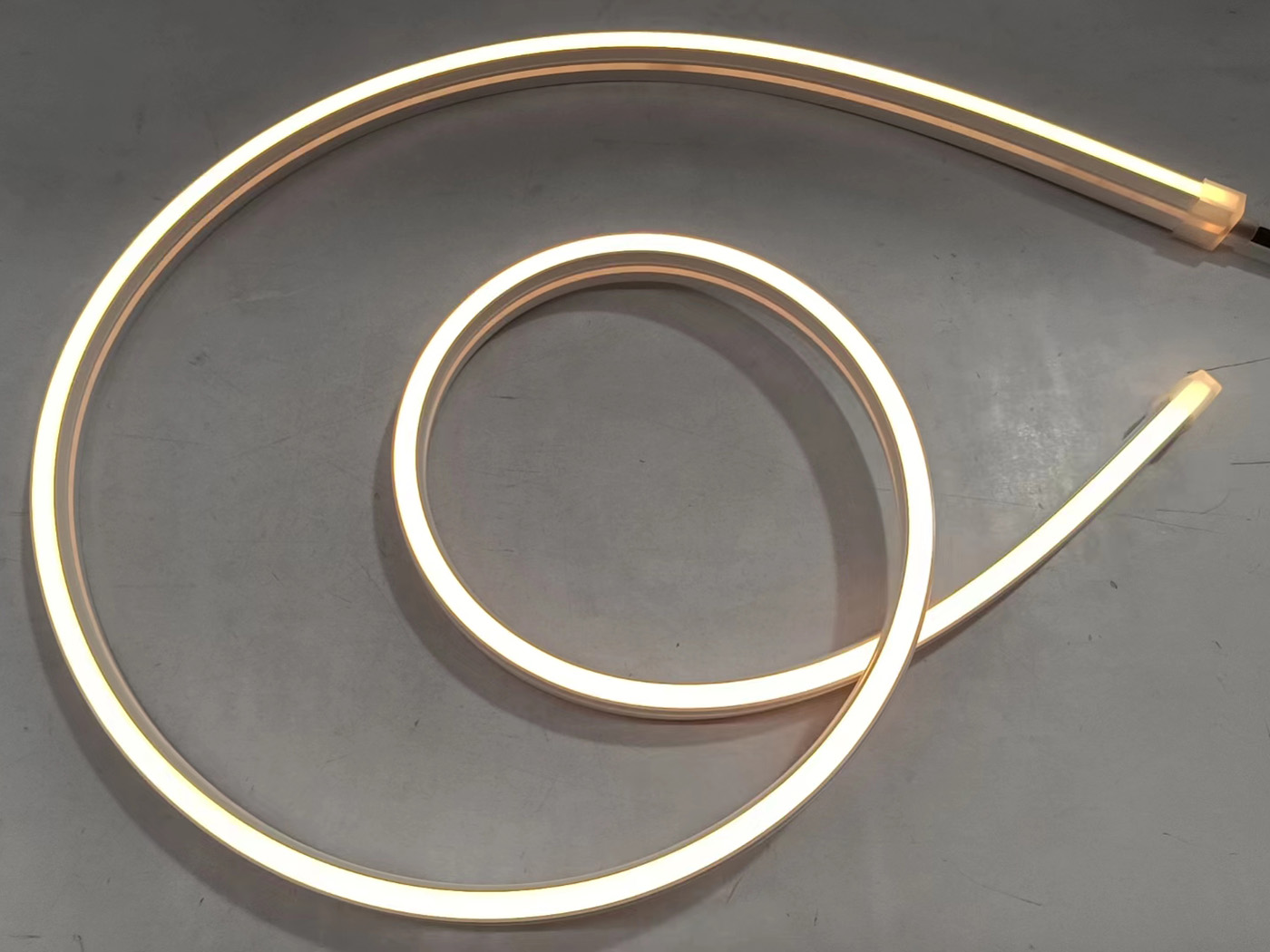

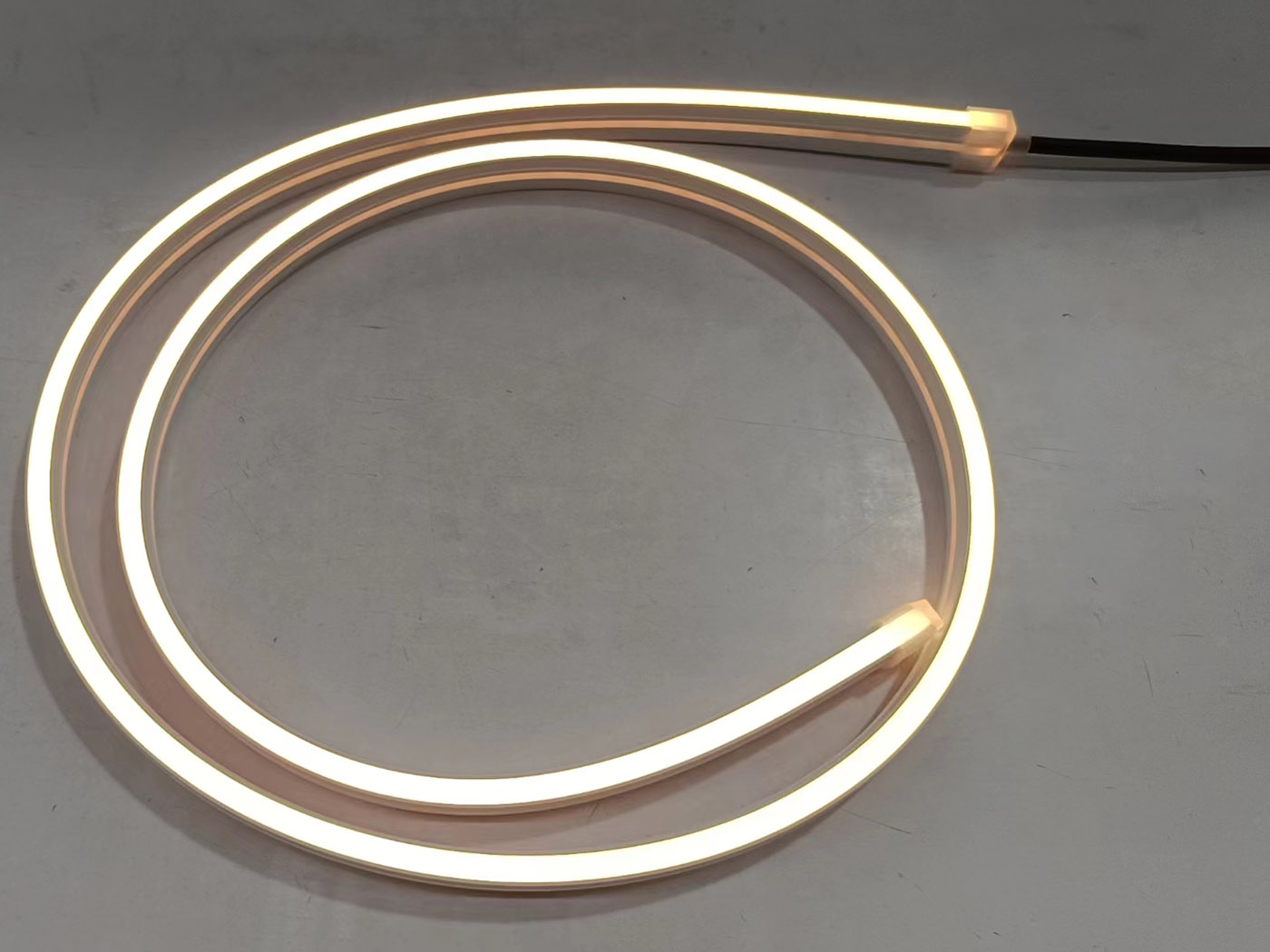

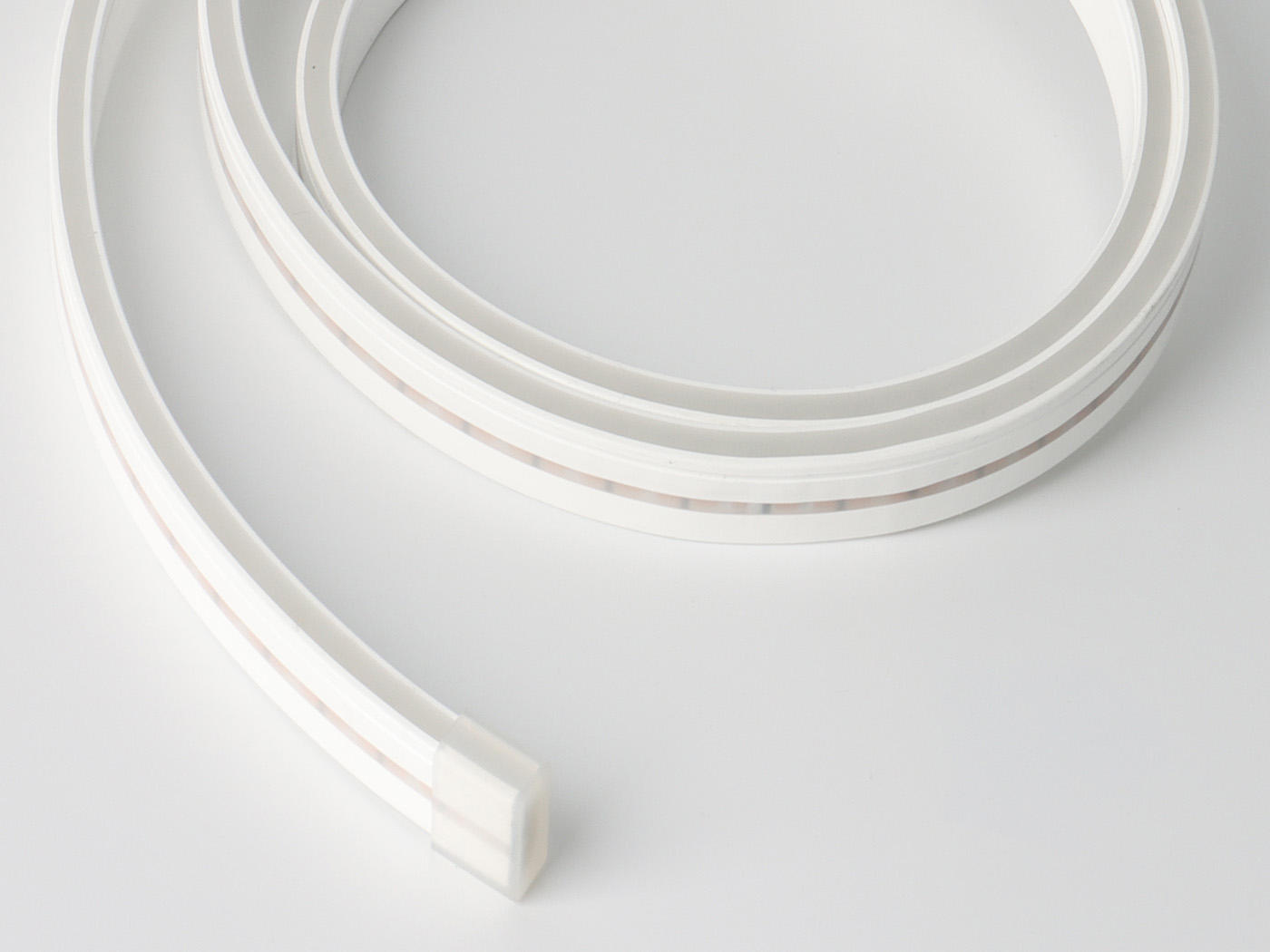

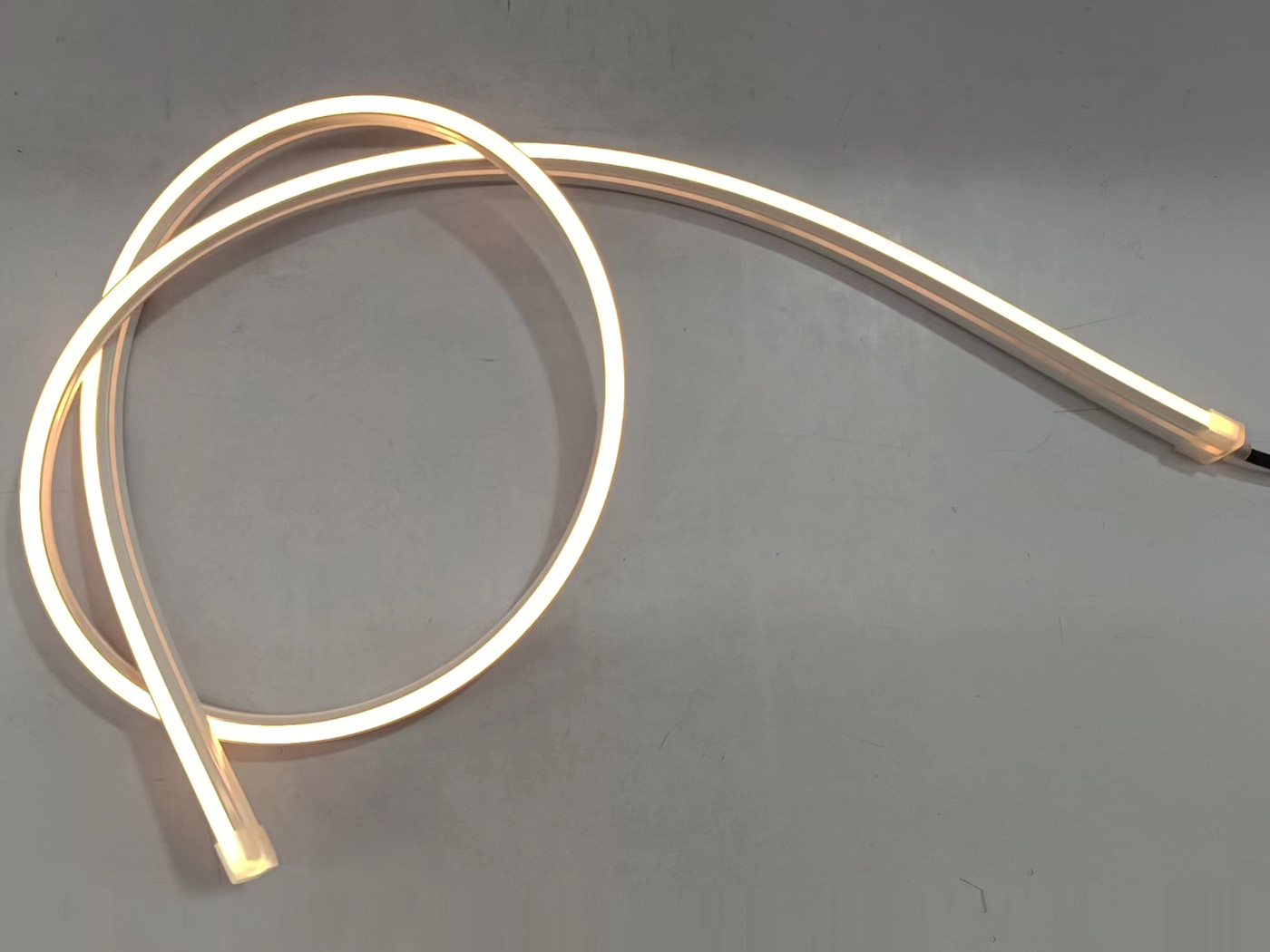

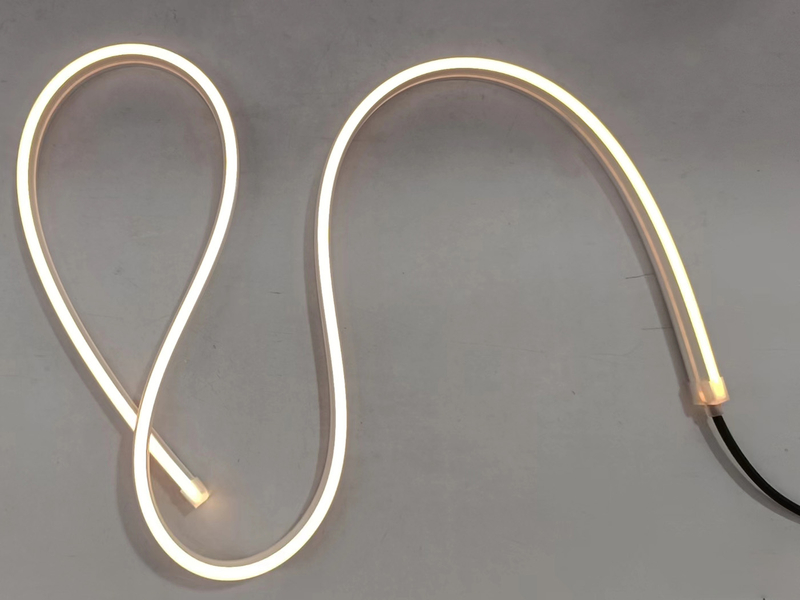

0612 IP65 IP67 Waterproof Dotless Flexible Side Bend LED Neon Strip

0612 IP65 IP67 Waterproof Dotless Flexible Side Bend LED Neon Strip


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FW-S-0612｜Size: 6mm × 12mm｜Side Emitting

Product Features

Ultra-slim 6×12mm profile, side emitting design
Full extrusion flexible silicone, anti-yellowing & durable
Uniform light output, no light spots, no glare
IP67 waterproof, dustproof & bendable
3oz FPC, low voltage drop, stable brightness
LM80 high-brightness LED chip
Suitable for narrow slots, concealed lighting, furniture & cabinet lighting

Model:
FW-S-0612

Side Bend LED Neon Strip Dotless Flexible Silicone Neon Light IP65 IP67 Waterproof Neon Strip Dotless Side Bend Neon Strip Flexible Waterproof LED Neon Strip Side Bend Dotless LED Strip IP67 Dotless Silicone Neon Strip IP65 Flexible Side Glow Neon Strip

Product Description

Applications

Under cabinet lighting
Wardrobe & cupboard lighting
Narrow slot & hidden linear lighting
Wall & ceiling outline lighting
Furniture & display showcase lighting

Core Specifications

Item	Specification
Model Number	FW-S-0612

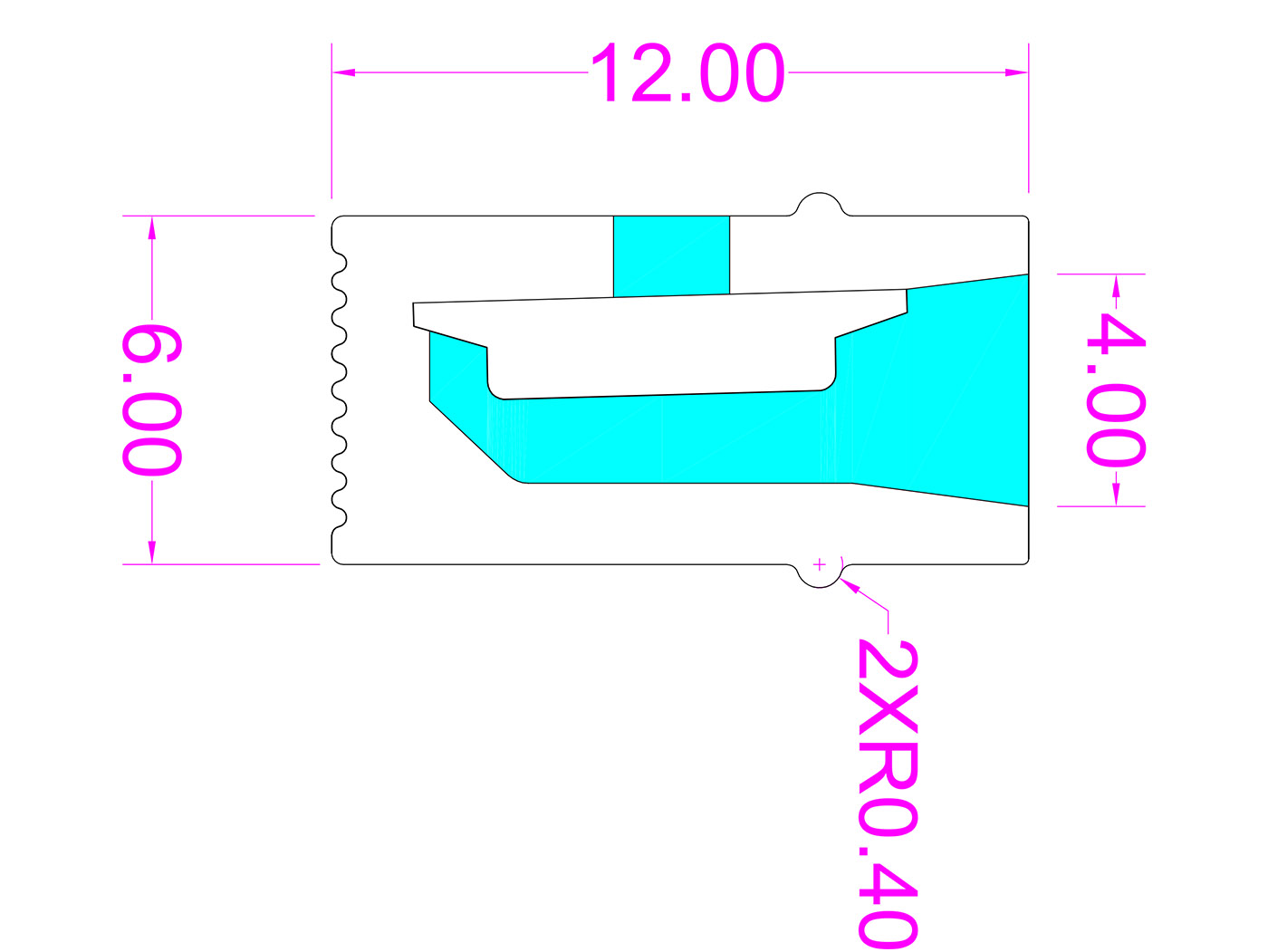

Product Size	6mm (W) × 12mm (H)
Emitting Type	Side Emitting
LED Type	SMD 2835
LEDs per Meter	120 LEDs/m
Input Voltage	DC 24V
Power Consumption	9.6W/m
Beam Angle	120°
Waterproof Grade	IP67
Minimum Bending Radius	≥ 30mm
Cutting Unit	6 LEDs / 50mm
Color Temperature	2700K / 3000K / 4000K / 6000K
CRI	Ra ≥ 80 (Ra ≥ 90 optional)
Working Temperature	-20℃ ~ +45℃
Silicone Material	Full extrusion anti-yellowing silicone
Installation	3M tape / slim aluminum profile
Standard Length	5m/roll
Lifespan	50,000 hours
Warranty	3 years

Bending Direction

Side bend (vertical to the light-emitting surface)D ≥ 30mm

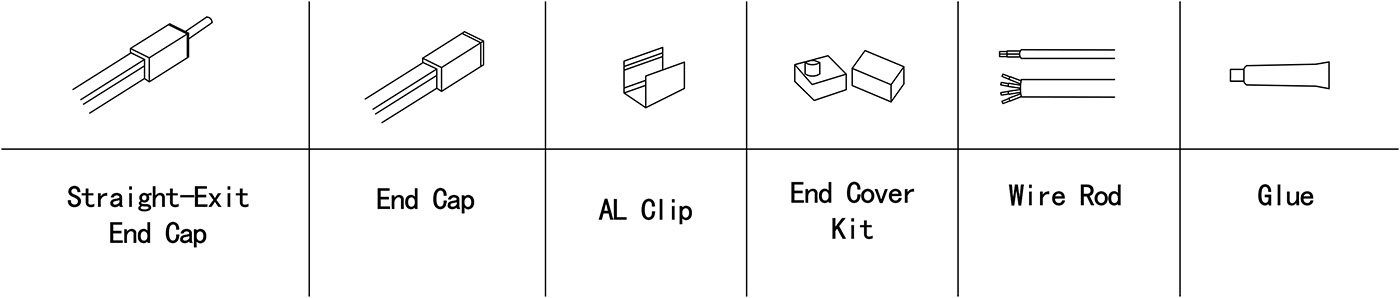

Optional Accessories

Side end cap
Mounting clip
Slim aluminum channel
DC 24V LED driver

Detail

Material

Side Bend LED Neon Strip (7)

Certificate

Side Bend LED Neon Strip (8)
