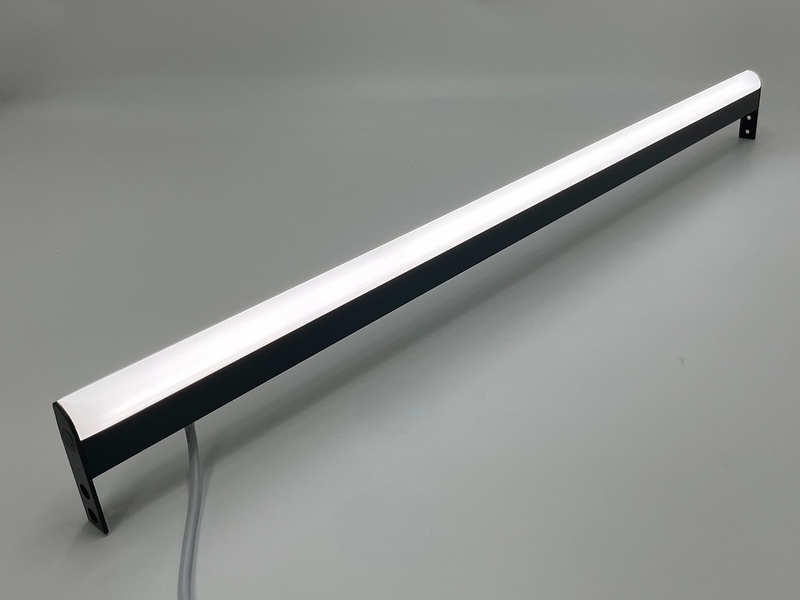

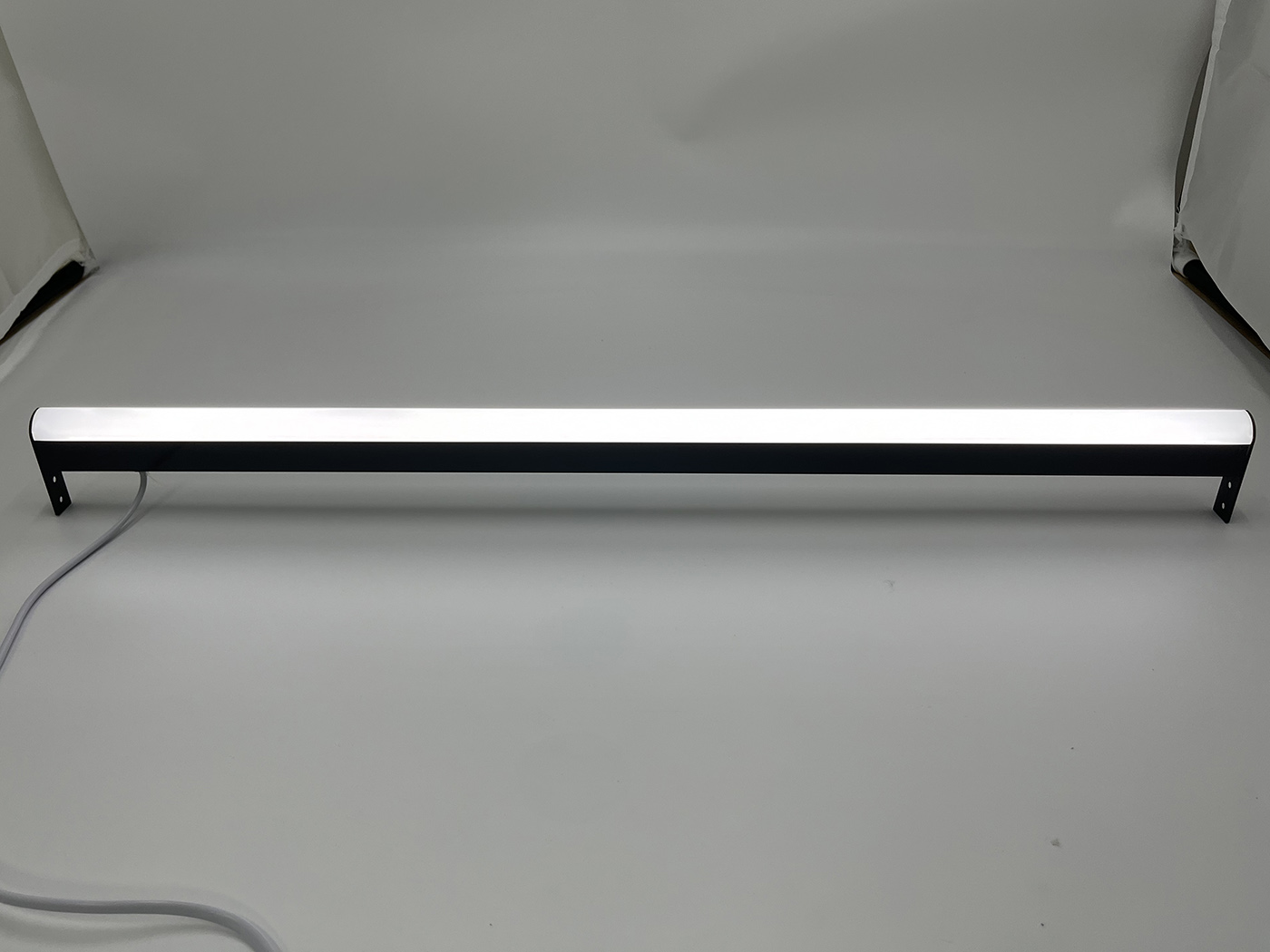

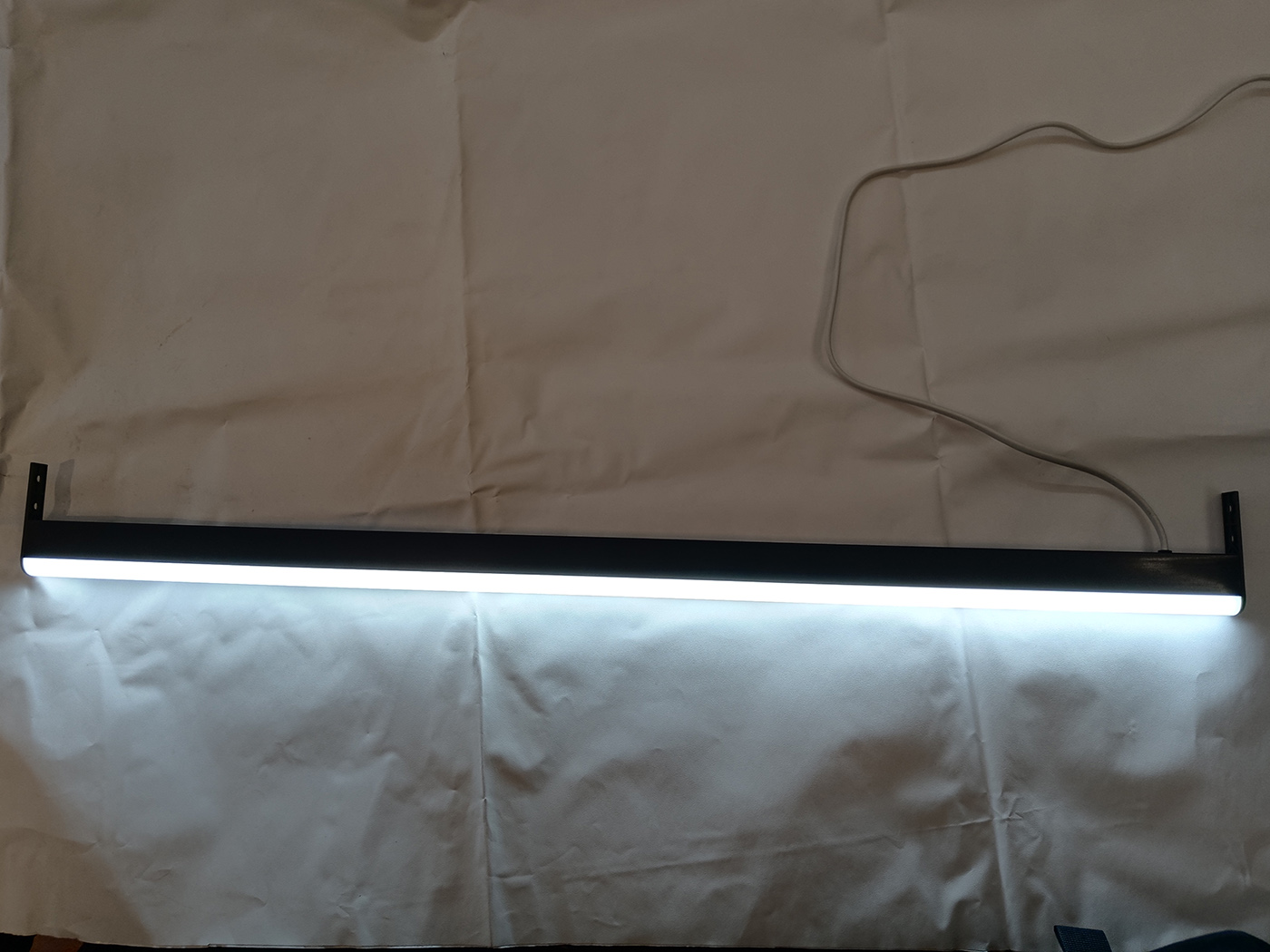

Adopts high-sensitivity hand sweep induction technology, simple and convenient hand wave control to turn on / off the light.Made of flame-retardant PC housing, equipped with high-brightness, low power consumption and low light decay LED light source.Soft and uniform light output, energy-saving, high efficiency, long service life and environmental friendly.

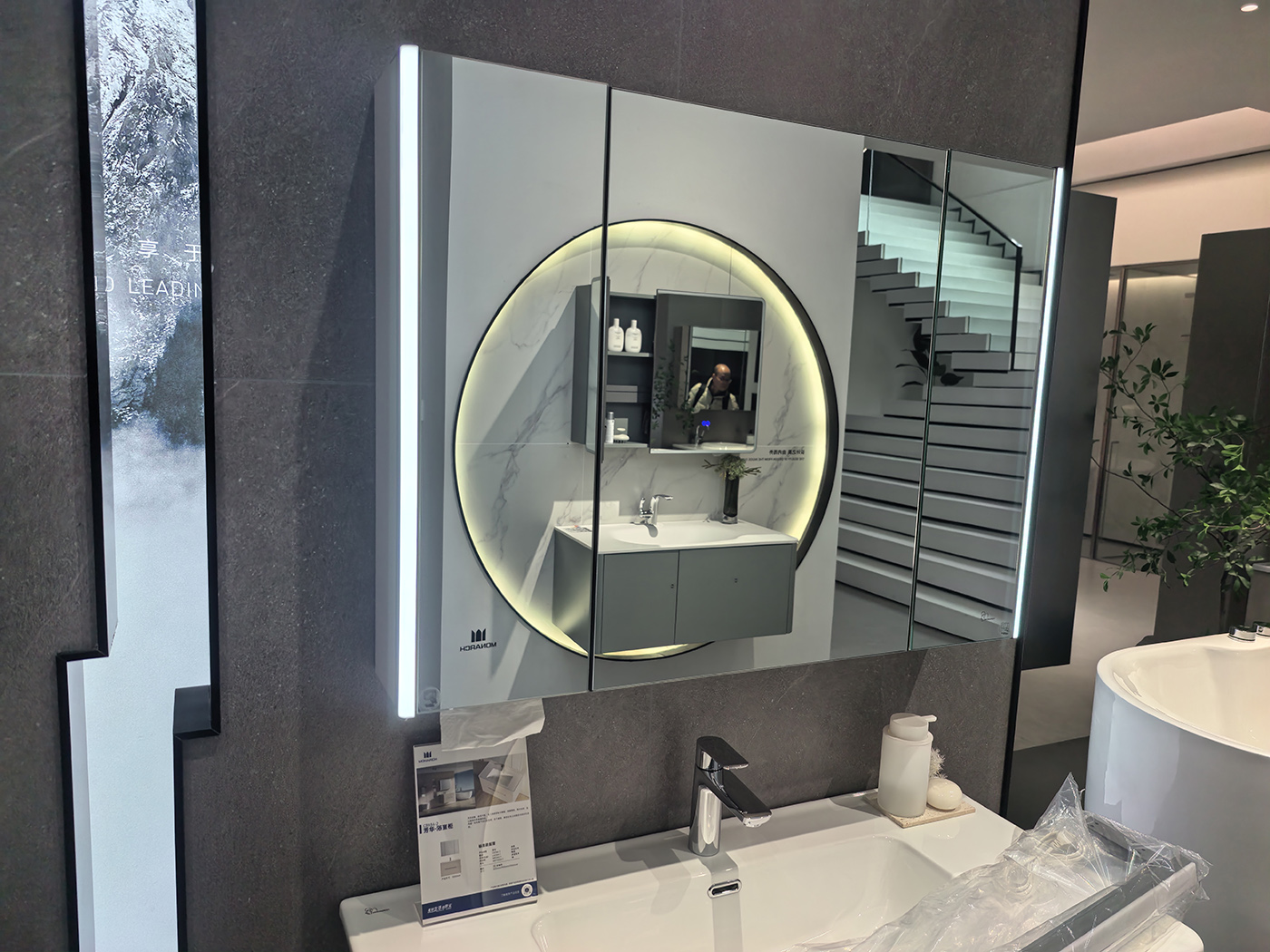

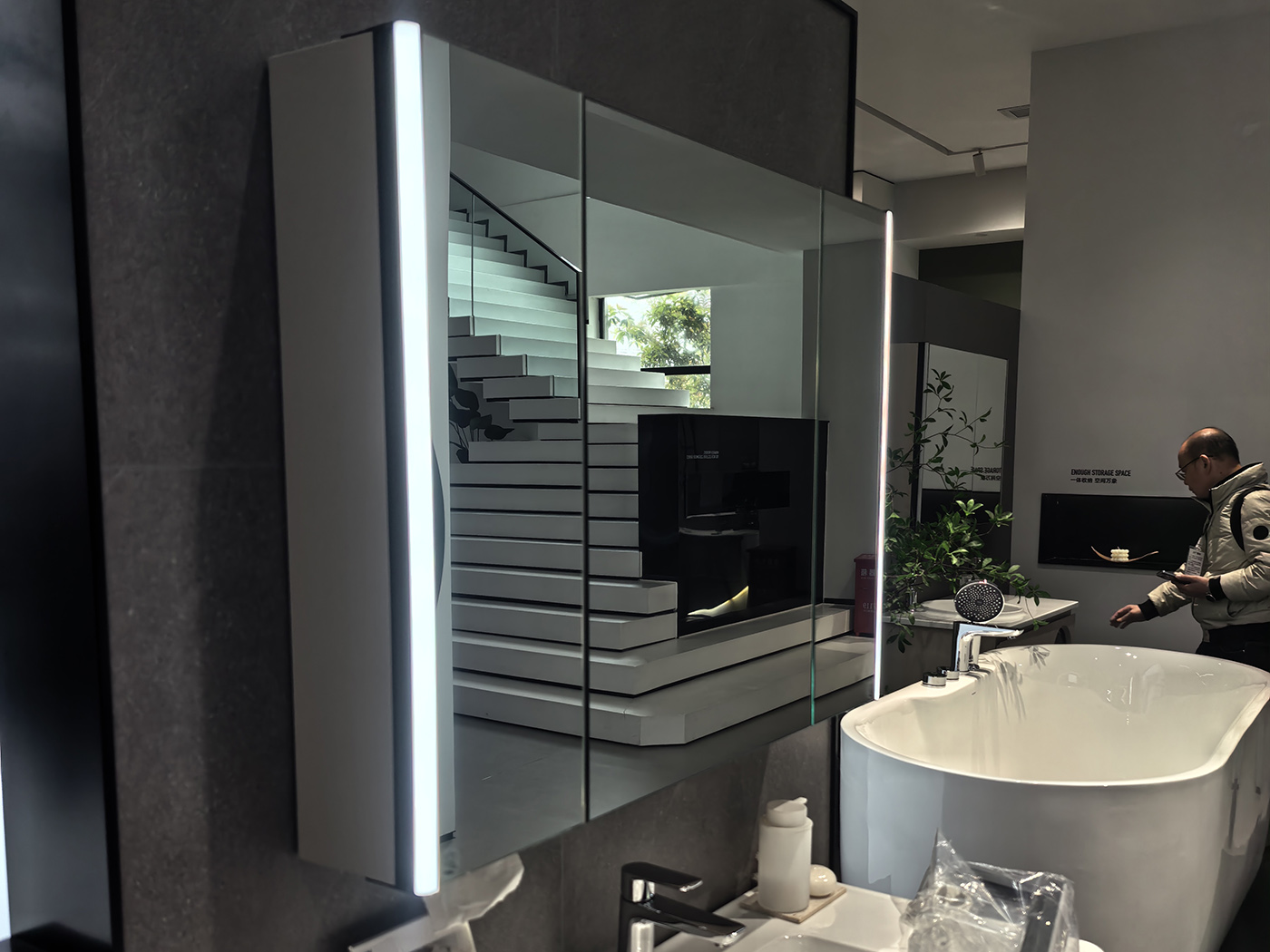

Side mounting for bathroom cabinet.Designed as 2 pieces per set, suitable for left and right side matching installation of bathroom cabinet.
Specially designed only for bathroom cabinet side installation and internal lighting:
Household bathroom cabinet left & right side auxiliary lighting
Wash basin cabinet / vanity cabinet side built-in light
Integrated overall bathroom cabinet side installation
Apartment & hotel bathroom cabinet supporting side lamp
Custom cabinet intelligent hand sweep induction side lighting
Sealed integrated design, compact and easy to install.Fixed size, no need to cut.Standard length: 700mm / 750mm
Product Model | Length (L) | Width (W) | Height (H) | Mounting Hole Spacing |
GZ-3616 | 700 / 750 | 16 | 36 | Refer to dimension drawing |
No. | Parameter Item | Technical Data |
1 | Rated Input Voltage | AC 220V |
2 | Rated Working Frequency | 50Hz |
3 | LED Power | 10W/m |
4 | Maximum Input Current | 0.09A |
5 | Power Factor | 0.65 |
6 | Induction Type | Hand Sweep Induction |
7 | Delay Time | 60s (Auto-off Adjustable) |
8 | Color Temperature | 3000K / 4000K / 5000K / 6000K (Optional) |
9 | Max Luminous Flux | 1100LM |
10 | Shell Material | Flame-retardant PC |
11 | Power Cord Length | 1150±50mm |
12 | Protection Level | IP44 |
13 | Single LED Spec | DC3.0V–DC3.4V, 0.2W |
14 | Design Life | 30000 Hours |
15 | Certification | Full Standard Certification Approved |
Non-contact hand sweep control:Wave hand once to turn on the light;Wave hand again to turn off the light.Without any operation, the light will auto off after 60 seconds delay.
Sensitive hand sweep sensing, stable response;No radar interference, no false trigger;Suitable for indoor bathroom cabinet long-term use.
Do not install near reflective objects which may affect normal induction.
Keep the induction window exposed, do not cover or block the sensing area.
Avoid installing in strong direct sunlight environment, to prevent induction sensitivity decline.

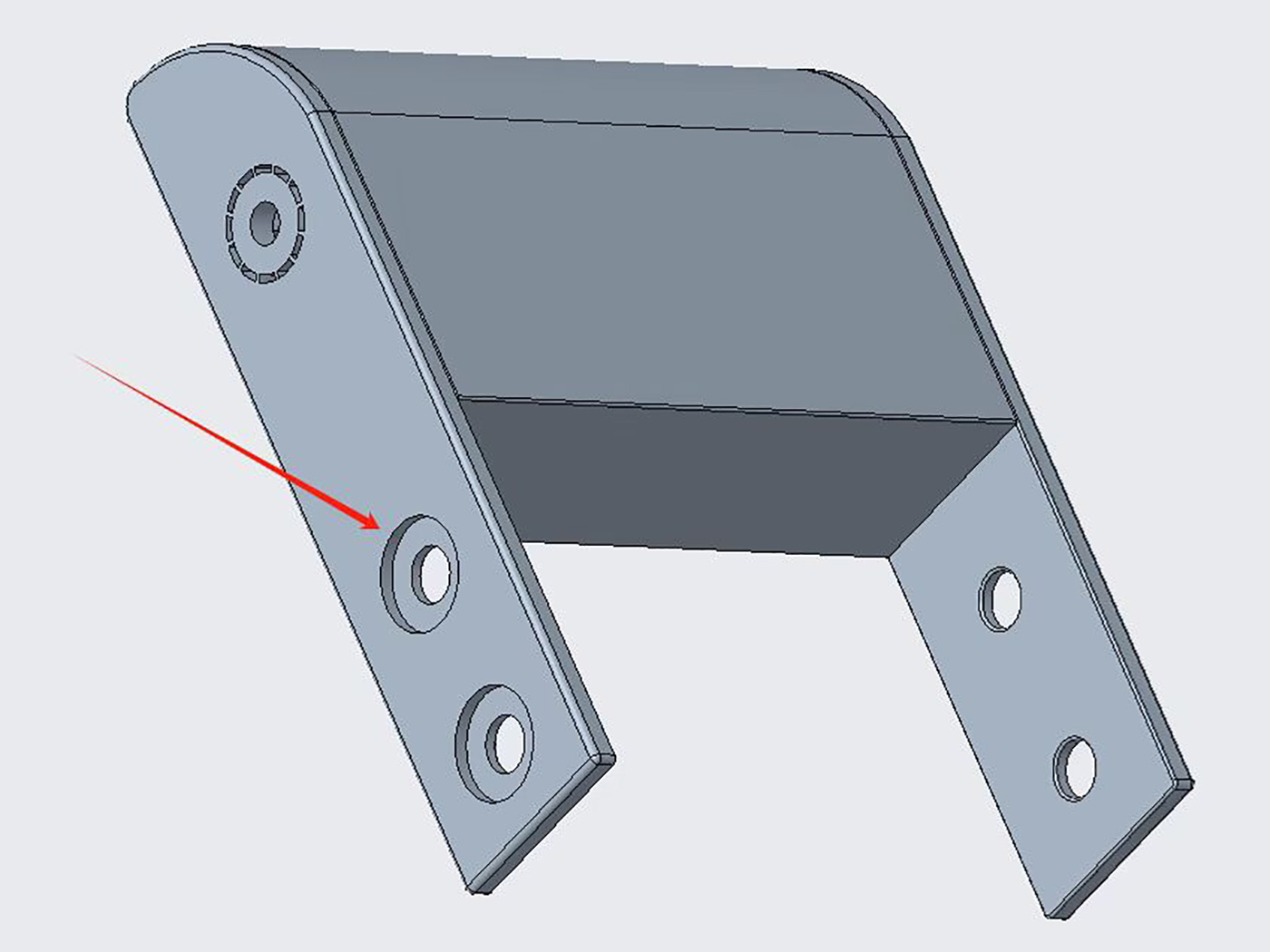

Install firmly on cabinet side panel, keep away from heat source and vibration source.
Product Model | Carton Dimension (mm) | Quantity Per Carton |
GZ-3616 | Custom | 20 Sets |
Brown Wire — Live Wire (L)Blue Wire — Neutral Wire (N)
Note: The lamp needs to keep permanent power supply, do not control by ordinary wall switch.
GB 7000.201-2008GB 7000.1-2015GB/T 17743-2021GB 17625.1-2022GB 19510.1-2009GB 24819-2009
Store in dry warehouse without acidic, alkaline and corrosive gas.
Packaging: 2 pieces per set, equipped with nameplate and installation manual.
Transportation: Keep dry, dust-proof, moisture-proof, avoid rain and mechanical damage.
Storage Temperature: -20℃ ~ +40℃
Relative Humidity: ≤80%
