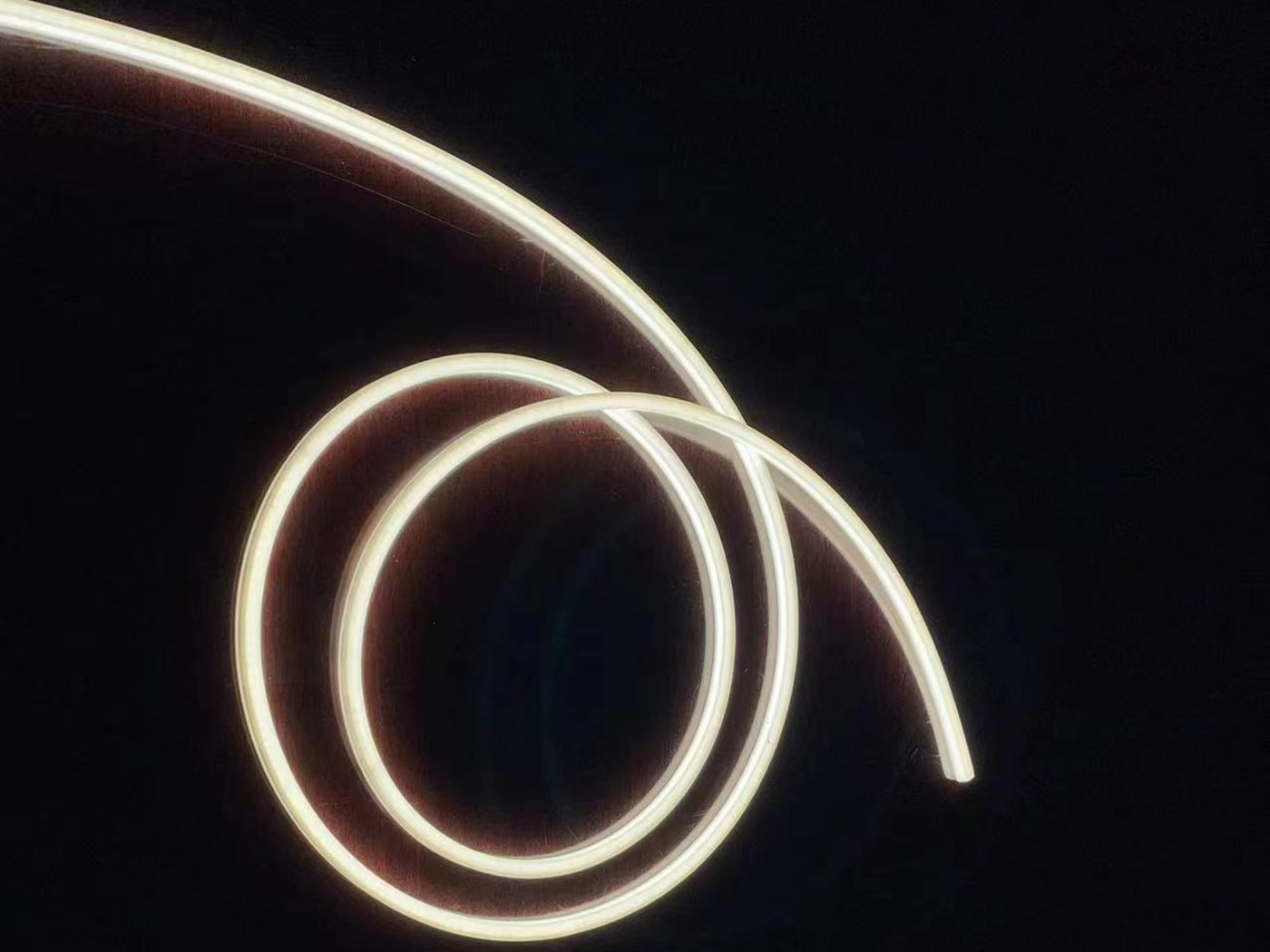

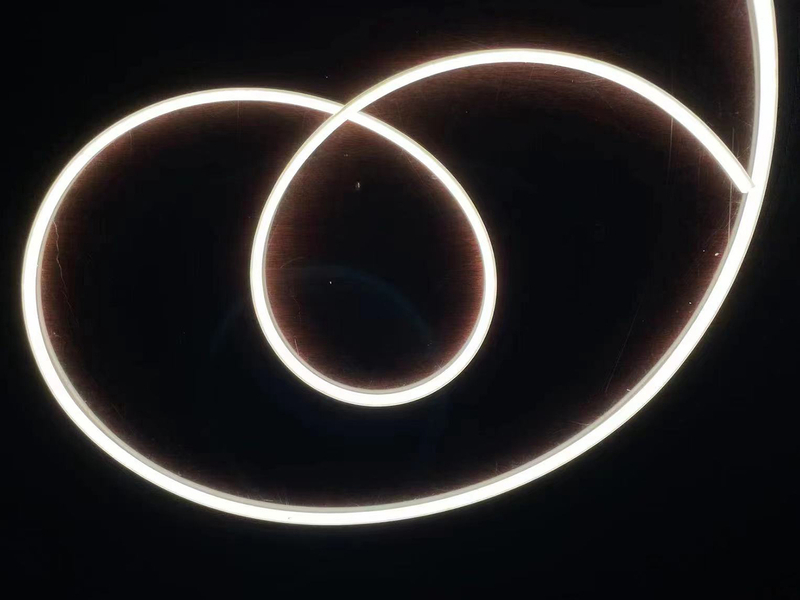

0606 Mini Size IP65 Top Emitting Flexible Silicone LED Neon Strip

I. Core Product Parameters

1. LED Chip Model: SMD 2216

2. LED Density: 276 LEDs/m

3. Input Voltage: DC12V / DC24V (Optional)

4. Power Consumption:

• 12V: 9.6W/M

• 24V: 9.6W/M

5. Beam Angle: 180° Top Emitting

6. Housing Material: Full silicone extrusion, environmentally friendly and anti-yellowing

7. Waterproof Grade: IP67 (Suitable for indoor/outdoor humid environments)

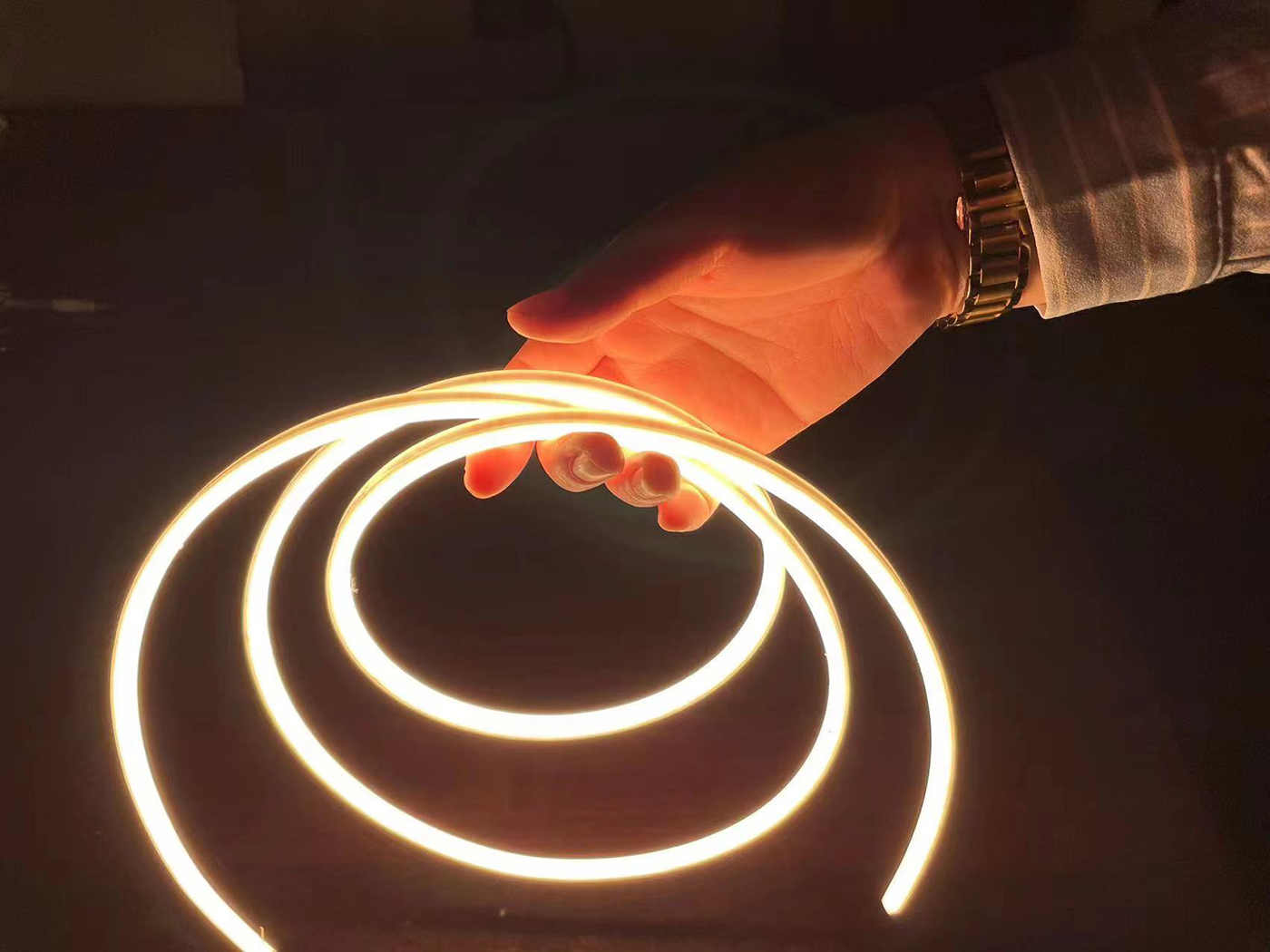

8. Bending Radius: ≥30mm, flexible and bendable

9. Cutting Specification: Cuttable every 25mm

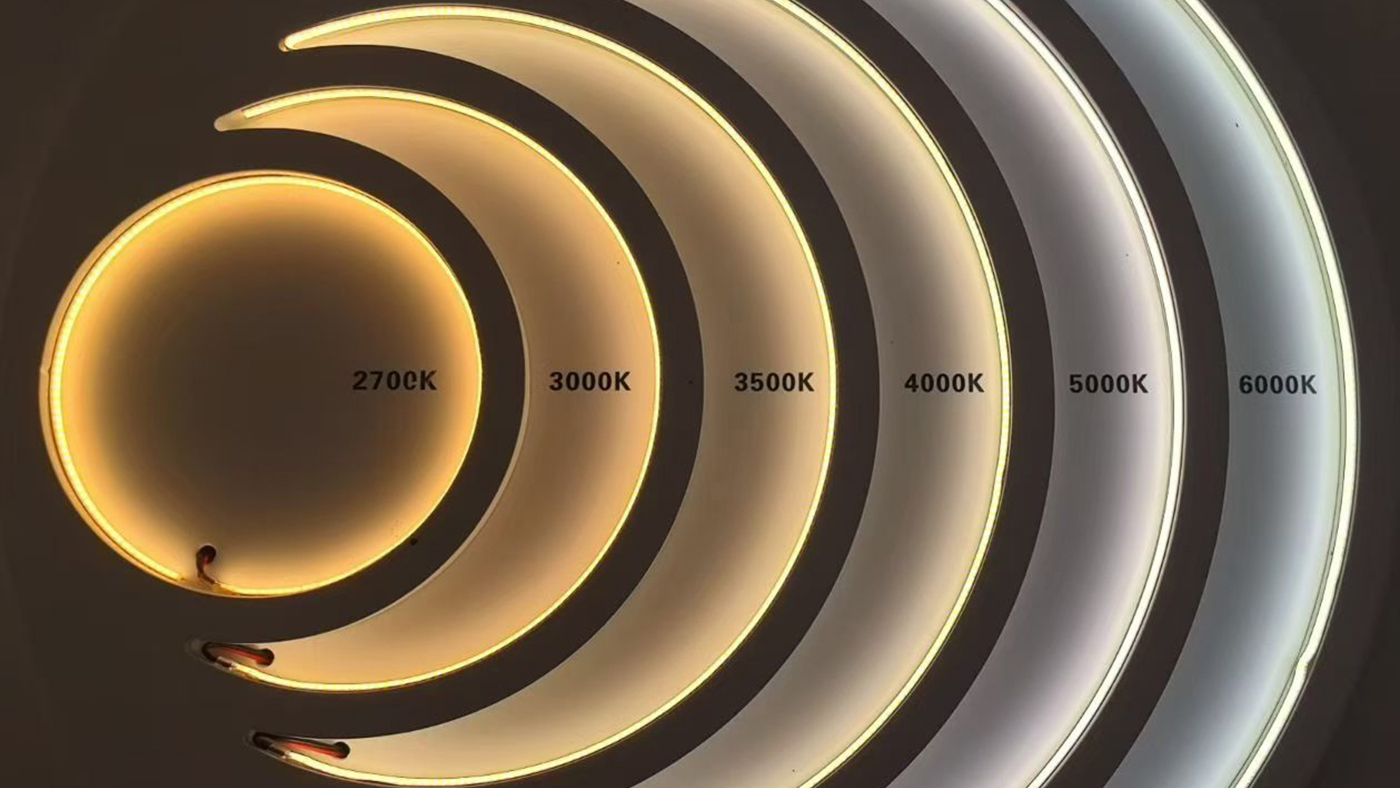

10. Color Temperature (Optional):

• Warm White: 3000K

• Natural White: 4000K

• Cool White: 6000K

• Colorful: Red/Green/Blue/Yellow/Pink

II. Optical Parameters

• Color Rendering Index (CRI): ≥80 (CRI90 high color rendering optional)

• Luminous Efficacy: ≥85lm/W

• No light spots, anti-glare, uniform light emission throughout

• Constant voltage drive, stable light without flicker

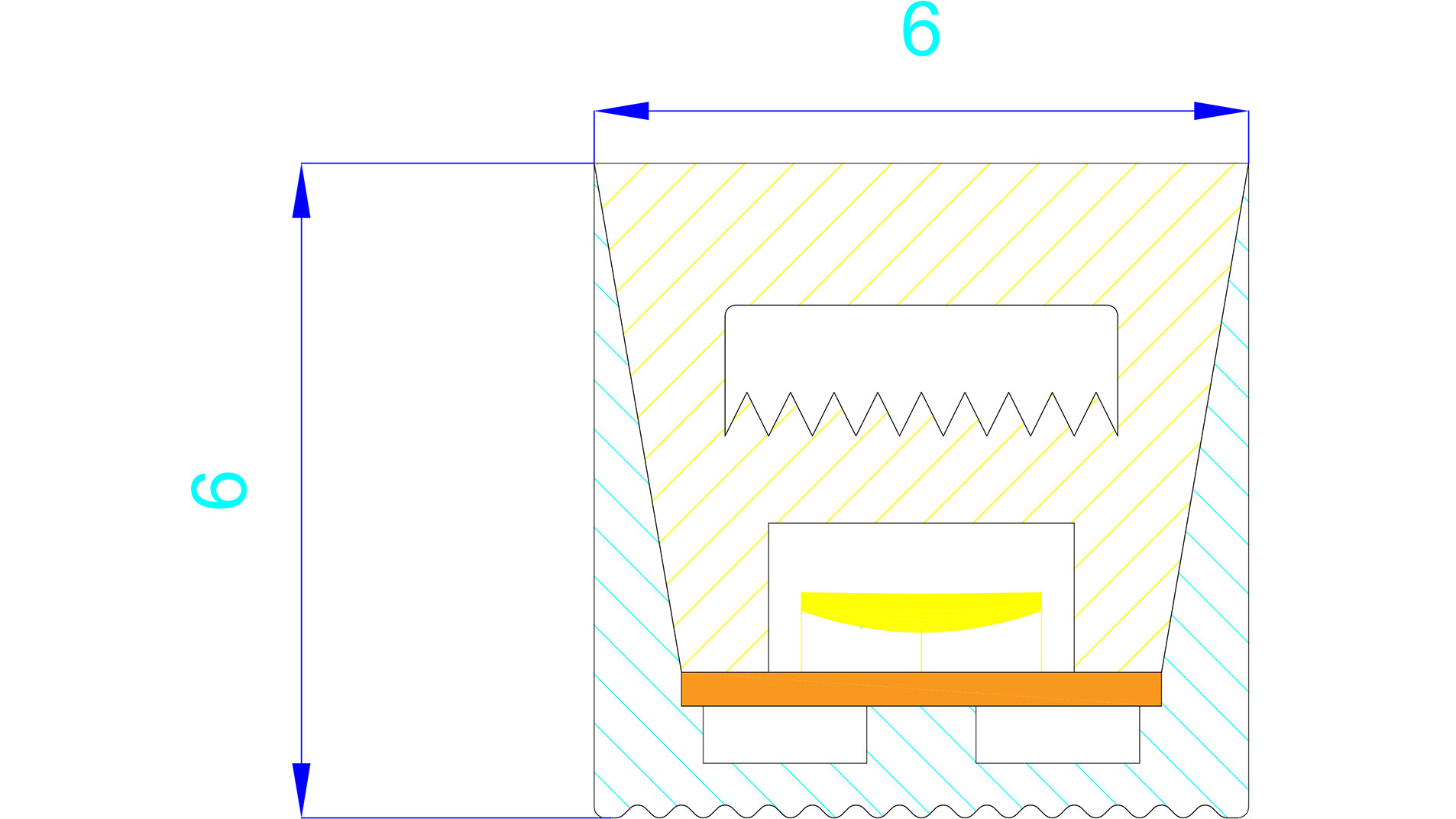

III. Structure & Material

1. Outer Layer: Food-grade solid silicone, pressure-resistant, wear-resistant and anti-aging

2. Middle Layer: FPC flexible circuit board, ultra-thin and fold-resistant

3. Inner Layer: High-conductivity copper circuit, low voltage drop and stable conductivity

4. Craftsmanship: Integrated extrusion molding, sealed dust-proof and waterproof

IV. Electrical Performance

• Working Current: Stable constant voltage input

• Driving Mode: Matching with Constant Voltage LED Driver

• Line Voltage Drop: Low voltage and low loss; maximum length recommended: 5m for 12V, 10m for 24V

• Insulation Class: Class Ⅲ

• Working Temperature: -20℃ ～ +60℃

V. Installation Method

1. Self-adhesive 3M tape on the back for easy paste installation

2. Can be fixed with U-shaped/V-shaped LED Aluminum Profile to improve heat dissipation and aesthetics

3. Suitable for recessed installation, surface installation, corner installation and cabinet interlayer hidden installation

VI. Product Advantages

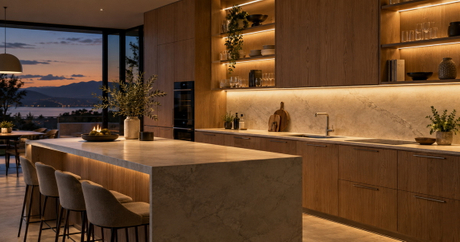

• 0606 mini narrow model, dedicated for small spaces (cabinet, wine cabinet, shoe cabinet)

• Top emitting design, direct front light emission, no side light leakage

• Full silicone waterproof and moisture-proof, suitable for kitchen and bathroom

• High brightness and low light decay, long service life

• Flexible and bendable, customizable for special-shaped and arc-shaped designs

• No ultraviolet rays, no radiation, safe and environmentally friendly for home and commercial use

VII. Packaging & Warranty

• Standard Packaging: 5m/roll, 10m/roll

• Accessories: End caps, terminal blocks, fixing buckles

• Service Life: 50000 hours

• Warranty Period: 3 years standard warranty

VIII. Matching Products (Relevant Products on Your Website)

• Matching Power Supply: 12V/24V Constant Voltage LED Driver

• Matching Profile: Mini LED Aluminum Profile (narrow model)

• Relevant Categories: Top Emitting Silicone Neon Strip, Under Cabinet Lights
