Waterproof Surface Mount Radar Sensor Bathroom Vanity LED Light

Key Features

Built-in 10GHz high-sensitivity radar sensor to accurately detect human body movement within the sensing area.Adopts flame-retardant PC shell material, equipped with high-brightness, low power consumption and low light decay LED light source.The light is soft and uniform, featuring long service life, energy saving, high efficiency and environmental protection.

Installation Method

Wall-mounted installation, suitable for close mounting on the outer top or inner space of bathroom cabinet.

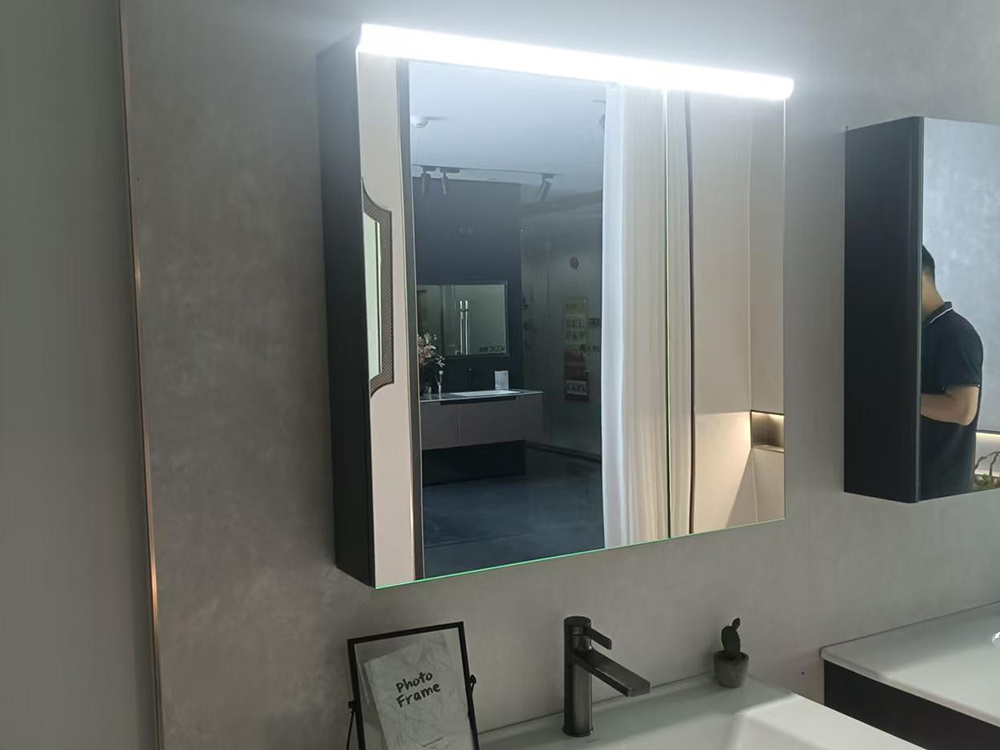

Application Scenarios

This product is specially designed and dedicated for internal lighting of bathroom cabinets only:

• Internal induction lighting for household bathroom cabinet

• Mirror cabinet, wash basin cabinet and bathroom vanity cabinet inner auxiliary lighting

• Embedded installation for integrated overall bathroom cabinet

• Built-in matching lighting for engineering apartments, hotel bathroom cabinets

• Custom home bathroom cabinet inner shelf & top intelligent induction lighting

Mechanical & Environmental Specs

PCB Width: 10mm Protection Grade: IP20 indoor, IP65 waterproof optional Working Temperature: -20℃ ~ +60℃ Storage Temperature: -30℃ ~ +70℃ Cutting Unit: Cuttable every 3 LEDs Max single connection length: 5 meters Adhesive: High viscosity 3M tape

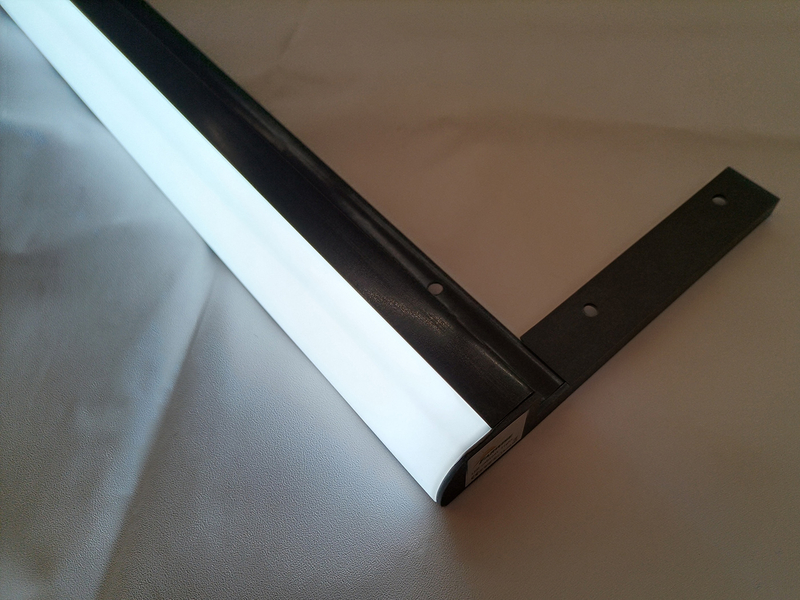

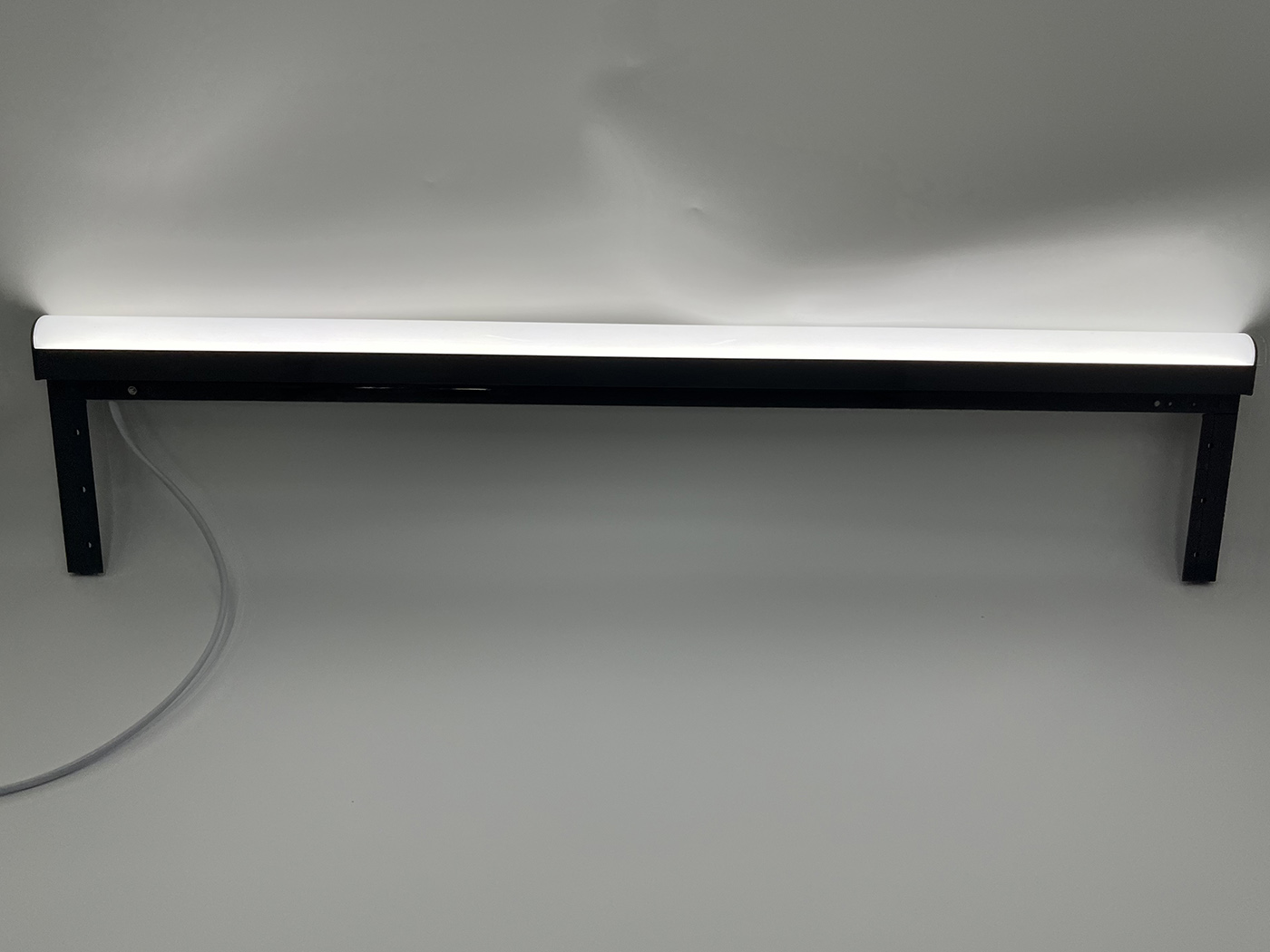

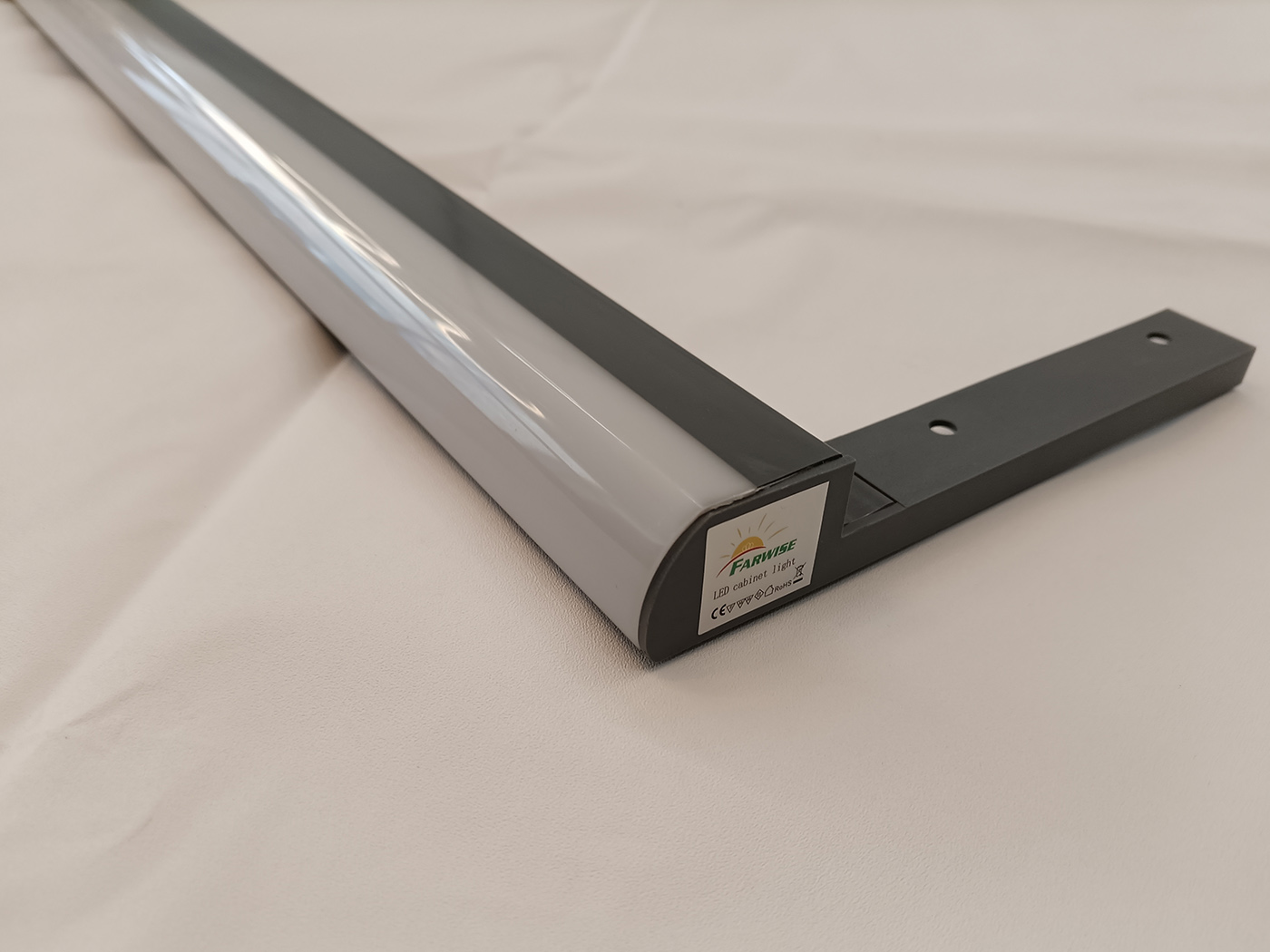

Appearance and Structure

Structural Features

Sealed design, compact structure, easy installation.Product length can be cut and matched according to bathroom cabinet size, cutting interval 50mm.

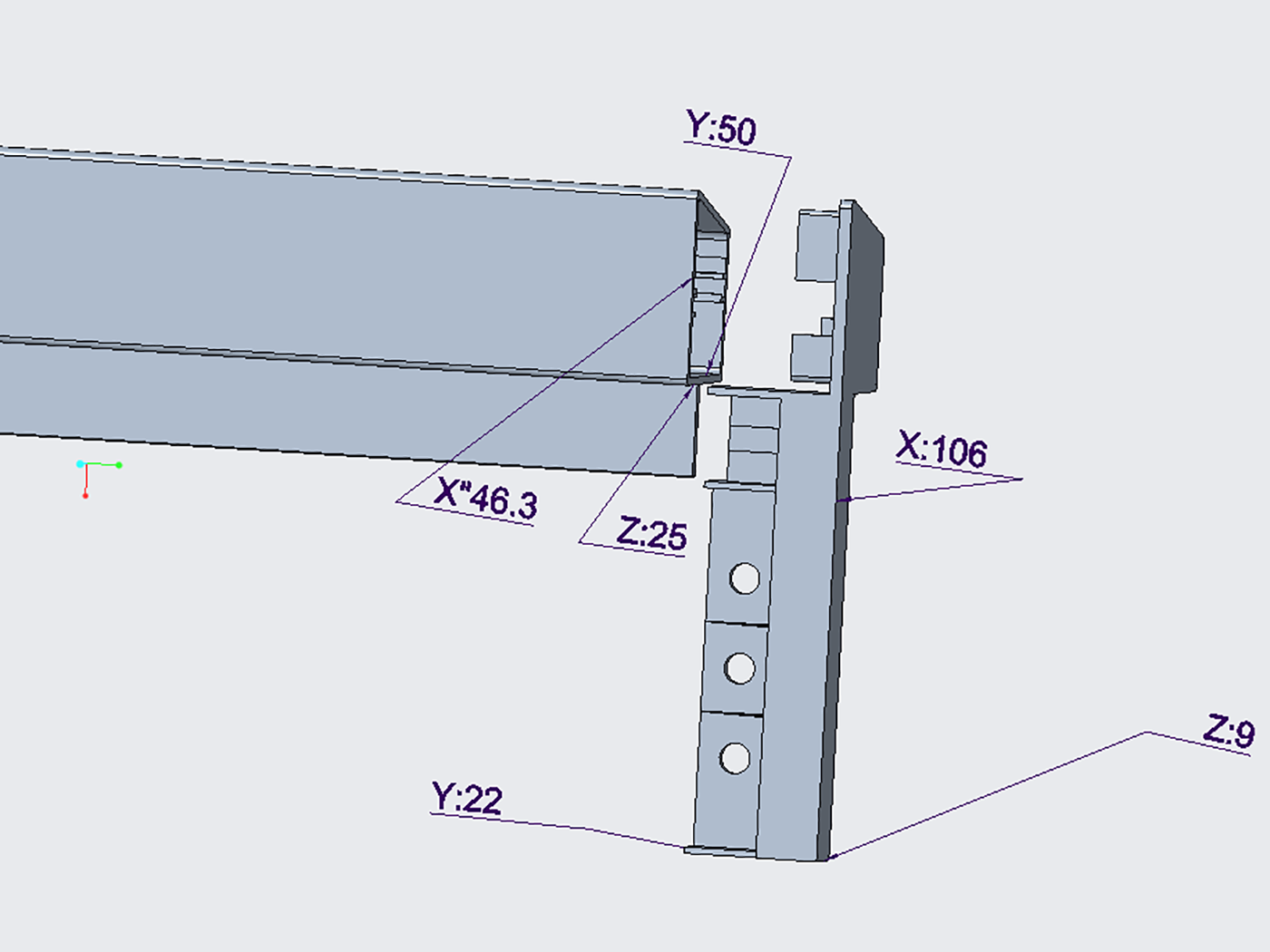

Product Dimensions (Unit: mm)

Main Performance and Technical Parameters

Technical Specifications

Function Description

After the lamp is powered on for the first time, the built-in radar induction module performs self-inspection for about 15 seconds, then enters standby state.When human movement is sensed, the lamp lights up and keeps on for 60 seconds.If human movement is detected again within 60 seconds, the delay time will be reset and the lamp remains continuously on.The lamp will automatically turn off about 60 seconds after no human movement is detected.

Detection Range

Installation height: 1.5～2mInduction coverage radius: 2.5mDivided into strong induction range and weak induction range.

Installation Notes

1. Do not install in areas with continuously moving non-human objects such as pets, swinging curtains and plants facing air outlets.

2. Avoid large-area strong reflection planes facing the lamp, which may cause radar signal interference.

3. The lamp shall be installed firmly; keep away from vibration sources such as air conditioners and fans to prevent false induction triggering.

Packaging Parameters

Wiring Method

Brown Wire (L): Live WireBlue Wire (N): Neutral Wire

Note: The product shall be kept powered on all the time, not controlled by ordinary wall switch.

Executive Standards

GB 7000.201-2008GB 7000.1-2015GB/T 17743-2021GB 17625.1-2022GB 19510.1-2009GB 24819-2009

Packaging, Transportation and Storage

1. Packaging: 20 sets per carton, attached with product nameplate and installation manual.

2. Transportation: Keep dry, moisture-proof, dust-proof and mildew-proof; avoid rain soaking, direct sunlight and mechanical damage.

3. Storage:Storage temperature: -20℃ ~ +40℃Relative humidity: ≤80%Store in dry warehouse without acidic, alkaline or corrosive gas.
