0808 12V 24V Flexible Top Emitting IP65 Square LED Neon Strip

I. Core Product Parameters

1. LED Chip Model: SMD 2835

2. LED Density: 150 LEDs/m

3. Input Voltage: DC12V / DC24V (Optional)

4. Power Consumption:

• 12V: 9.6W/M (150 LEDs/m); 4.8W/M (150 LEDs/m); 14.4W/M (240 LEDs/m)

• 24V: 10W/M (168 LEDs/m); 5W/M (168 LEDs/m); 14.4W/M (240 LEDs/m)

5. Beam Angle: 120° Top Emitting

6. Housing Material: Full silicone extrusion, environmentally friendly and anti-yellowing

7. Waterproof Grade: IP67 (Suitable for indoor/outdoor humid environments; IP68 optional)

8. Bending Radius: ≥40mm, flexible and bendable

9. Cutting Specification: Cuttable every 25mm

10. Color Temperature (Optional):

• Warm White: 3000K

• Natural White: 4000K

• Cool White: 6000K

• Colorful: Red/Green/Blue/Yellow/Pink/RGB

II. Optical Parameters

• Color Rendering Index (CRI): ≥90 (CRI95 high color rendering optional)

• Luminous Efficacy: ≥100lm/W

• No light spots, anti-glare, uniform light emission throughout

• Constant voltage drive, stable light without flicker

III. Structure & Material

1. Outer Layer: Food-grade solid silicone, pressure-resistant, wear-resistant and anti-aging

2. Middle Layer: FPC flexible circuit board, ultra-thin and fold-resistant

3. Inner Layer: High-conductivity copper circuit, low voltage drop and stable conductivity

4. Craftsmanship: Integrated extrusion molding, sealed dust-proof and waterproof

IV. Electrical Performance

• Working Current: Stable constant voltage input

• Driving Mode: Matching with Constant Voltage LED Driver

• Line Voltage Drop: Low voltage and low loss; maximum length recommended: 5m for 12V, 10m for 24V

• Insulation Class: Class Ⅲ

• Working Temperature: -20℃ ～ +60℃

V. Installation Method

1. Self-adhesive 3M tape on the back for easy paste installation

2. Can be fixed with U-shaped/V-shaped LED Aluminum Profile to improve heat dissipation and aesthetics

3. Suitable for recessed installation, surface installation, corner installation and cabinet interlayer hidden installation

VI. Product Advantages

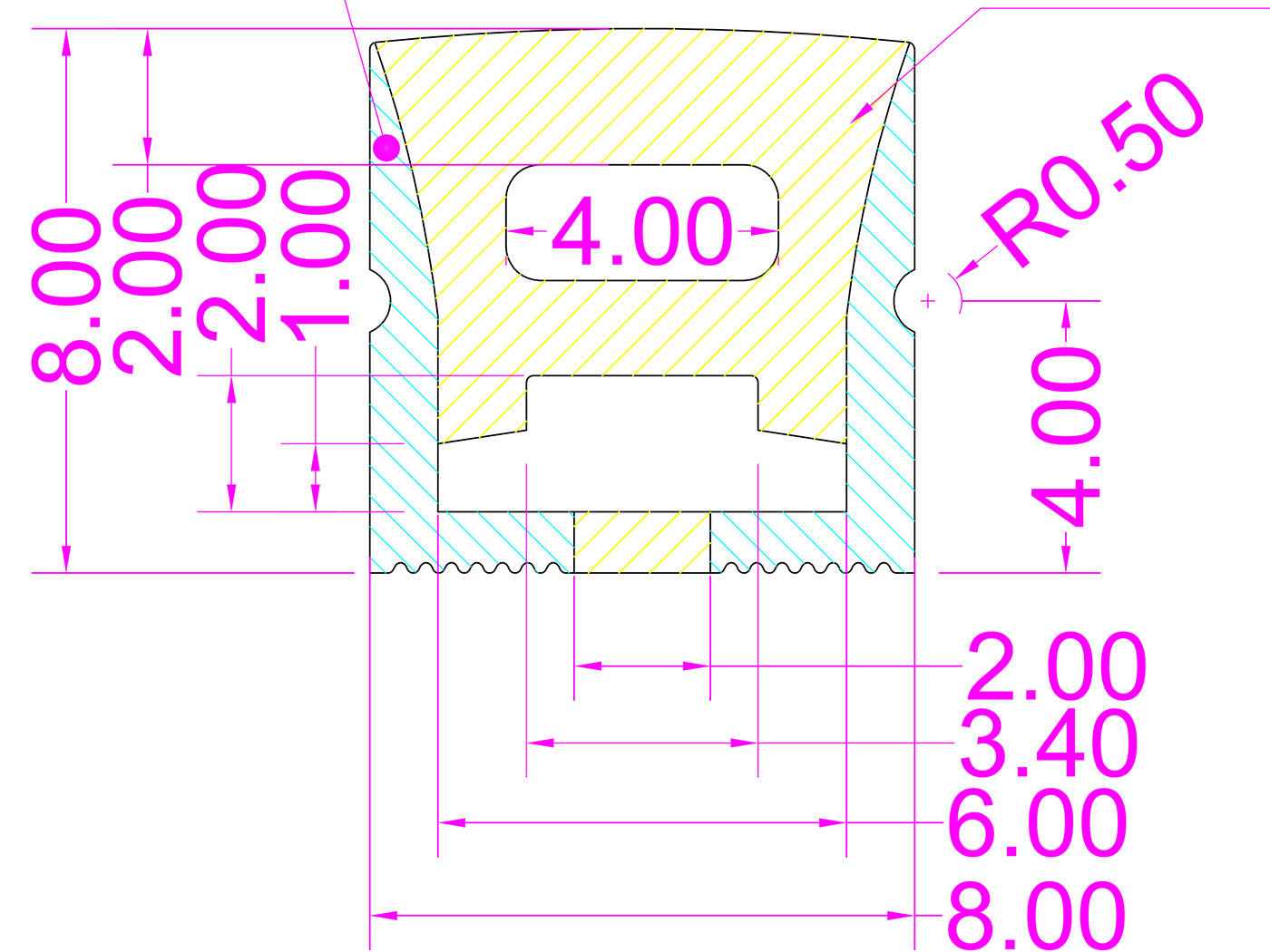

• 0808 medium size (8mm×8mm), balanced for narrow spaces and brightness, suitable for more scenarios

• Top emitting design, direct front light emission, no side light leakage, uniform glow without hot spots

• Full silicone waterproof and moisture-proof, IP67 standard, optional IP68 for outdoor harsh environments

• Multiple LED density options, adjustable brightness to meet different lighting needs

• Flexible and bendable, easy to install on arcs, corners and special-shaped surfaces

• No ultraviolet rays, no radiation, safe and environmentally friendly for home and commercial use, long service life

VII. Packaging & Warranty

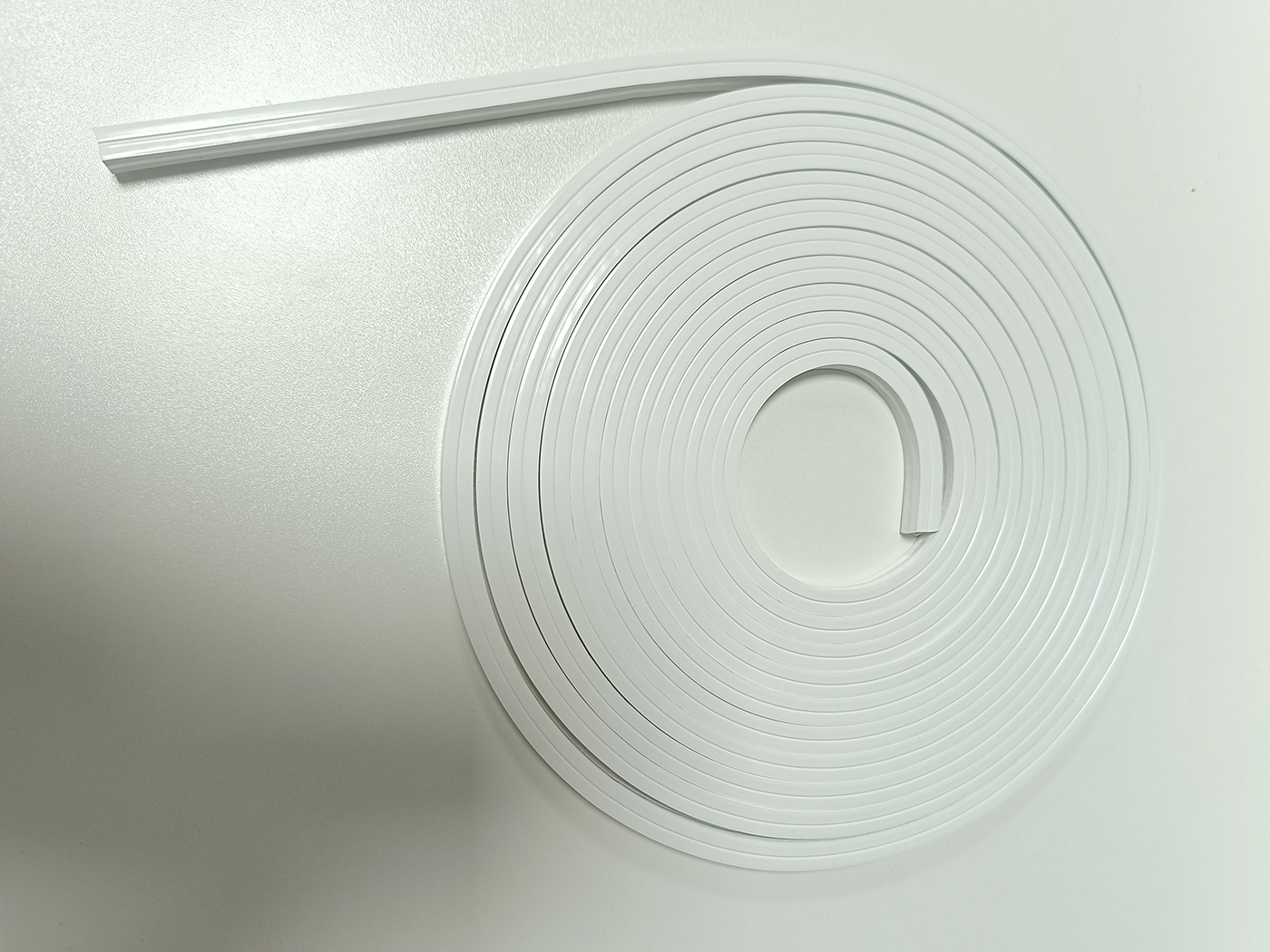

• Standard Packaging: 5m/roll, 10m/roll, or 50m/roll

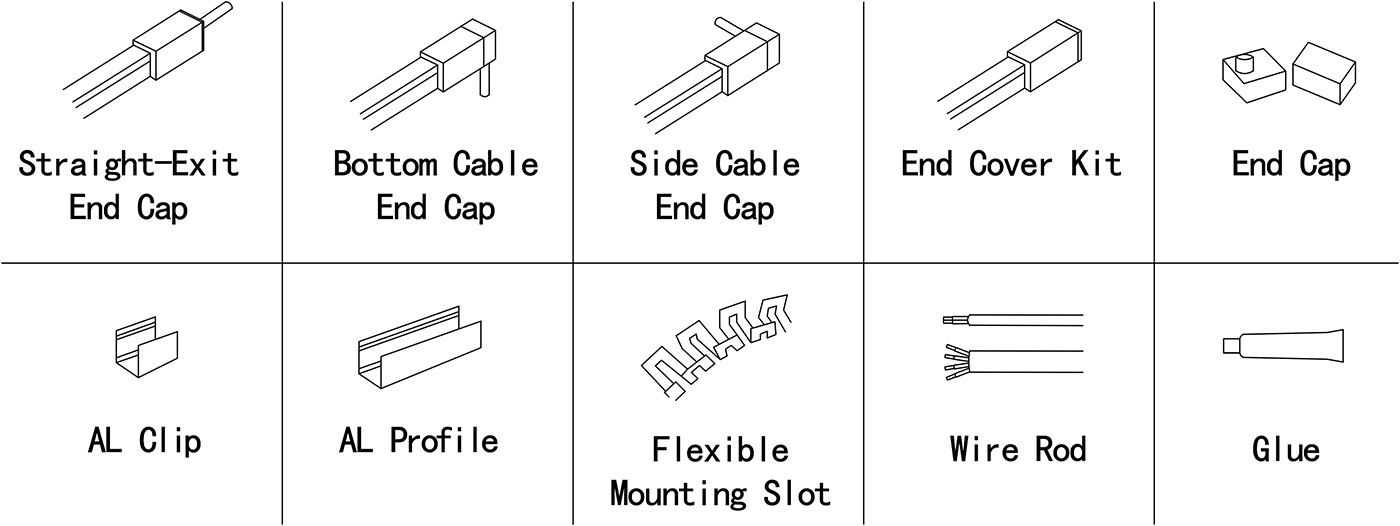

• Accessories: End caps, terminal blocks, fixing buckles

• Service Life: 50000 hours

• Warranty Period: 3 years standard warranty

VIII. Matching Products (Relevant Products on Your Website)

• Matching Power Supply: 12V/24V Constant Voltage LED Driver

• Matching Profile: LED Aluminum Profile (8mm narrow model)

• Relevant Categories: Top Emitting Silicone Neon Strip, Under Cabinet Lights, LED Linear Lights

Detail

Material

Certificate

Hot Tags: Square LED Neon Strip, 12V 24V Flexible Neon Flex, IP65 Waterproof Silicone LED Strip, Top Emitting LED Neon, Flexible Silicone LED Strip, DC24V LED Neon Strip, Flexible LED Strip Light, Mini 24V LED Strip, Bright LED Strip Lights, China, custom, Customized, wholesale, OEM, manufacturers, manufacturing company, suppliers, factory, Free Sample
