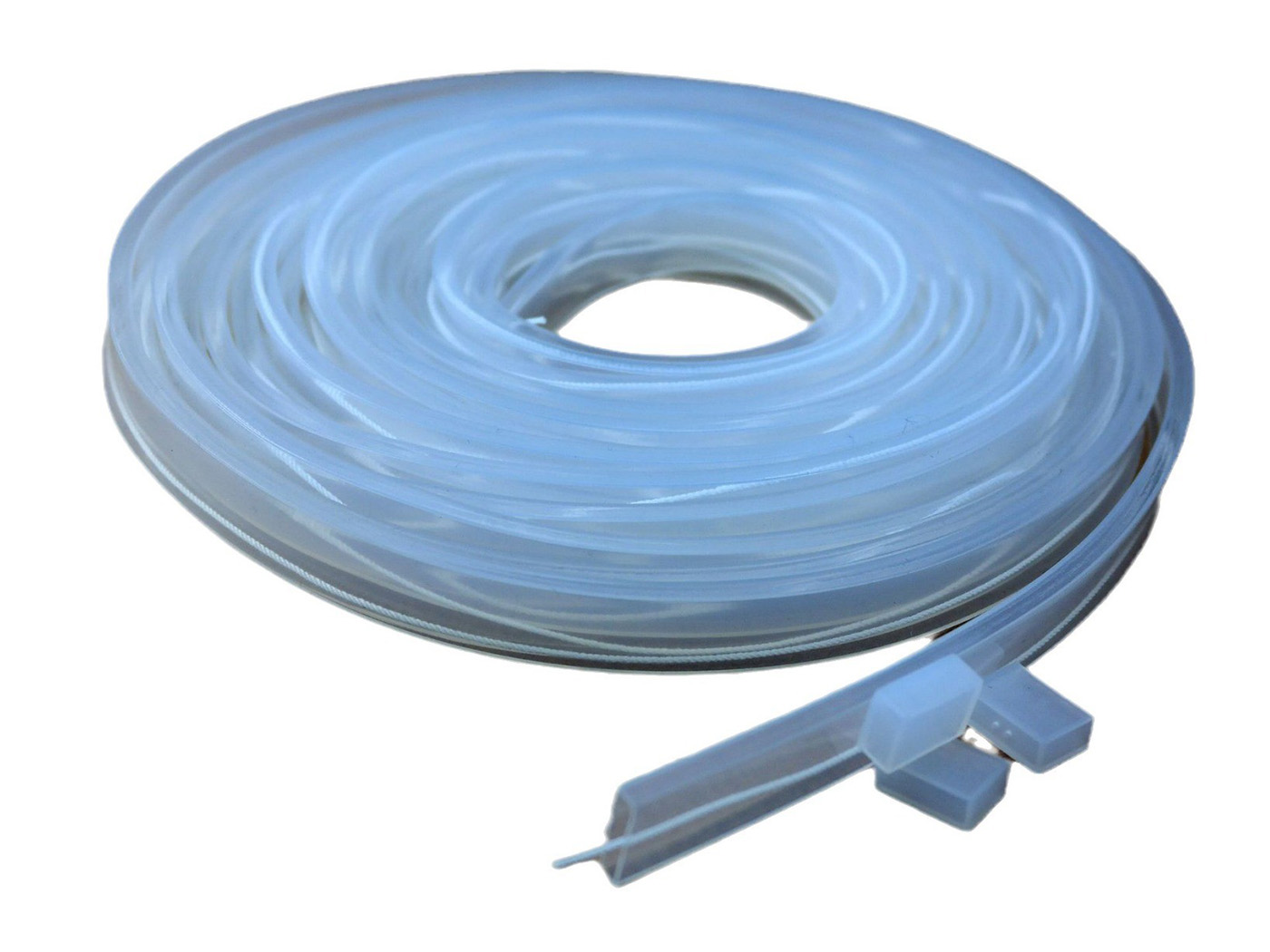

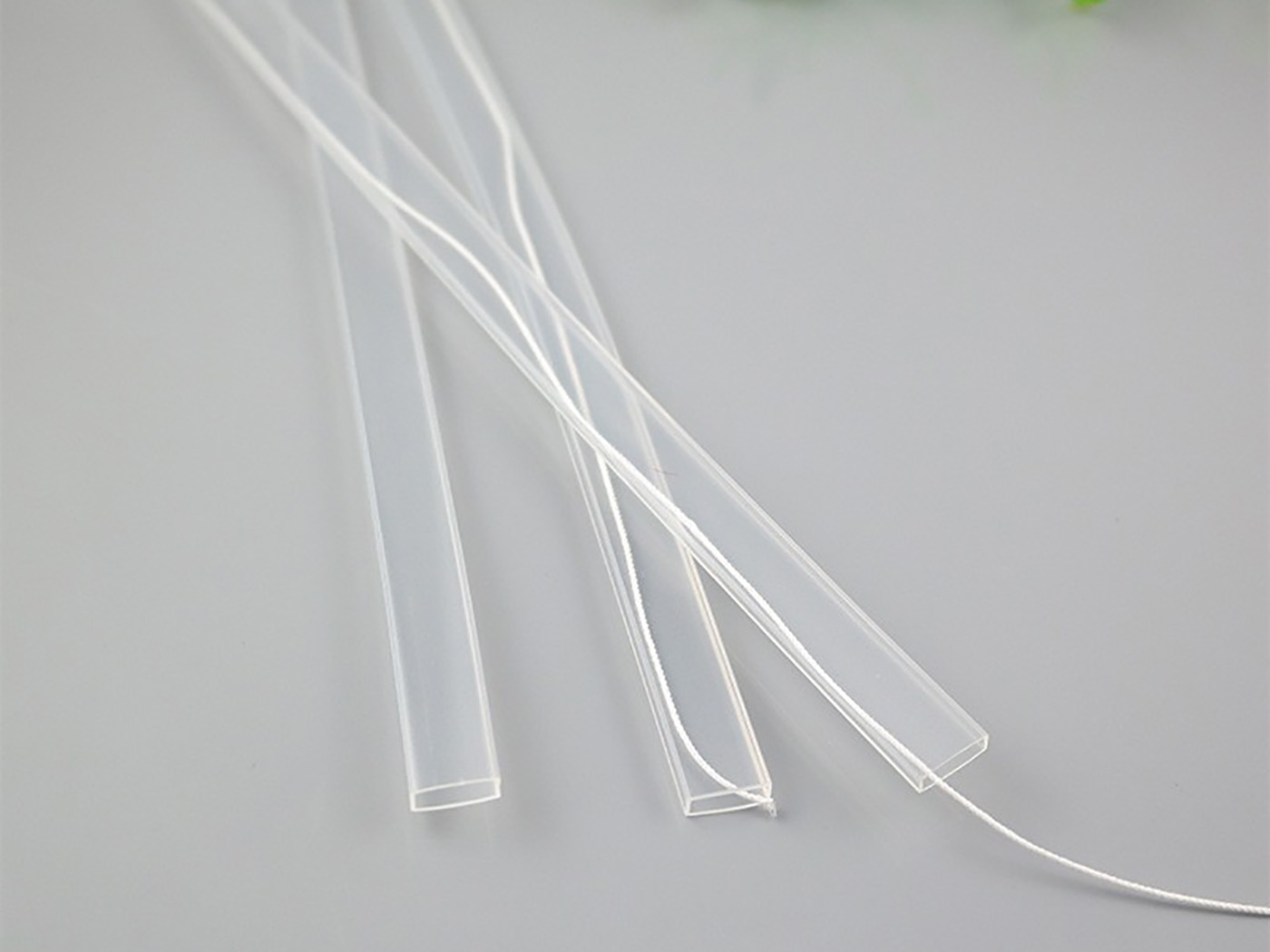

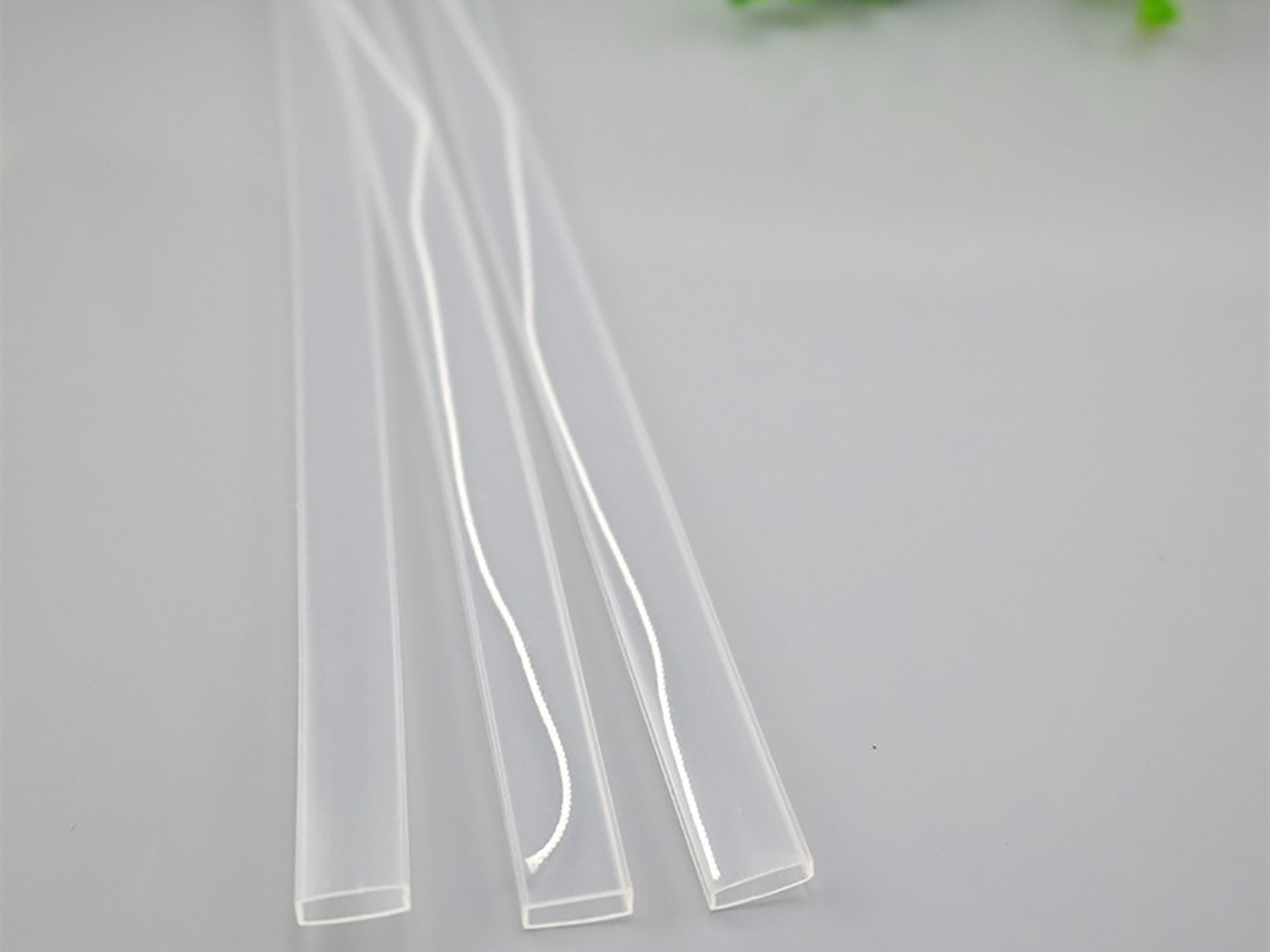

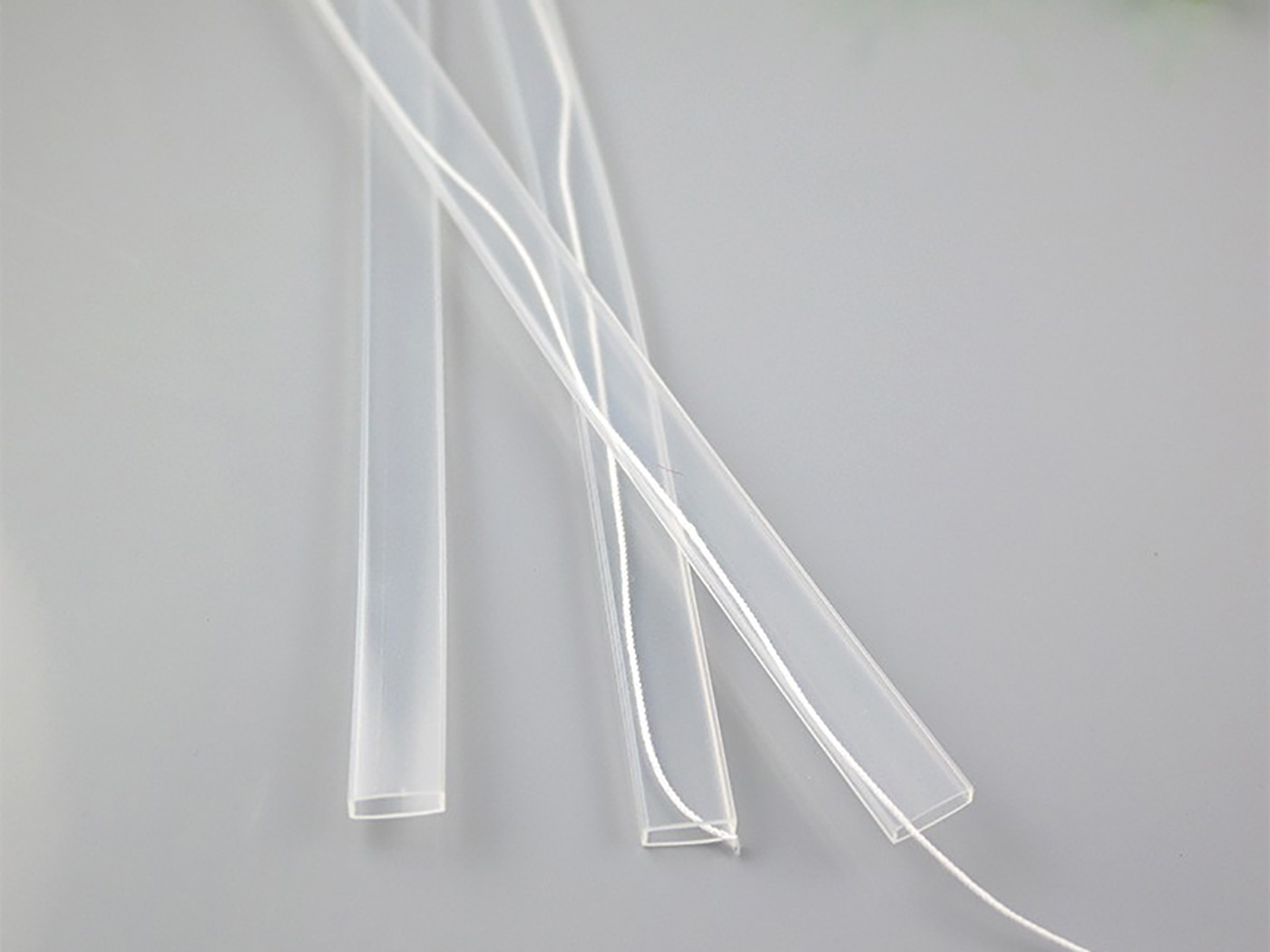

OEM ODM LED Neon Sleeve Transparent Silicone Hose Tube Custom LED Strip Silicone Sleeve

OEM ODM LED Neon Sleeve Transparent Silicone Hose Tube Custom LED Strip Silicone Sleeve


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FC1005 | Outer Size: 10mm(W)×5mm(H) | Ultra-Thin Flat Top-Emitting Silicone Tube

Model:
FW-T-1105

OEM ODM Led Neon Sleeve Transparent Silicone Hose Tube Custom Led Strip Silicone Sleeve Silicone Tube For Led Neon Strip Custom Silicone Neon Cover Transparent Led Strip Protector Custom Flexible Silicone Tube OEM Silicone Neon Tube Led Strip Custom Sleeve

Product Description

Core Specifications

Item	Standard Specification
Model Number	FC1005
Outer Dimension	10mm × 5mm (Ultra-Thin Flat Profile)
Inner Dimension	8mm × 3mm (fits 8mm wide bare ultra-thin LED strips)
Uniform Wall Thickness	1mm
Silicone Material	Food-grade fumed silica, anti-yellowing formula
Hardness	30±5 Shore A
Waterproof Grade	IP67 (after sealed with matching end caps & silicone glue)
Working Temperature Range	-40℃ ~ +120℃
UV Resistance	Grade 4-5, long-term anti-aging
Light Transmittance	≥90% (high transparent version)
Standard Roll Length	50m/roll, 100m/roll (custom length available)

Key Features

Ultra-thin flat profile, only 5mm thickness, specially designed for 8mm wide ultra-thin LED strips, perfect for ultra-narrow gap hidden installation
Ultra-soft and flexible, supports small-radius bending, no cracking or white marks after long-term use
Fully compatible with 10×5mm ultra-thin mounting clips, aluminum channels and installation accessories
One-piece extrusion molding, seamless structure, uniform light output

Optional Types

Type	Core Feature	Application Scenario
High Transparent Version	≥90% light transmittance, minimal brightness loss	Ultra-thin hidden lighting, high brightness demand scenes
Milky White Diffusion Version	Uniform soft glow, no visible LED dots, anti-glare	Indoor cabinet, wardrobe ultra-thin lighting
Black Light-Blocking Version	Side & back light blocking, only front emitting	Ultra-narrow dark slot concealed lighting

Typical Applications

Ultra-thin cabinet, wardrobe, furniture layer board lighting strip protection
Narrow gap hidden linear lighting strip protection
Mirror, frame surrounding ultra-thin lighting strip protection
Commercial display shelf ultra-thin lighting strip waterproof upgrade

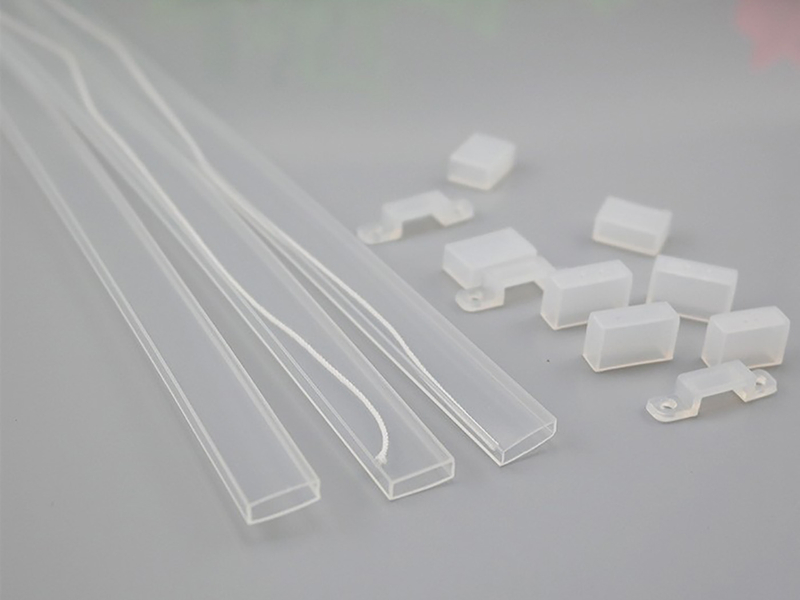

Matching Accessories

IP67 mini waterproof connectors
FC1005 dedicated waterproof end caps
Food-grade silicone sealant
10mm ultra-thin mounting clips
10×5mm ultra-thin aluminum mounting channels
