Factory Direct Sales 4x8mm Silicone Neon Sleeve Suitable for 5MM PCB LED Strip Tube

Factory Direct Sales 4x8mm Silicone Neon Sleeve Suitable for 5MM PCB LED Strip Tube


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FW-T-0408 | Outer Size: 4mm(W)×8mm(H) | Slim Rectangular Protective Silicone Sleeve

Model:
FW-T-0408

4X8Mm Silicone Neon Sleeve 5Mm Pcb Neon Sleeve Flexible Neon Silicone Cover 4*8Mm Flexible Neon Tube Led Strip Enclosure Sleeve Neon Silicone Protective Cover

Product Description

Core Specifications

Item	Standard Specification
Model Number	FW-T-0408

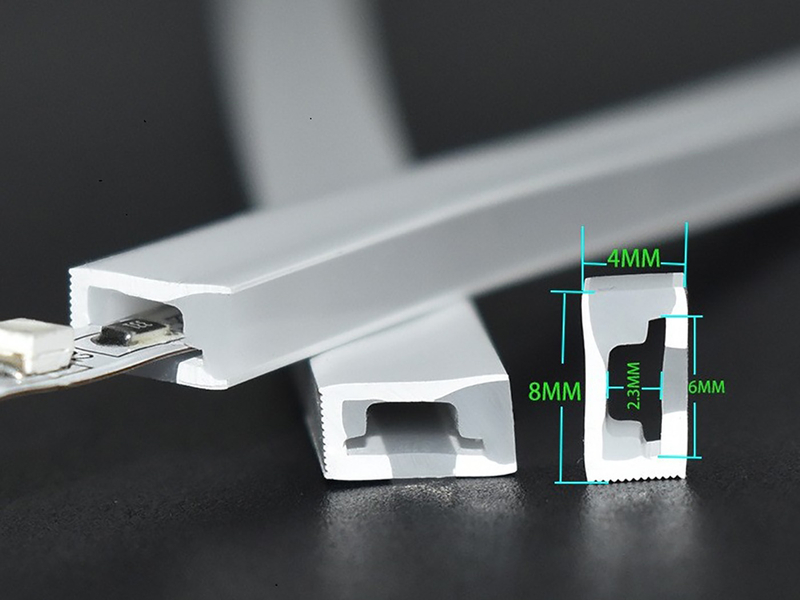

Outer Dimension	4mm × 8mm (Rectangular Profile)
Inner Dimension	2mm × 6mm (fits 3mm wide bare LED strips)
Uniform Wall Thickness	1mm
Silicone Material	Food-grade fumed silica, anti-yellowing formula
Hardness	30±5 Shore A
Waterproof Grade	IP67 (after sealed with matching end caps & silicone glue)
Working Temperature Range	-40℃ ~ +120℃
UV Resistance	Grade 4-5, long-term anti-aging
Light Transmittance	≥90% (high transparent version)
Standard Roll Length	50m/roll, 100m/roll (custom length available)

Key Features

One-piece extrusion molding, seamless structure, no light leakage
Ultra-slim profile, specially designed for 3mm narrow bare PCB LED strips, provides full IP67 waterproof, dustproof and scratch-resistant protection
Ultra-soft and flexible, supports small-radius bending, no cracking or white marks after long-term use
Fully compatible with 4×8mm neon strip mounting clips and installation accessories

Optional Types

Type	Core Feature	Application Scenario
High Transparent Version	≥90% light transmittance, minimal brightness loss	Side emitting narrow strip, ultra-slim hidden lighting
Milky White Diffusion Version	Uniform soft glow, no visible LED dots, anti-glare	Indoor cabinet, display shelf narrow slot lighting
Black Light-Blocking Version	Side & back light blocking, only front emitting	Dark slot concealed lighting, anti-light interference scenes

Typical Applications

DIY small lighting projects strip protection
Ultra-narrow cabinet, wardrobe, furniture edge lighting strip protection
Miniature display, craft model decorative strip protection
Narrow slot hidden linear lighting strip waterproof upgrade

Matching Accessories

IP67 mini waterproof connectors
FW-T-0408 dedicated waterproof end caps
Food-grade silicone sealant
4mm slim mounting clips
4×8mm aluminum mounting channels

Detail
