8x8mm Silicone LED Small Size Neon Tube Cover


CERTIFICATE:	CE RoHS UKCA ISO CB ETL SAA FCC TUV UL PATENT
Availability:

Quantity:



Inquire Add to Basket

Model: FC0808 | Outer Size: 8mm(W)×8mm(H) | Square Top-Emitting Silicone Tube

Model:
FW-T-0808

Small Size Neon Tube Cover Mini Led Strip Diffuser 8X8Mm Silicone Neon Tube Silicone Diffuser For Led Strip 8*8Mm Led Neon Sleeve Slim Pcb Light Protector Compact Silicone Neon Diffuser Mini Flexible Neon Cover

Product Description

Core Specifications

Item	Standard Specification
Model Number	FC0808

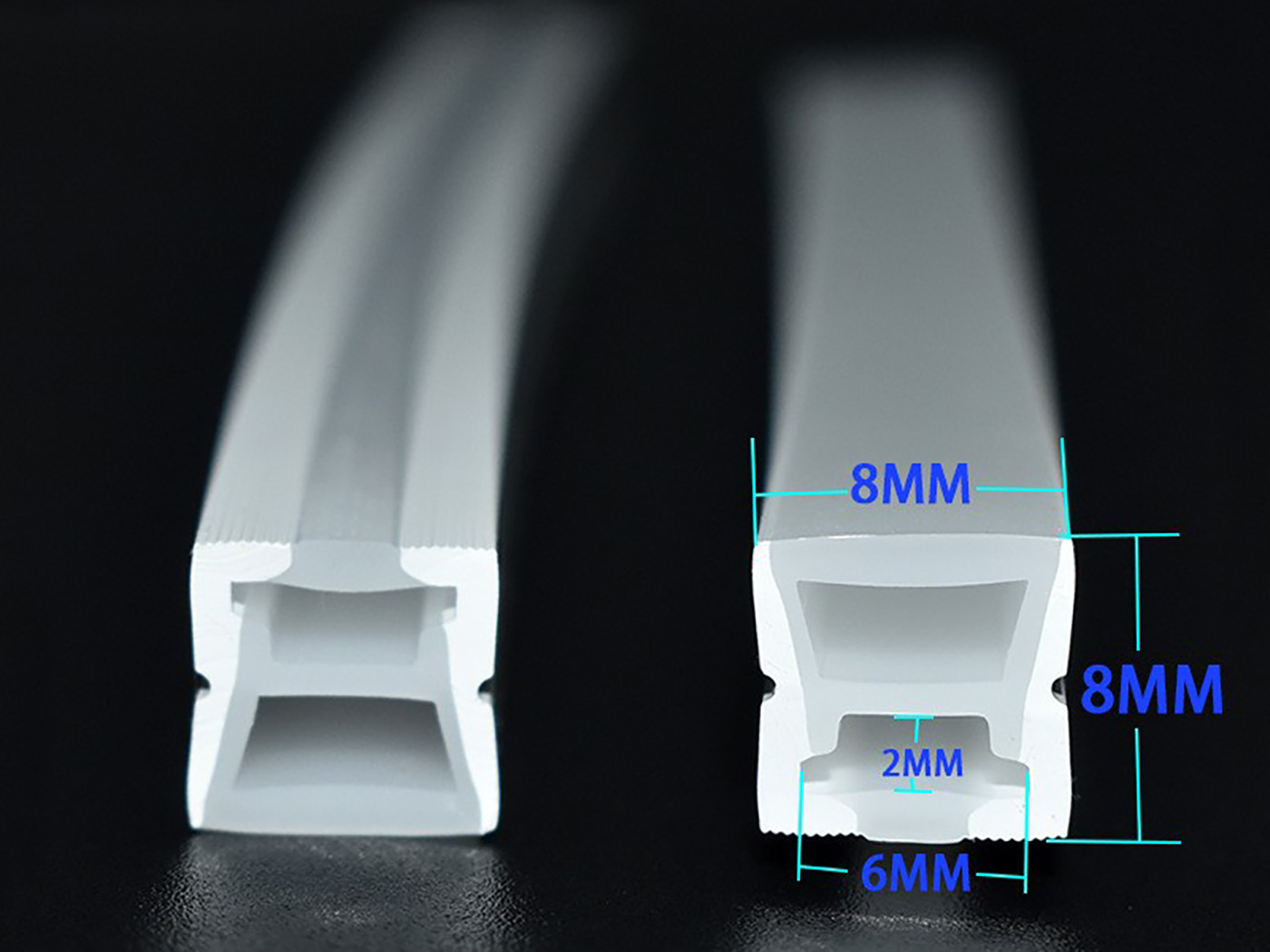

Outer Dimension	8mm × 8mm (Square Profile)
Inner Dimension	6mm × 6mm (fits 8mm wide bare top-emitting LED strips)
Uniform Wall Thickness	1mm
Silicone Material	Food-grade fumed silica, anti-yellowing formula
Hardness	30±5 Shore A
Waterproof Grade	IP67 (after sealed with matching end caps & silicone glue)
Working Temperature Range	-40℃ ~ +120℃
UV Resistance	Grade 4-5, long-term anti-aging
Light Transmittance	≥90% (high transparent version)
Standard Roll Length	50m/roll, 100m/roll (custom length available)

Key Features

One-piece extrusion molding, seamless structure, uniform top light output

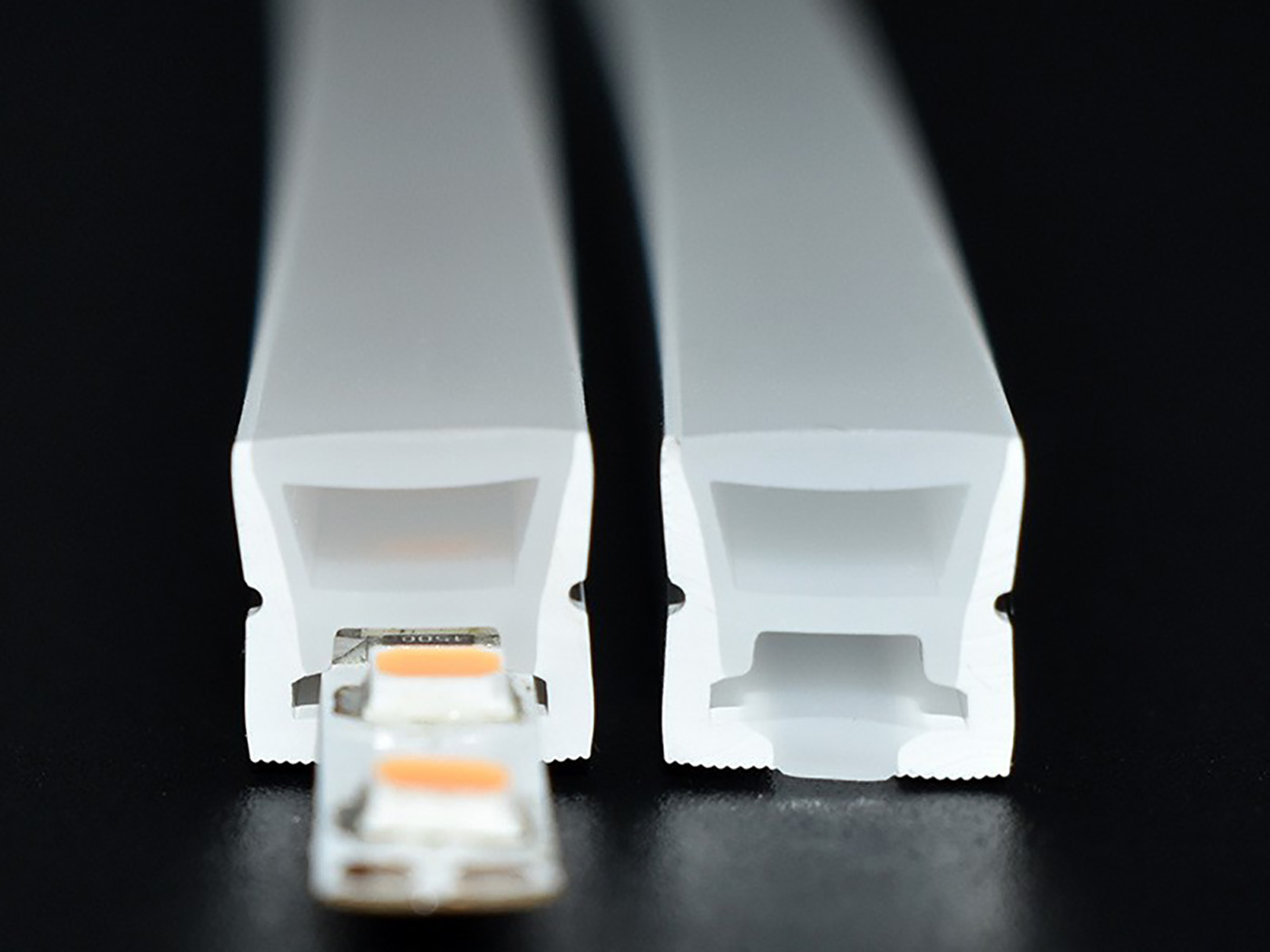

Standard square profile, specially designed for 8mm wide conventional top-emitting LED strips, provides full IP67 waterproof, dustproof and scratch-resistant protection
Soft and flexible, easy to bend with the strip, no cracking or deformation after long-term use
Fully compatible with 8×8mm neon strip mounting clips, aluminum channels and installation accessories

Optional Types

Type	Core Feature	Application Scenario
High Transparent Version	≥90% light transmittance, minimal brightness loss	High brightness demand scenes, outdoor contour lighting
Milky White Diffusion Version	Uniform soft glow, no visible LED dots, anti-glare	Indoor cabinet, home, commercial display lighting
Black Light-Blocking Version	Side & back light blocking, only front emitting	Dark slot concealed lighting, anti-light interference scenes

Typical Applications

DIY lighting projects and small engineering strip protection
Cabinet, wardrobe, furniture top-emitting lighting strip protection
Indoor home, commercial display linear lighting strip protection
Ceiling cove, wall outline decorative lighting strip protection

Matching Accessories

IP67 waterproof connectors
FC0808 dedicated waterproof end caps
Food-grade silicone sealant
8mm mounting clips
8×8mm aluminum mounting channels

Detail
