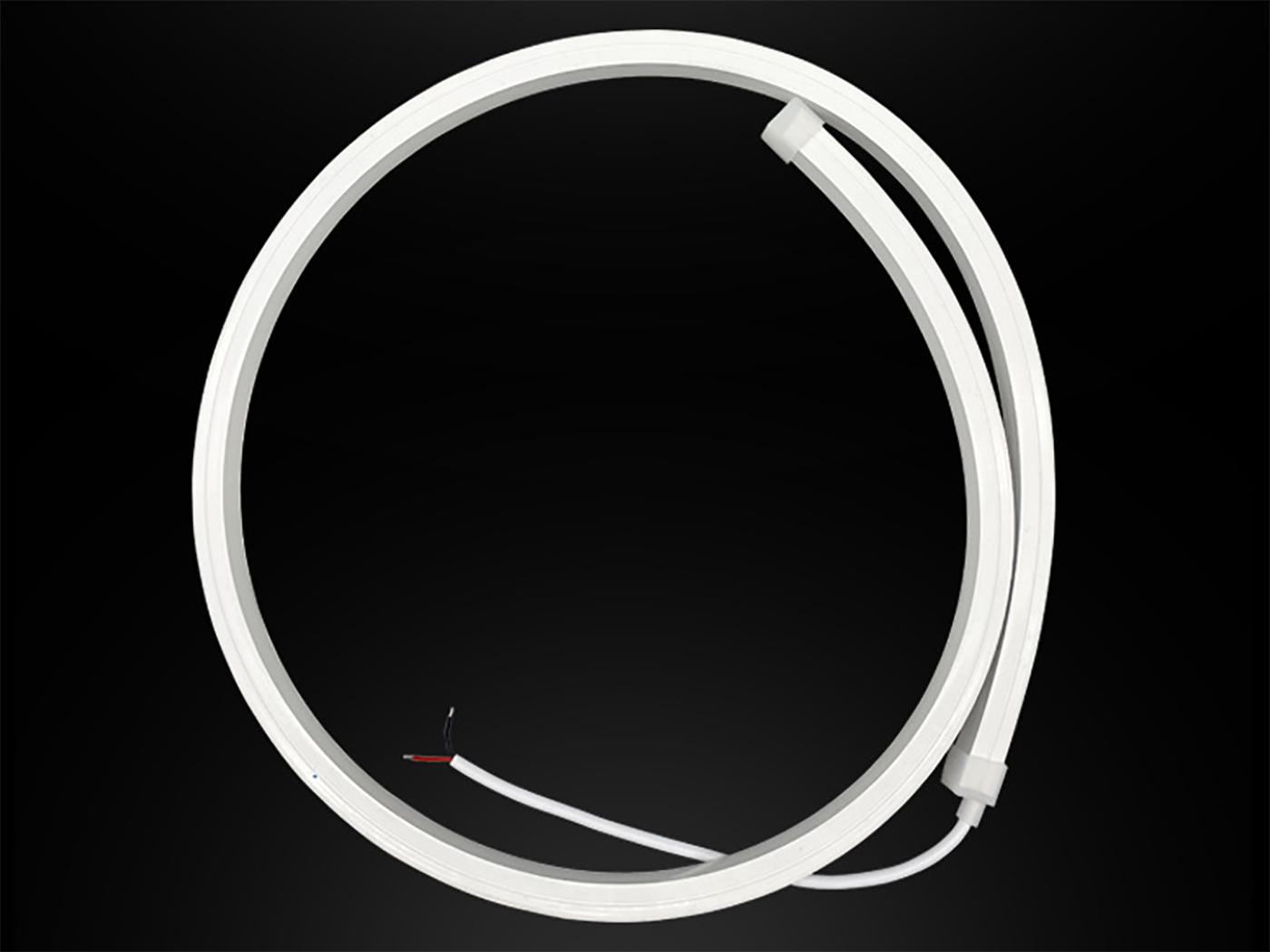

FW-S-1010Y
Customizable Options: Supports custom silicone jacket color, color temperature, CRI and LED density to meet personalized project needs.

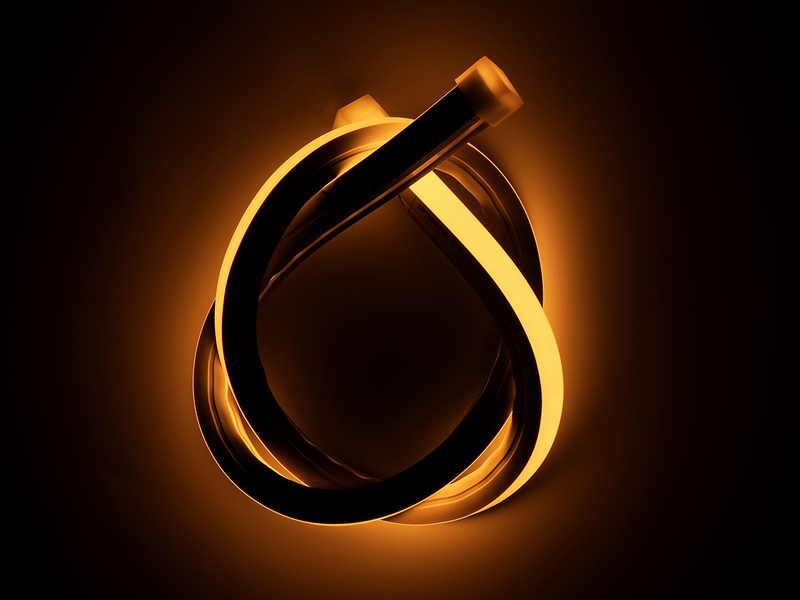

3D Omni-Directional Bending Design: Supports left-right bidirectional horizontal folding, up-down vertical bending, and 3D stereo twisting, breaking the limit of single-direction bending of traditional strips, and easily adapting to complex corners and creative shapes.
Standard 10×10mm Square Profile: Universal size, compatible with conventional 10mm square neon strip mounting accessories and channels, easy for replacement and installation.
Uniform Top Emitting Optical Design: Built-in high-density LED chips, unique light diffusion structure, uniform and soft light output without dark spots, dots or glare.
High-Quality Silicone Material: One-piece integrated extrusion with food-grade anti-yellowing flexible silicone, UV-resistant, salt-spray proof, and excellent anti-aging performance.
Low Voltage Drop Circuit: 3oz thickened FPC flexible circuit board, ultra-low voltage drop, consistent brightness from start to end for long strip runs.

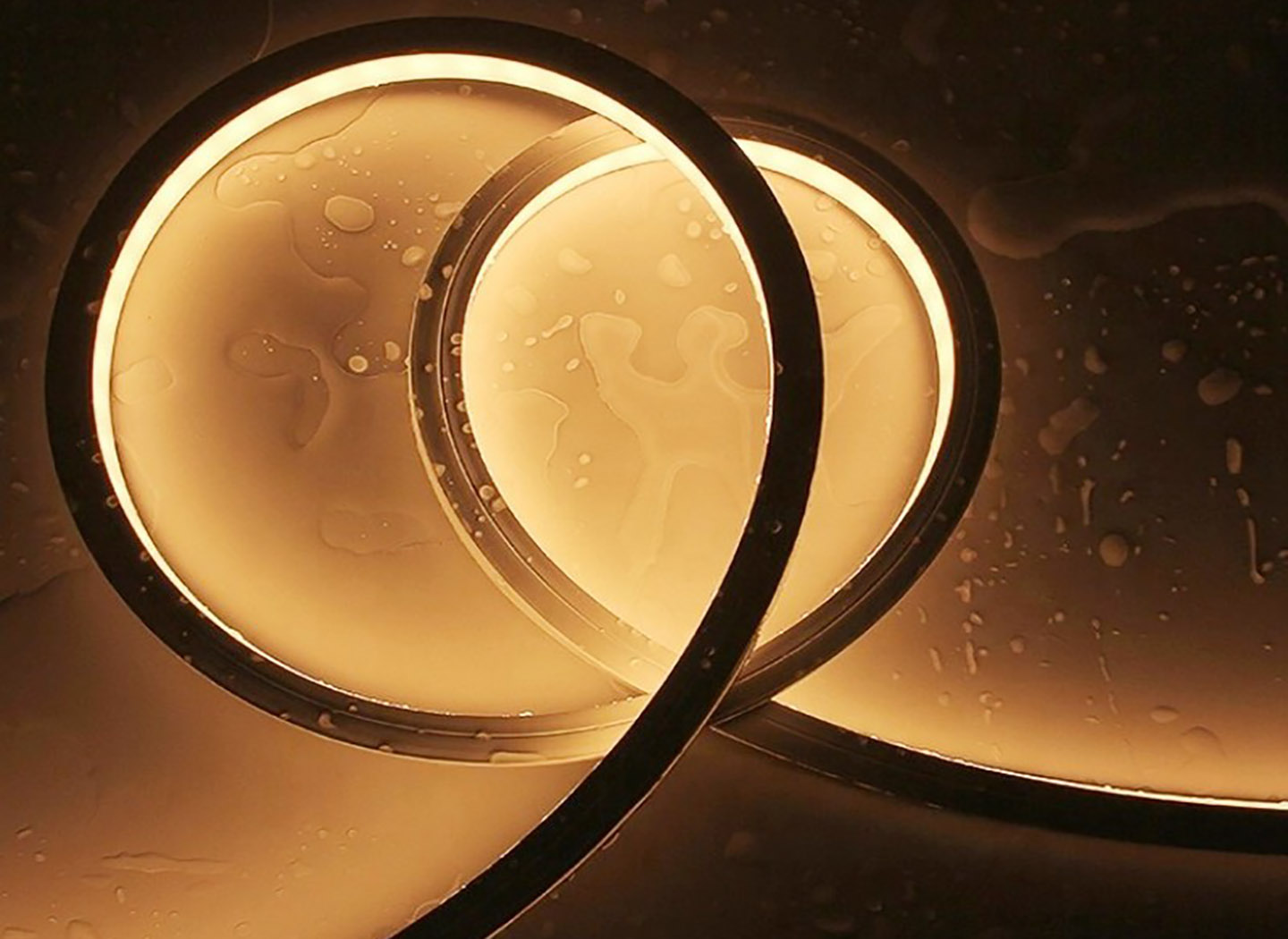

Full Waterproof & Dustproof: Fully sealed structure, standard IP67 waterproof rating, suitable for both indoor and covered outdoor long-term use.
High Reliability: LM80 certified high-brightness LED chips, stable color consistency, long service life, and wide working temperature range.
Item | Standard Specification |
Model Number | FW-S-1010Y |
Product Shape | Square Profile |
Product Size | 10mm (Width) × 10mm (Height) |
Core Feature | 3D Omni-Directional Bending, Left-Right Bidirectional Foldable |
Emitting Type | Top Emitting & Side Emitting |
LED Chip Type | SMD 2835 High Brightness |
LED Quantity | 120 LEDs/m |
Rated Input Voltage | DC 24V |
Power Consumption | 12W/m |
Beam Angle | 120° |
Waterproof Grade | IP67 |
Minimum Bending Radius | ≥ 30mm (All Directions) |
Minimum Cutting Unit | 6 LEDs / 50mm |

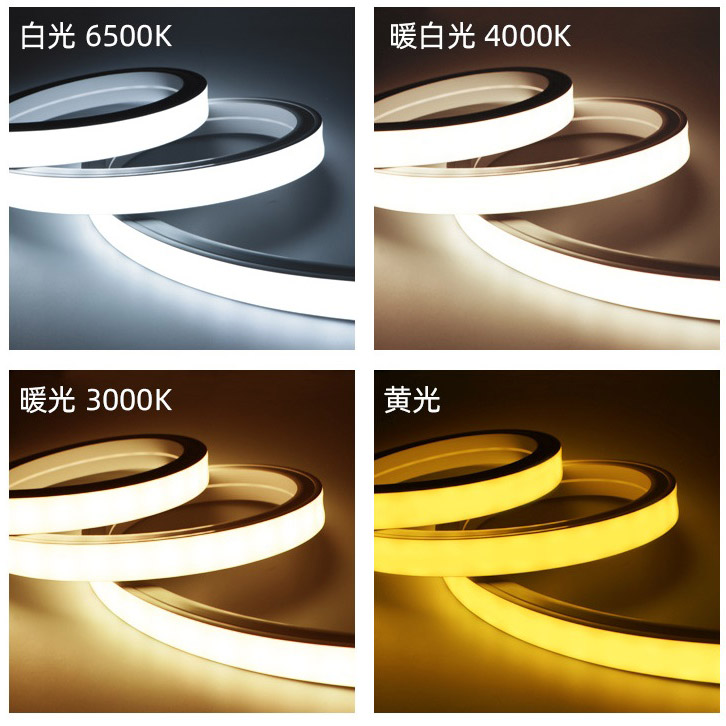

Color Temperature (CCT) | 2700K / 3000K / 4000K / 6000K |
Color Rendering Index (CRI) | Ra ≥ 80 |
Luminous Efficacy | ≥ 85 lm/W |
Silicone Material | Anti-yellowing food-grade extrusion silicone |
Working Temperature Range | -20℃ ~ +45℃ |
Storage Temperature Range | -40℃ ~ +80℃ |
Standard Length | 5m per roll |
Rated Lifespan | ≥ 50,000 hours |
Warranty | 3 Years |
Bending Type | Performance | Application Scenario |
Left-Right Bidirectional Horizontal Folding | Supported, min. bending radius ≥30mm | 90° right-angle corners, horizontal irregular contours |
Up-Down Vertical Bending | Supported, min. bending radius ≥30mm | Vertical outline, ceiling cove, cabinet edge lighting |
3D Stereo Twisting | Supported, twist angle ≤90° within 20cm length | Spiral modeling, art installation, creative shaped lighting |
Single-Direction Continuous Bending | Supported, min. bending radius ≥30mm | Arc contour, circular modeling, curved wall lighting |
Note: Compared with traditional neon strips that only support single-direction bending, FW1010 3D eliminates the limitation of bending direction, and can be freely shaped in 3D space without damaging the circuit and LED chips.
Category | Available Colors |
Standard Diffusion | Milky White (High Uniformity), High Transparent |
Solid Opaque Color | Black, White, Red, Yellow, Blue, Green, Pink, Purple |
Custom Color | Pantone color matching for bulk orders |
Mirror, frame and decorative line lighting with complex corners
Irregular furniture, cabinet and wardrobe edge lighting with multiple corners
Creative art installation and 3D stereo modeling lighting
Spiral staircase, handrail and irregular building contour lighting
Commercial window, showcase and exhibition booth complex shaped lighting
Bar, KTV, stage and entertainment venue creative decorative lighting
Indoor and outdoor themed landscape and irregular outline lighting
Bending Rule: The strip supports omni-directional free bending, with a minimum bending radius of ≥30mm in all directions. Sharp folding, violent twisting over 90°, heavy pulling or impact are strictly prohibited.
Cutting Rule: Only cut the strip at the marked cutting lines to avoid damaging the internal circuit and LED chips.
Mounting Suggestion: Use matched mounting clips, 3M tape or aluminum channel for fixed installation, with at least 3 clips per meter to ensure stability, especially at bending positions.
Power Supply: Use a DC24V isolated constant voltage LED driver, with a 20% power margin reserved for stable operation.
Wiring: Strictly follow the positive and negative polarity marks for wiring (red for positive, black for negative) to avoid short circuit and product damage.
10×10mm square waterproof end cap (top/side/bottom wire exit optional)
Mounting clips for 10mm square strip
10mm square aluminum mounting channel
DC24V constant voltage LED driver
IP67 waterproof connectors and extension wires
Custom colored end caps matched with silicone jacket
Standard certifications: CE, RoHS
