LED strip voltage drop can turn a carefully designed furniture installation into an uneven line of light. Cabinets look bright near the power connection but dull at the opposite end. Wardrobe lighting loses consistency across compartments. An illuminated bed frame appears balanced on one side and noticeably weaker on the other.
At Farwise Technology Co., Ltd., our focus is furniture lighting, supported by 16 years in the LED lighting industry. This guide explains how to evaluate voltage drop, distinguish electrical faults from optical differences, and plan practical lighting systems before production or installation.
Voltage drop is the reduction in electrical potential as current passes through resistance. In an LED lighting system, that resistance exists in supply cables, connections, and the conductive tracks inside the strip.
For conventional constant-voltage strips, insufficient voltage at downstream sections can reduce LED current and light output. The result may be progressive dimming or, with some products, changes in apparent color.
A useful distinction is where the loss occurs:
- Before the strip: supply cables, connectors, switches, and controllers.
- Along the strip: resistance in the conductive tracks.
- At a specific joint: poor contact or an unsuitable connection.
These locations require different corrective actions. Replacing the strip will not solve excessive loss in an undersized supply cable.

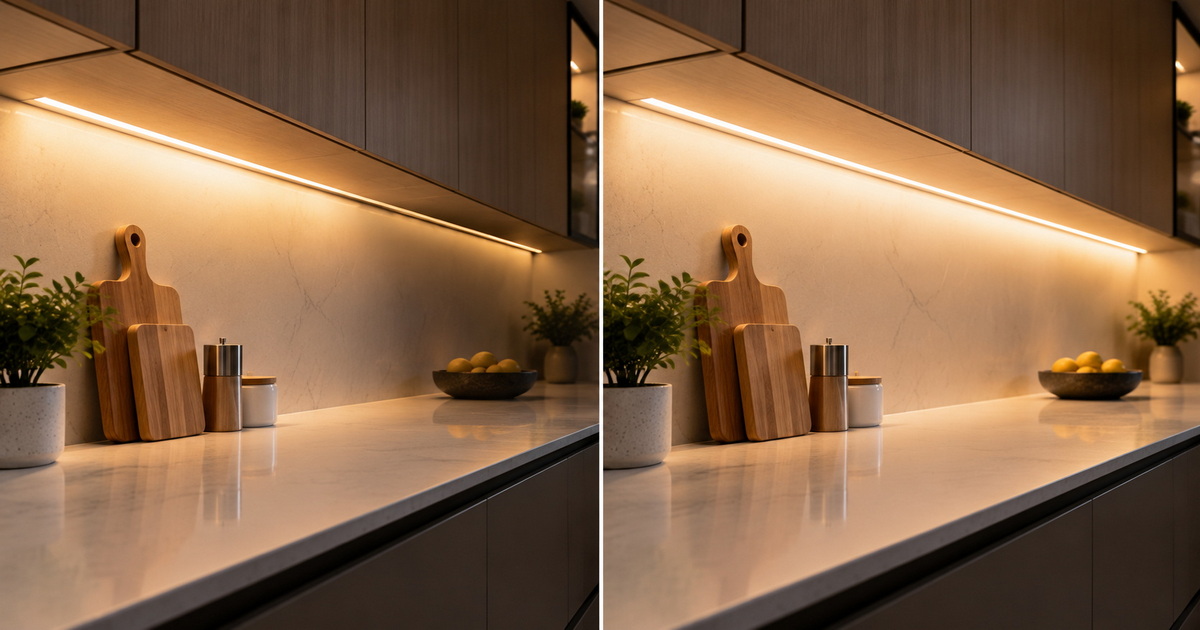

Sections farther from the connection receive power through a longer conductive path. Meanwhile, tracks near the input carry current for multiple downstream sections.
Consequently, a long strip powered from one end can develop a visible brightness gradient. Extending that run without reconsidering its power distribution usually makes the problem harder to manage.
Silicone encapsulation does not remove this electrical resistance. LED silicone strip lights still need an appropriate circuit design and installation layout.
A voltage drop report can reveal how electrical conditions change along a particular sample. However, its conclusions apply to the tested configuration, not automatically to every installation using the same product category.
The original report compares different strip constructions and operating conditions. Its main practical contribution is showing that voltage loss varies substantially between configurations.
For furniture buyers, three additional questions matter.
An exposed strip connected directly to a bench supply does not reproduce a complete furniture assembly.
The finished installation may include concealed cables, detachable connectors, door sensors, dimmers, and longer routes around furniture panels. Each can influence the electrical path.
Testing should therefore progress from the strip alone to the assembled lighting system.
Voltage readings do not directly establish brightness uniformity.
Local current regulation may maintain output despite some voltage loss, provided the regulating circuit remains within its operating range. Conversely, a strip can remain illuminated while producing an unacceptable visual gradient.
Electrical readings should therefore be paired with controlled light-output measurements.
Differences between samples may reflect circuit construction, electrical loading, conductive-track design, or run length—not simply whether the strip uses discrete LEDs or chip-on-board construction.
Likewise, passing a basic electrical operating threshold does not establish acceptable appearance.
For procurement decisions, the useful question is whether the complete assembly meets an agreed electrical and visual acceptance requirement.
A repeatable procedure is more useful than a single photograph or an isolated endpoint reading.
Electrical measurements should be performed by a competent person. Isolate power before changing connections, and leave mains-side work to appropriately qualified personnel.
Draw the path from the driver to the final illuminated section.
Include:
- Supply and return cables.
- Connectors and joints.
- Sensors, dimmers, and controllers.
- Branch connections.
- Strip sections and feed locations.
Record the actual cable route, including concealed detours. The return conductor also contributes to circuit resistance.
Use the intended driver and operate the system in its normal configuration.
Allow readings and appearance to stabilize. Keep ambient conditions, brightness settings, and connected loads consistent when comparing arrangements.
This prevents a cold-start observation from being mistaken for representative operating performance.

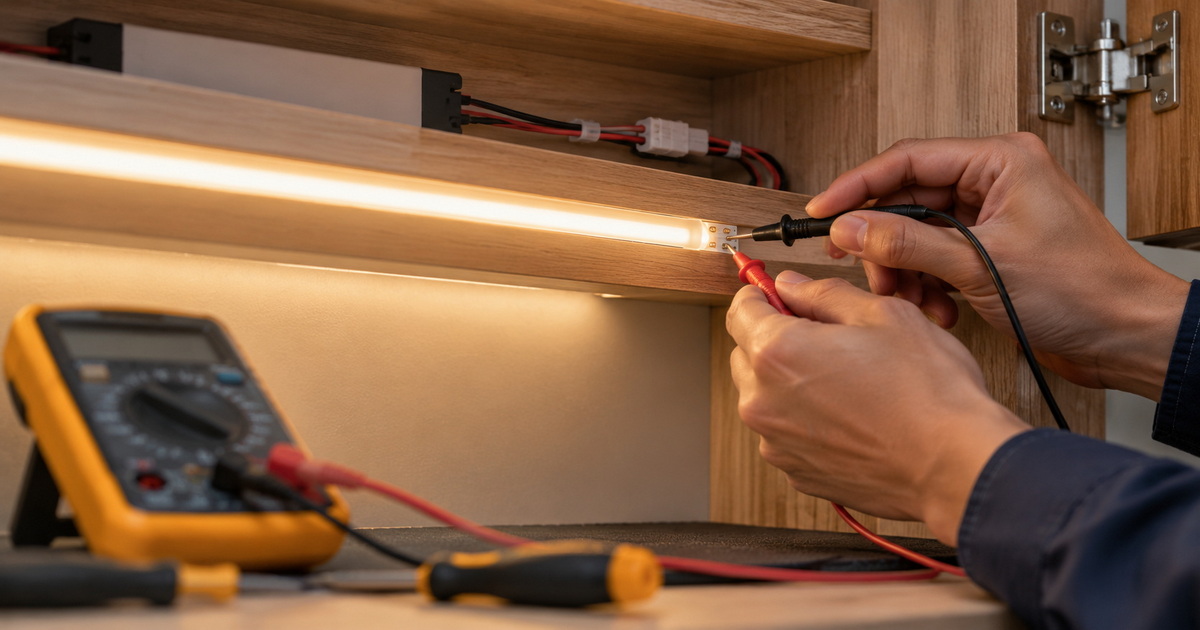

Measure the driver output under load, then measure across the strip's supply terminals at its input.
Continue at accessible intermediate locations and the far end.
A substantial difference before the strip suggests an upstream issue. A gradual reduction along it points toward strip resistance or the feeding arrangement. An abrupt change around a joint warrants closer inspection.
Use a fixed measurement distance and orientation. Control surrounding light and avoid changing the sensor position between readings.
Photographs can document appearance, but automatic exposure and white balance may conceal or exaggerate differences.
For contractual acceptance, use a defined measurement method rather than relying on images alone.
Replace a suspect connector, revise a cable route, or change the feed arrangement individually.
Then repeat the same measurements.
Changing several components simultaneously may improve the result without revealing the underlying cause. That makes the solution harder to reproduce across production units.
Visible symptoms help prioritize checks, but they do not establish a diagnosis by themselves.
| Observed symptom | Possible explanation | Recommended first check |
|---|---|---|
| Gradual dimming toward the far end | Loss along the strip or an unsuitable feed layout | Compare input and downstream readings |
| Entire assembly appears weak | Upstream loss, supply limitation, or control setting | Check driver output and strip input under load |
| Abrupt change after a connection | Poor contact or an unsuitable connector | Inspect and test the connection |
| Flickering during dimming | Compatibility, connection, or supply issue | Review the driver, controller, and dimmer combination |
| Uneven appearance despite similar readings | Optical positioning, reflections, or product variation | Compare mounting conditions and light output |
The table is a starting point. Confirm the cause before replacing components.
Cable selection should account for current, route length, installation conditions, and permitted voltage loss.
A larger conductor can reduce cable resistance, but suitable terminations remain essential. An otherwise adequate cable cannot compensate for a loose or poorly matched connector.
Evaluate the full path from the driver through any controls to the strip.
Instead of supplying several furniture sections through one continuous strip, consider separately fed branches.
This reduces the downstream load carried by individual strip sections and can make troubleshooting easier.
However, branches still require properly selected wiring, distribution hardware, and protection. Parallel wiring is a design approach, not permission to ignore component ratings.
Power injection introduces additional supply connections at selected locations.
It can improve uniformity by reducing how far current travels through the strip's conductive tracks. The additional cables must themselves be adequate; otherwise, the loss simply moves elsewhere.
Use an arrangement approved for the system. Do not connect separate driver outputs together unless their manufacturer explicitly permits that configuration.
A higher-voltage architecture can reduce current for equivalent power, helping control resistive losses. It does not eliminate the need for suitable cables and feed locations.
Similarly, local current regulation can improve output consistency only within its designed operating conditions.
Choose the complete architecture rather than treating a product label as a guarantee.
An overloaded or unsuitable driver may need replacement.
However, adding spare driver capacity does not inherently reduce resistance in cables, connectors, or strip tracks. Raising output voltage indiscriminately can also expose nearby sections to excessive voltage.
Locate the loss first, then select the corrective action.
The following are illustrative design situations, not documented customer projects.
A cabinet installation may cross separate units, corners, or appliance spaces. A visually continuous line does not need to be one electrically continuous run.
Plan feeds around accessible service locations and logical cabinet sections. Inspect the finished work surface as well as the strip itself, since reflections can exaggerate differences.

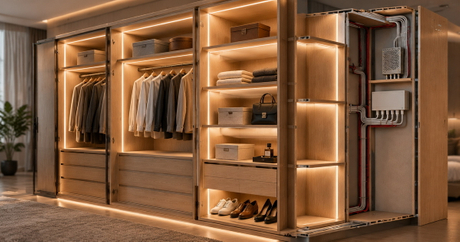

Wardrobe lighting often combines concealed wiring with door sensors and multiple illuminated sections.
Evaluate the complete assembly with all intended sections operating. Check distant compartments and confirm that connectors remain accessible after panels and storage fittings are installed.
A successful single-section sample does not validate the whole wardrobe.
Silicone protection does not, by itself, establish that an entire installation suits a bathroom location.
Strip construction, cable entries, connections, driver placement, and applicable installation requirements all need separate consideration.
A voltage drop test evaluates electrical distribution; it is not a substitute for environmental suitability or safety assessment.
An illuminated bed perimeter creates an obvious comparison between adjacent sides.
Plan the supply layout before fixing upholstery or closing structural panels. Review feed locations alongside cable protection, service access, and the intended lighting effect.
Assess the completed perimeter rather than approving one isolated section.
A useful approval package connects component selection with a repeatable assembly process.
Ask the manufacturer for:
- A wiring diagram identifying feed points and branches.
- Test records for the proposed assembled configuration.
- A documented method for assessing brightness uniformity.
- Approved connectors, cables, controls, and drivers.
- Installation and service instructions.
- A change-control process for substituted components.
Agree on acceptance criteria before approving the sample. "Looks even" is difficult to reproduce unless viewing conditions and evaluation methods are defined.
At Farwise Technology Co., Ltd., our furniture lighting range includes LED silicone strip lights and solutions for cabinets, wardrobes, bathroom cabinets, and beds. We support OEM/ODM customization covering dimensions, functions, appearance, and integrated lighting arrangements.
For your next project, send Farwise your furniture drawings, intended lighting effect, cable routes, control requirements, and installation environment. Request a coordinated lighting proposal and an assembly-level validation plan before confirming the production configuration.
Voltage loss along the strip is a common cause, especially with a long single-ended run. However, supply wiring and connections can also contribute. Compare readings at the driver, strip input, and far end before deciding what to replace.
Only if the existing supply is unsuitable or cannot support the intended load. Extra capacity alone does not correct resistance in wiring or strip tracks. Confirm that the driver maintains its intended output under load, then investigate downstream losses.
No. Silicone encapsulation and electrical distribution serve different purposes. Uniform output still depends on circuit construction, supply wiring, connections, and feed layout. Evaluate the finished silicone lighting assembly rather than assuming the enclosure resolves electrical limitations.
No. Packaging style alone does not determine voltage drop performance. Circuit architecture, conductive-track design, loading, and feeding arrangements also matter. Compare tested assemblies under equivalent conditions instead of relying on a broad product-category claim.
Some systems support dual-ended feeding from a suitable shared supply arrangement. Follow the manufacturer's wiring instructions and verify cable, connector, controller, and protection requirements. Do not assume that connecting separate supplies to opposite ends is acceptable.
It should identify the sample, circuit arrangement, operating conditions, measurement locations, and test method. For furniture lighting, it should also address the assembled wiring and controls. Separate electrical measurements from brightness observations, and state the limits of the conclusions.
1. Jason Chen, SignliteLED. "Comprehensive Test Report on Voltage Drop of LED Strip," December 15, 2025. Original article reviewed for its test structure, sample comparisons, and interpretation of endpoint measurements. Its results are not presented here as Farwise test data. [signliteled]
2. Waveform Lighting. "What Is LED Strip Voltage Drop?" Technical explanation supporting the discussion of conductive-track resistance, downstream loading, and mitigation approaches. [waveformlighting]
3. Waveform Lighting. "LED Strip Light Wire Gauge & Voltage Drop Calculator." Supports the distinction between losses in supply wiring and losses within the strip itself. [waveformlighting]
4. Diode LED. "What Is Voltage Drop?" Manufacturer guidance supporting the discussion of cable selection, connected load, and tested maximum runs. Its product-specific limits are not treated as universal requirements. [diodeled]
5. Diode LED. "Solid Color Tape Light Installation Guide." Installation guidance supporting consideration of the driver-to-fixture wiring path, intermediate controls, conductor suitability, and installation environment. [diodeled]
