Technical Specifications
Parameter | Specification |

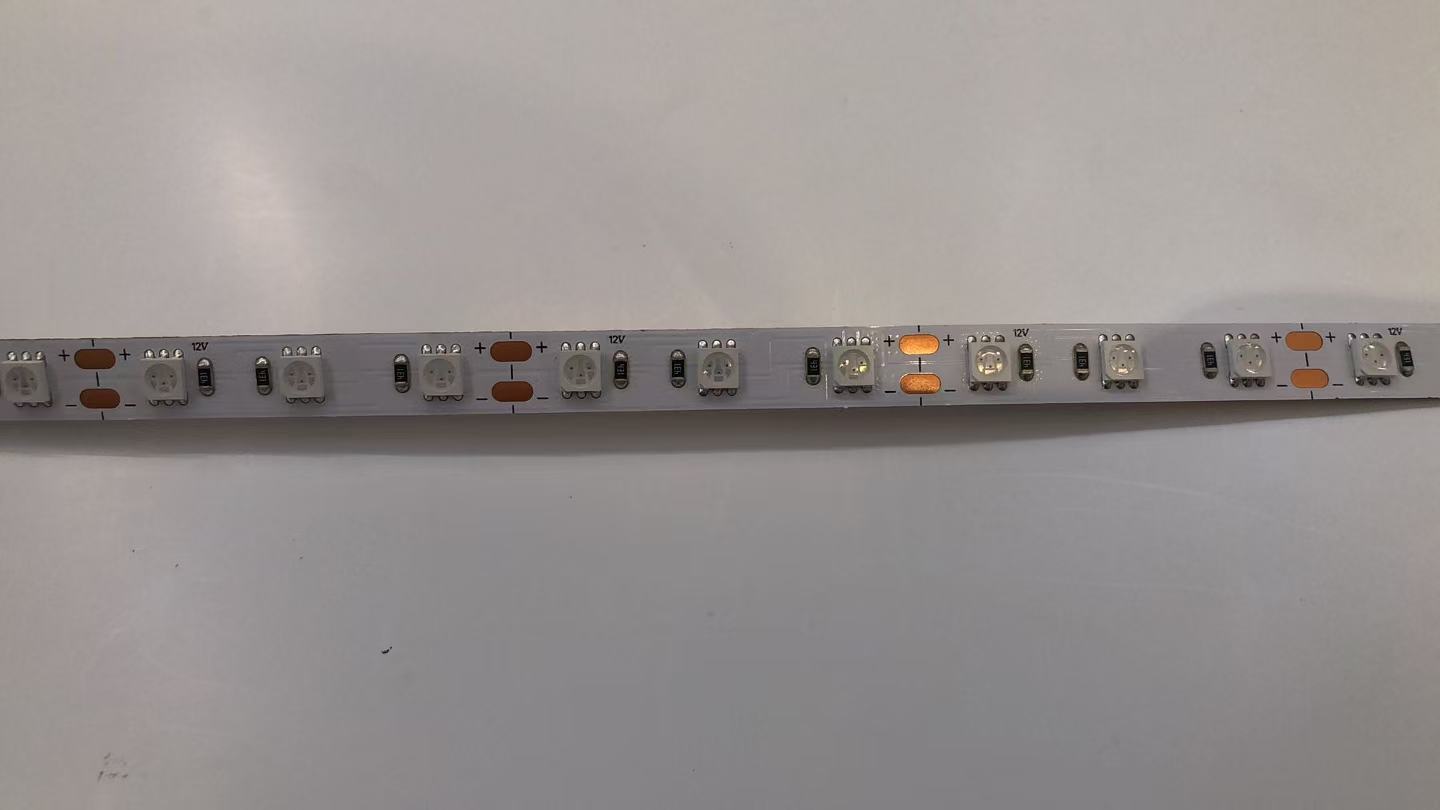

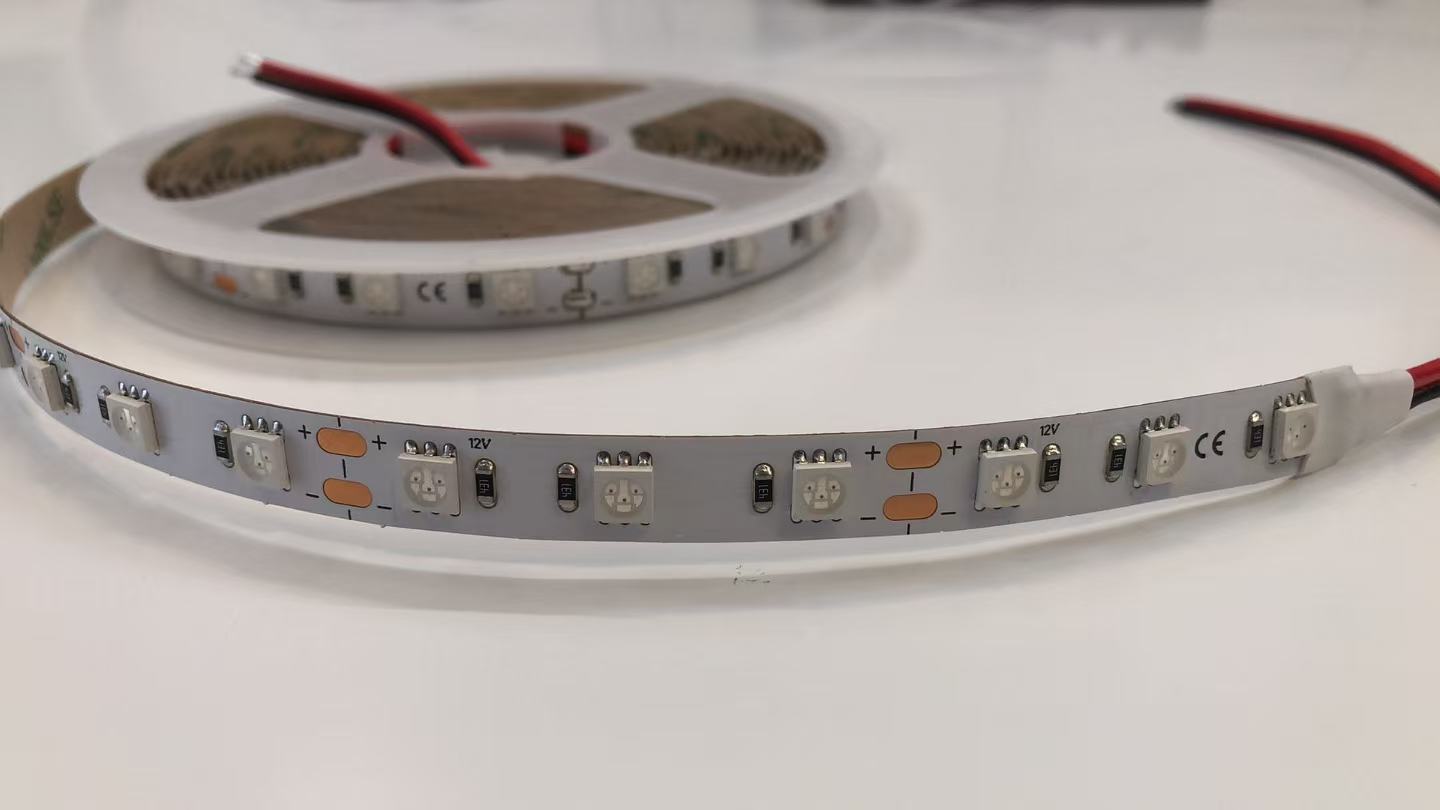

LED Model | SMD 5050 Near-Infrared (NIR) LED |
Peak Wavelength | 850nm (±5nm) |
Therapeutic Function | Collagen Boosting, Deep Repair, Anti-Inflammatory |
Input Voltage | DC 12V / DC 24V |
LED Density | 60 LEDs/m (High-density uniform coverage) |
Power Consumption | 14.4W/m |
Viewing Angle | 120° (Optimized for close-proximity skin therapy) |
PCB Width | 10mm (Customizable: 8mm / 12mm / 15mm) |
Lifespan | > 50,000 Hours (Low light degradation) |
Safety Standard | IEC 62471 Photobiological Safety |
Certifications | CE, RoHS, REACH |
Detailed BOM (Bill of Materials) per Meter
· LED Chip: 60 x SMD 5050 850nm NIR LEDs (Copper bracket, Gold wire, Medical-grade silicone lens)
· FPC Board: 1m x 10mm Flexible Printed Circuit (High thermal conductivity)
· Current Control: Precision SMD Resistors for stable radiant output
· Adhesive: 1m x 3M 300LSE High-Temp Double-sided Tape

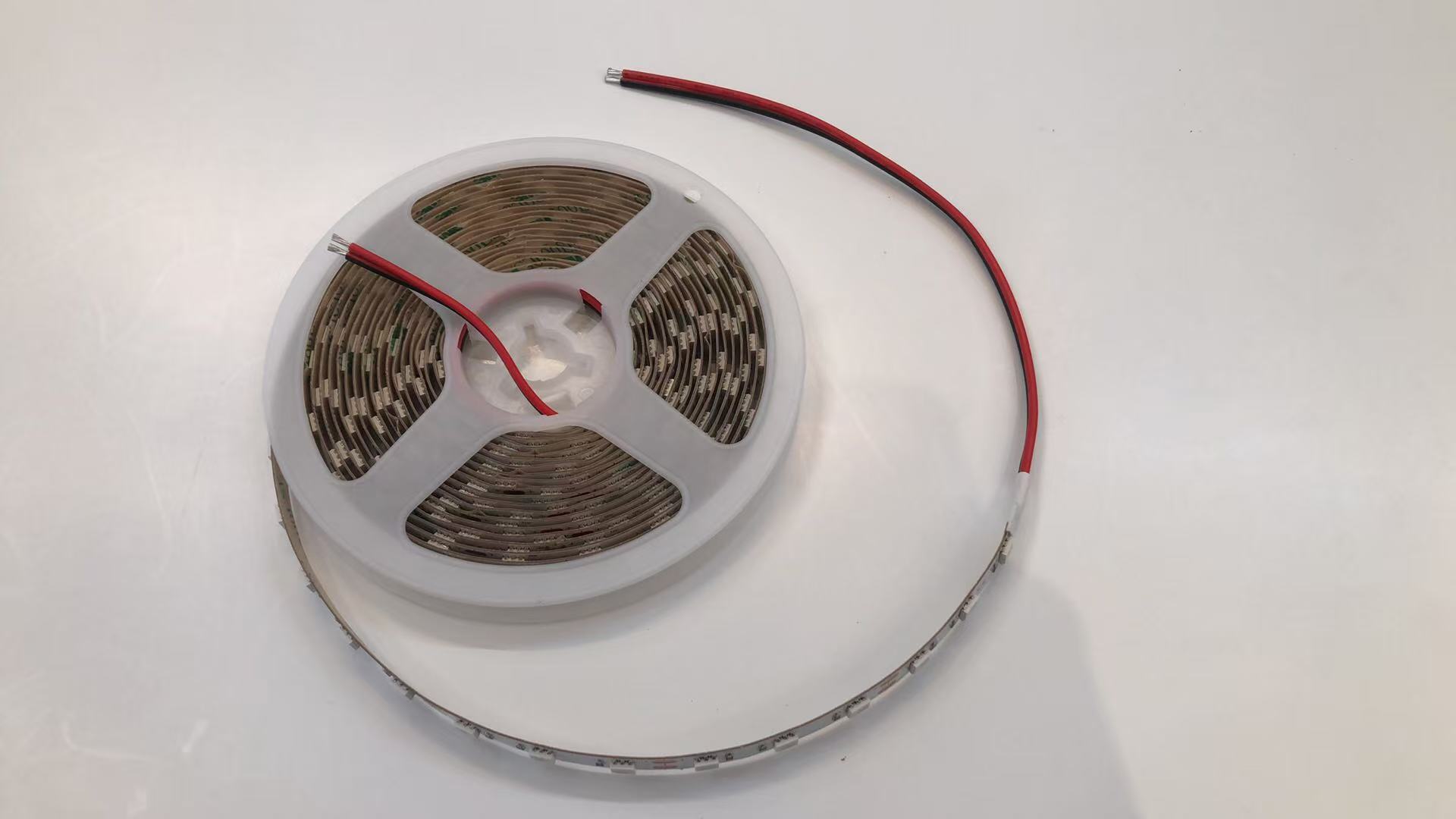

· Wiring: 22AWG Pure Copper Wire (Tin-plated, UL certified)
Primary Applications
· LED Facial Masks & Panels: Core light source for at-home and salon anti-aging and acne treatments.
· Full-Body Light Therapy Beds: High-density infrared strips for systemic skin rejuvenation and muscle recovery.
· Wearable Therapy Devices: Flexible integration into light therapy belts, neck wraps, and hair growth caps.
· Handheld Beauty Wands: Compact, high-intensity IR illumination for targeted spot treatment.
OEM & Customization Services
As a specialized LED manufacturer for the beauty industry, we offer comprehensive customization:
· Multi-Wavelength Integration: Custom 5050 3-in-1 or 4-in-1 chips (e.g., 630nm Red + 590nm Yellow + 850nm NIR).
· Custom PCB Layouts: Tailored LED spacing and dimensions to match your device's CAD design.
· Dimming & Control: Compatible with PWM dimmers and smart controllers for adjustable irradiance levels.
How 850nm Near-Infrared Light Works: The Science of Photobiomodulation
850nm Near-Infrared (NIR) light operates on a scientifically proven biological process known as Photobiomodulation (PBM). Unlike UV rays that damage the skin, or visible light that only reaches the surface, 850nm invisible light penetrates deep into the body to trigger cellular regeneration at the mitochondrial level.
Here is the step-by-step mechanism of how 850nm light promotes skin health and healing:
1. Deep Tissue Penetration
Visible red light (e.g., 630nm) is excellent for surface-level skin rejuvenation. However, 850nm NIR light has a longer wavelength, allowing it to bypass the epidermis and penetrate up to 1–5 millimeters deep into the dermis, subcutaneous tissues, and even muscle layers. This makes it highly effective for deep-tissue repair and systemic benefits.
2. Mitochondrial Activation (The Cellular Engine)
Once inside the cells, the 850nm photons are absorbed by a specific enzyme called Cytochrome C Oxidase (CCO), located in the mitochondria (the powerhouse of the cell). In stressed or aging cells, nitric oxide can bind to CCO, blocking cellular respiration. 850nm light helps displace this nitric oxide, "rebooting" the mitochondria's energy production.
3. ATP Production Boost
With the mitochondria operating at optimal capacity, the cell produces a significant increase in Adenosine Triphosphate (ATP). ATP is the fundamental energy currency of the cell. More ATP means cells have the extra energy they need to perform regenerative functions, repair damage, and survive.
4. Biological Responses & Skin Benefits
The surge in cellular energy triggers a cascade of secondary healing and anti-aging effects:
Collagen & Elastin Synthesis: Activates fibroblasts to produce new collagen, reducing fine lines and improving skin elasticity.
Reduced Inflammation: Decreases oxidative stress and inflammatory markers, making it ideal for acne, rosacea, and post-procedure recovery.
Enhanced Microcirculation: Promotes the formation of new capillaries (angiogenesis), delivering more oxygen and nutrients to the skin.
Accelerated Healing: Speeds up tissue repair and wound healing by stimulating cellular turnover.
